2. Settings

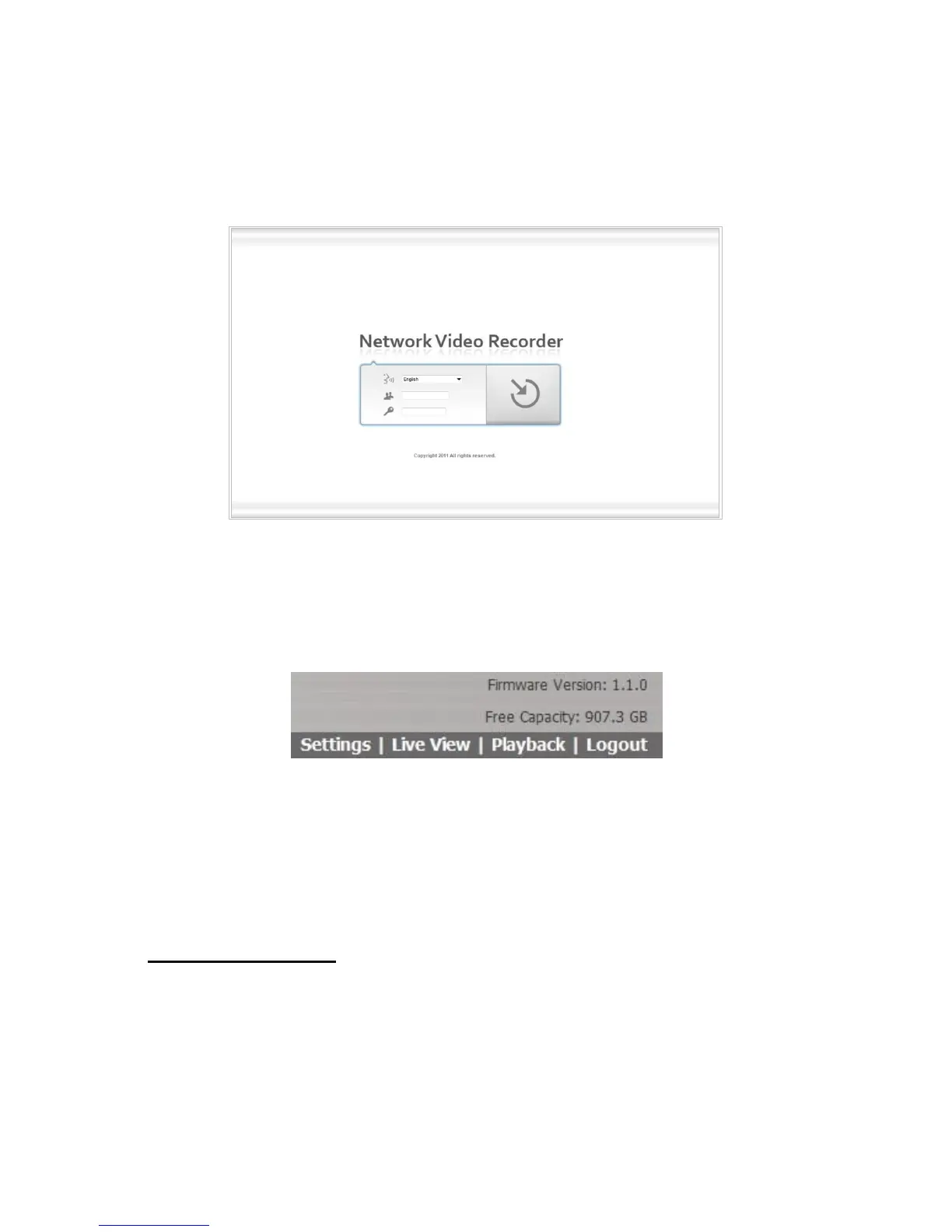

After setting up the unit, log into the DVR by entering its IP address in the
browser (Internet Explorer 7 and later). When connecting, choose your
language, enter the username and password, and then click the login icon.
There are four main menu categories in this DVR’s GUI: Settings, Live View,
Playback, and Logout. The shortcut buttons to these functions and their
submenus will be shown on the top of the page. The current firmware version
and free storage capacity are shown above the function list.
2.1 Camera Setup
2.1.1 Add Cameras by Camera Search
The function enables the user to automatically search and add cameras in the
same network. There are two search mechanisms, one is UPnP, another is the
camera search tool. Before searching UPnP cameras, make sure that the
cameras possess UPnP functionality.
1. Open Internet Explorer and log into the unit.
2. Click Settings/IP Camera/Camera Settings.
3. Click the Camera Search tab.
