7800 MultiFrame Manual
7812DCDA2Q-HD (-AA, –AES4) Dual Path HDTV Down-converter
Page 12 Revision 1.0
4. STATUS LEDS
4.1. MODULE STATUS LEDS –HD, -AA, AND –AES4 VERSIONS

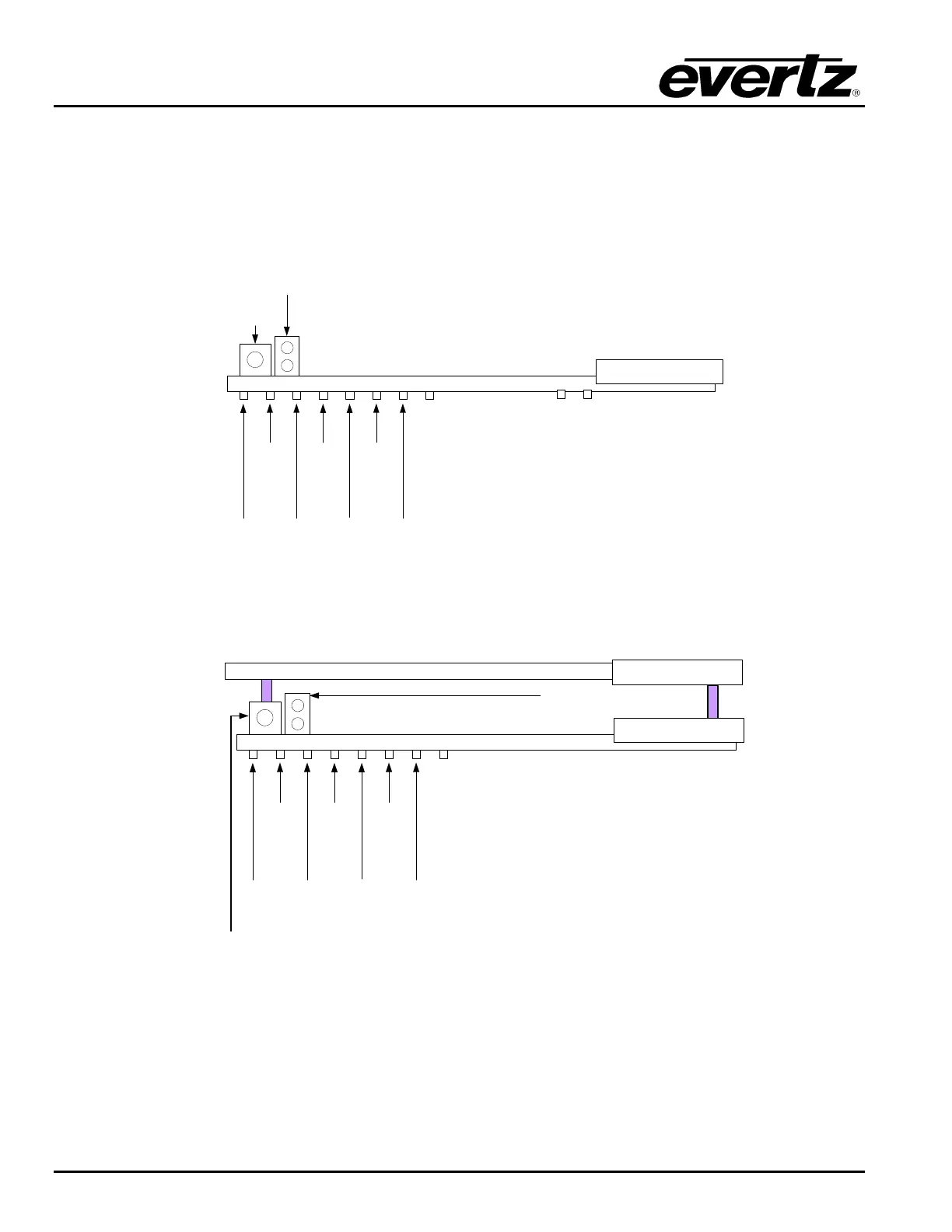

Figure 4-1 through Figure 4-3 depicts the status LEDs for the 7812DCDA2Q-HD, 7812DCDA2Q-HD-AA,
and 7812DCDA2Q-HD-AES4 modules.
7812DCDA2Q-HD
Shaft
Encoder
(not used)
Module
Status
REF
PRESENT
PGM INA
PRESENT
PGM INB
PRESENT
PATH A
GRP 1
PRESENT
PATH A
GRP 2
PRESENT
PATH B
GRP 1
PRESENT
PATH B
GRP 2
PRESENT
Figure 4-1: Status LEDs for 7812DCDA2Q-HD
7812DCDA2Q-HD-AA
Shaft
Encoder
(not used)
Module
Status
REF
PRESENT
PGM A
PRESENT
PGM B
PRESENT
PATH A
GRP 1
PRESENT
PATH A
GRP 2
PRESENT
PATH B
GRP 1
PRESENT
PATH B
GRP 2
PRESENT
7812DCDA2Q-HD-AA
Figure 4-2: Status LEDs for 7812DCDA2AQ-HD-AA
