7800 MultiFrame Manual
7812DCDA2Q-HD (-AA, –AES4) Dual Path HDTV Down-converter
Page 50 Revision 1.0
7.7. UTILITIES
The Utilities Control tab is used to manage card presets. Within this control tab, you may recall a card
preset, store a current card configuration to a specific preset and enable/disable the AUTO RECALL

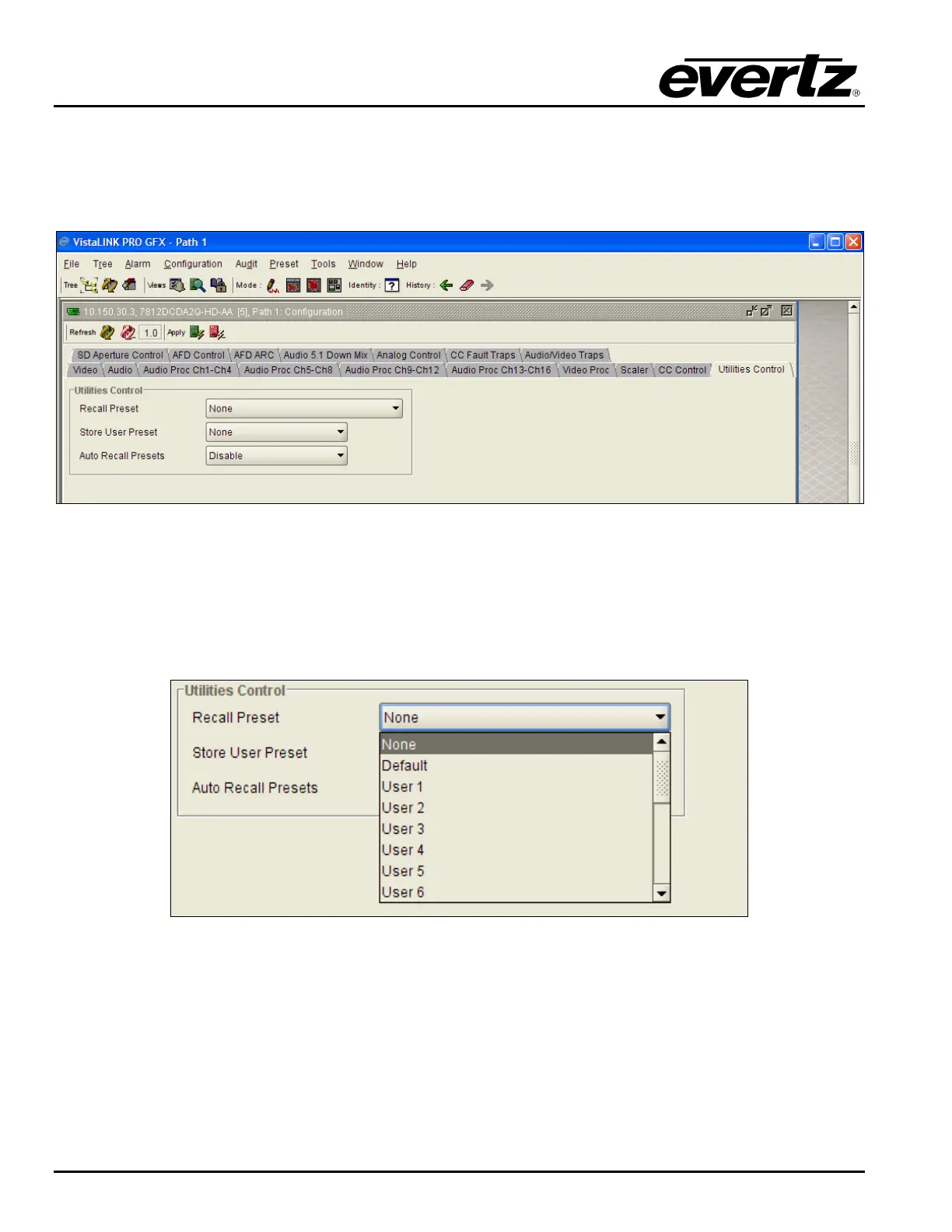

PRESETS functionality. The VLPRO interface for the Utilities control tab is shown in Figure 7-33.
Figure 7-33: Utilities Control Screen
7.7.1. Recalling Configurations from the User Presets
The Recall Preset control is used to initiate a recall of a card configuration from one of the user presets.
There are 10 user presets to recall. The VLPRO interface for the Recall Preset control is shown in Figure
7-34.
Figure 7-34: Recall Preset Drop Down Menu
