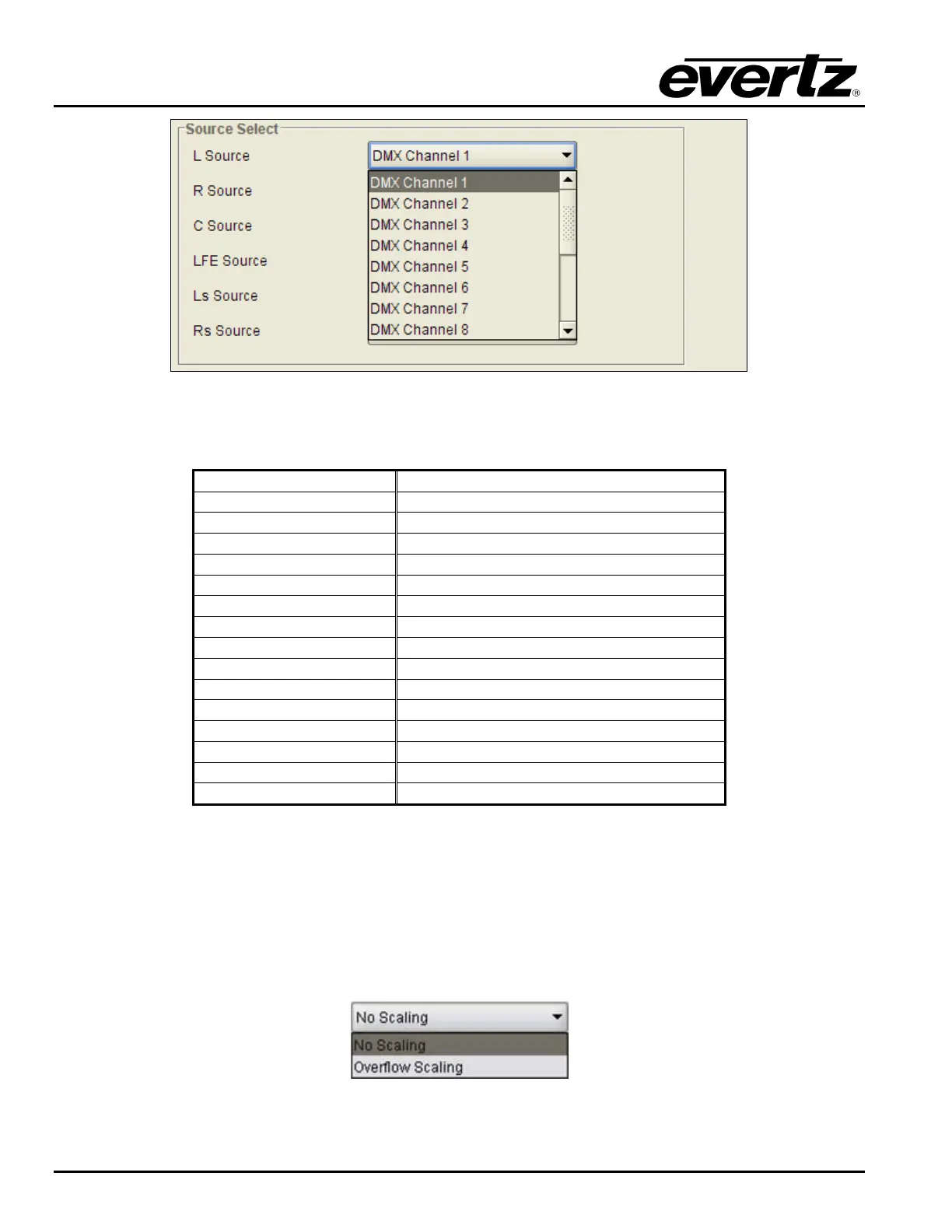

Figure 7-45: L Source Drop Down
The full list of available sources is as follows:
DMX Channel 1
Select Channel 1 for the L Source
DMX Channel 2
Select Channel 2 for the L Source
DMX Channel 3
Select Channel 3 for the L Source
DMX Channel 4
Select Channel 4 for the L Source
DMX Channel 5
Select Channel 5 for the L Source
DMX Channel 6
Select Channel 6 for the L Source
DMX Channel 7
Select Channel 7 for the L Source
DMX Channel 8
Select Channel 8 for the L Source
DMX Channel 9
Select Channel 9 for the L Source
DMX Channel 10
Select Channel 10 for the L Source
DMX Channel 11
Select Channel 11 for the L Source
DMX Channel 12
Select Channel 12 for the L Source
DMX Channel 13
Select Channel 13 for the L Source
DMX Channel 14
Select Channel 14 for the L Source
DMX Channel 15
Select Channel 15 for the L Source
DMX Channel 16
Select Channel 16 for the L Source
7.11.2. Setting the Output Scaling Mode
The output scaling mode controls whether the down mix matrixing is normalized or not. Select Overflow
Scaling from the drop down menu to normalize the matrix coefficients. Normalization of matrix coefficients
will avoid any possibility of overflow, but it tends to lower the loudness level when compared against the
original 5.1 input. If no normalization is applied, the stereo down-mix usually sounds at the similar levels
as the 5.1 audio input, but clipping may occur when the input sound level is close to 0dB FS. The Output
Scaling Mode drop down provides the following options:
