7.10.1. Setting the AFD Select
This control enables the user to select the incoming AFD code to which a scaler response will be defined.
Use the drop down menu as shown below to select an AFD code. As each menu item is selected a
pictorial representation of the actual aspect ratio being selected is shown on the right hand side of the
screen beside the drop down menu as shown in Figure 7-40.

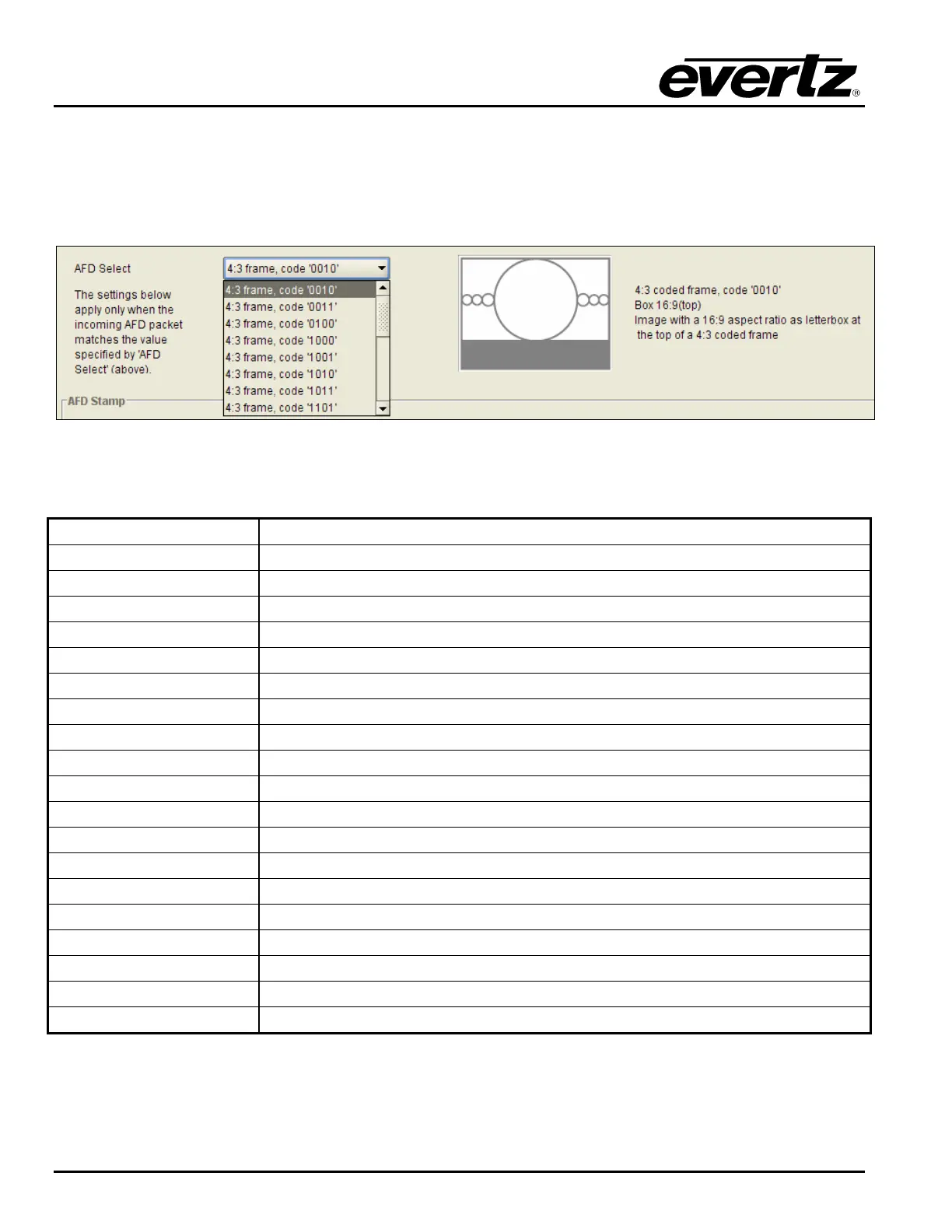

Figure 7-40: AFD Select Drop Down
The total list of available options for the AFD Select control is shown in the table below.
16:9 frame, code ‘0010’
Scaler/ARC responses will be defined for AFD code 16:9 frame, code ‘0010’
16:9 frame, code ‘0011’
Scaler/ARC responses will be defined for AFD code 16:9 frame, code ‘0011’
16:9 frame, code ‘0100’
Scaler/ARC responses will be defined for AFD code 16:9 frame, code ‘0100’
16:9 frame, code ‘1000’
Scaler/ARC responses will be defined for AFD code 16:9 frame, code ‘1000’
16:9 frame, code ‘1001’
Scaler/ARC responses will be defined for AFD code 16:9 frame, code ‘1001’
16:9 frame, code ‘1010’
Scaler/ARC responses will be defined for AFD code 16:9 frame, code ‘1010’
16:9 frame, code ‘1011’
Scaler/ARC responses will be defined for AFD code 16:9 frame, code ‘1011’
16:9 frame, code ‘1101’
Scaler/ARC responses will be defined for AFD code 16:9 frame, code ‘1101’
16:9 frame, code ‘1110’
Scaler/ARC responses will be defined for AFD code 16:9 frame, code ‘1110’
16:9 frame code ‘1111’
Scaler/ARC responses will be defined for AFD code 16:9 frame code ‘1111’
4::3 frame, code ‘0010’
Scaler/ARC responses will be defined for AFD code 4::3 frame, code ‘0010’
4:3 frame, code ‘0011’
Scaler/ARC responses will be defined for AFD code 4:3 frame, code ‘0011’
4:3 frame, code ‘0100’
Scaler/ARC responses will be defined for AFD code 4:3 frame, code ‘0100’
4:3 frame, code ‘1000’
Scaler/ARC responses will be defined for AFD code 4:3 frame, code ‘1000’
4:3 frame, code ‘1001’
Scaler/ARC responses will be defined for AFD code 4:3 frame, code ‘1001’
4:3 frame, code ‘1010’
Scaler/ARC responses will be defined for AFD code 4:3 frame, code ‘1010’
4:3 frame, code ‘1011’
Scaler/ARC responses will be defined for AFD code 4:3 frame, code ‘1011’
4:3 frame code ‘1101’
Scaler/ARC responses will be defined for AFD code 4:3 frame code ‘1101’
4:3 frame code ‘1110’
Scaler/ARC responses will be defined for AFD code 4:3 frame code ‘1110’
4:3 frame code ‘1111’
Scaler/ARC responses will be defined for AFD code 4:3 frame code ‘1111’
