7.3.2. Gain Adjust X
The Gain Adjust X control enables the user to set the value of the gain from the selected source. The user
can adjust the gain of the selected source by moving the associate slider control left to decrease the value
or right to increase the value. The value range for the Gain Adjust X control is -24 dB to +24 dB. Gain is
incremented or decremented 0.1 dB steps. The VLPRO interface for the Gain Adjust X control is shown
in Figure 7-20.

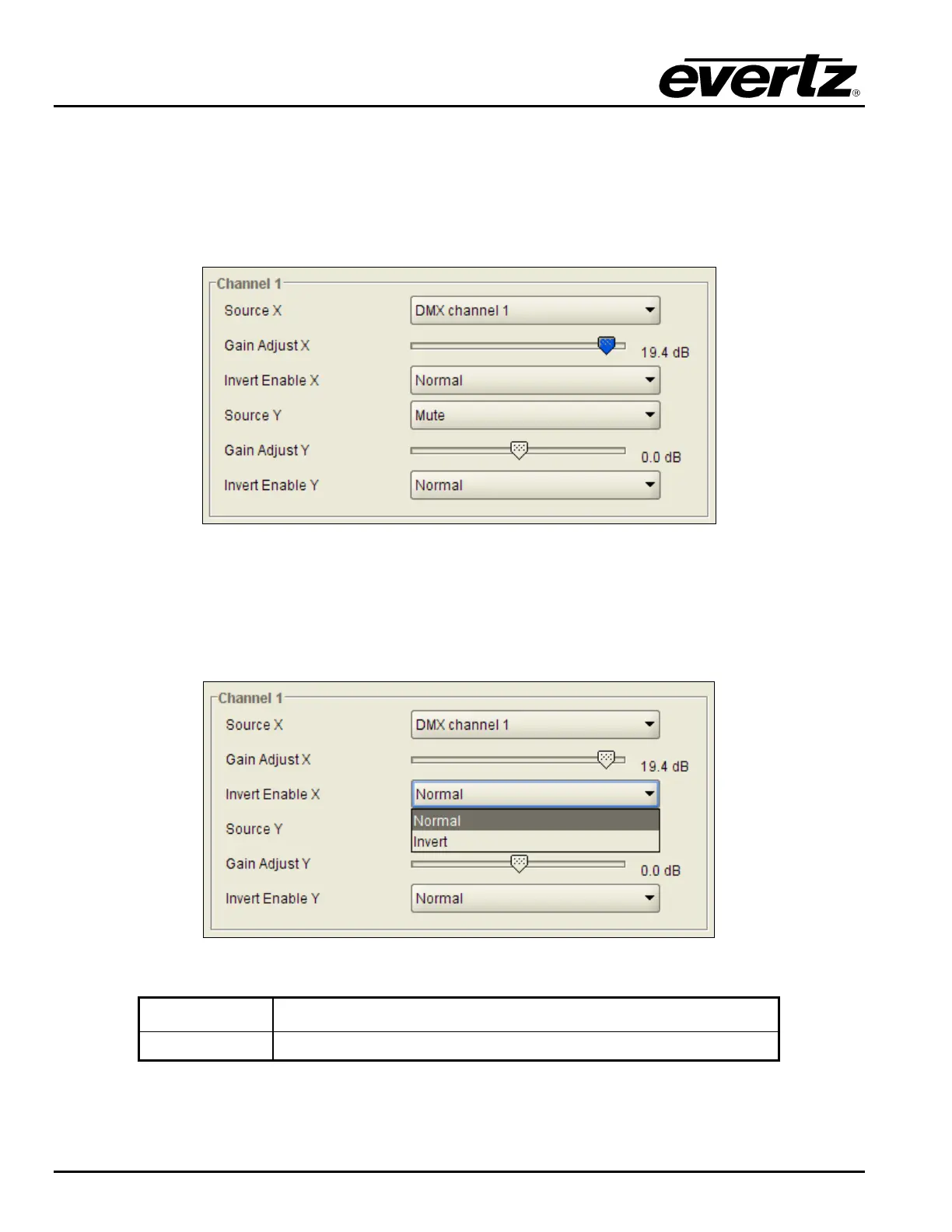

Figure 7-20: Gain Adjust X Slider
7.3.3. Invert Enable X
This control enables the user to invert the phase or pass the selected audio channels. The VLPRO
interface for the Invert X Enable is shown in Figure 7-21.
Figure 7-21: Invert Enable X Drop Down Menu
Normal
Pass the audio channel through with no processing.
Invert
Invert the phase of the audio channel.
