7.1.6. Video Monitor
The Video Monitor section enables the user to view the status of video related parameters. The VLPRO

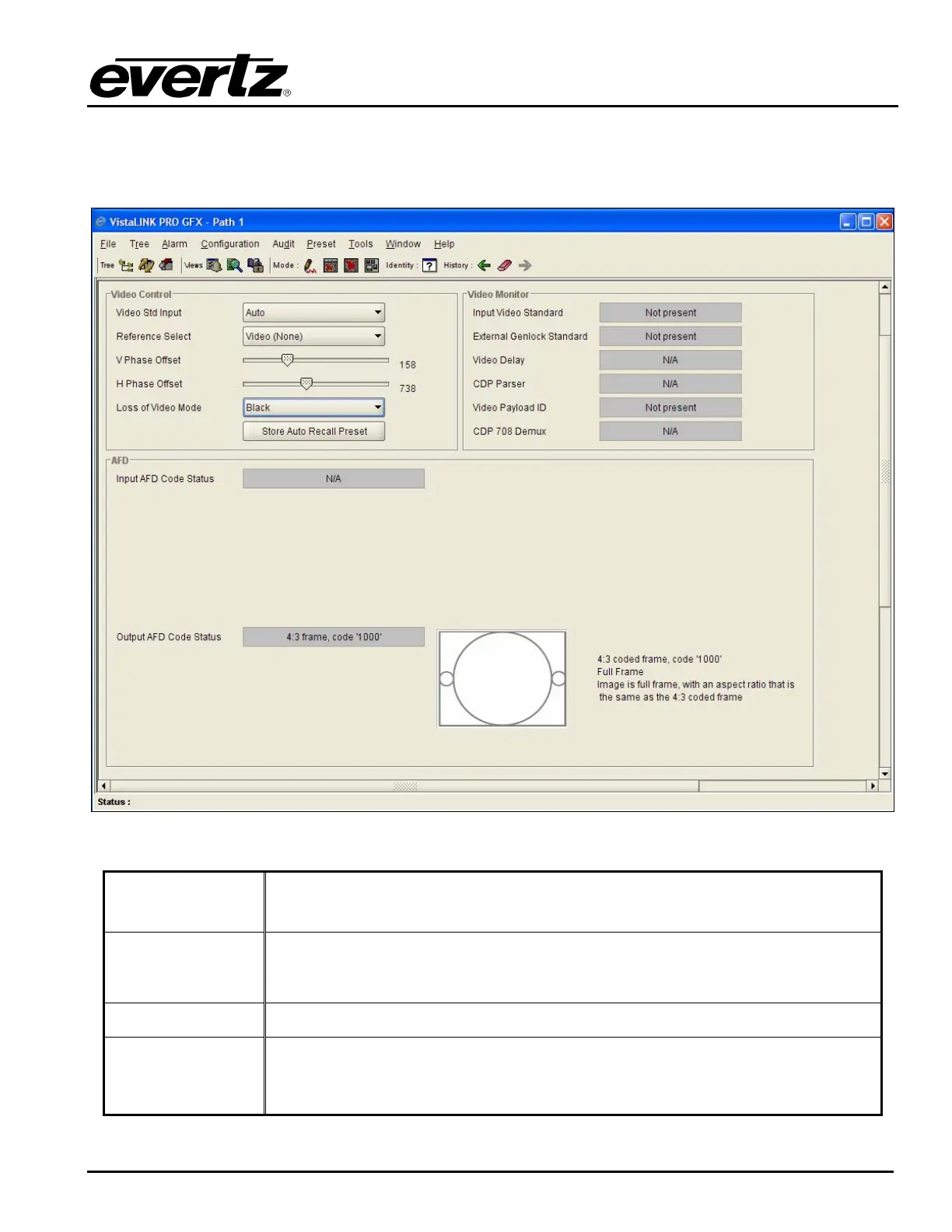

interface for the Video Monitor appears as shown in Figure 7-8.
Figure 7-8: Video Monitor VLPRO Screen
Video Input
Standard
The Input Video Standard monitor reports if a valid video signal has been
presented to the card and it indicates what standard has been detected when it
is present.
External Genlock
Standard
The External Genlock Standard monitor reports if a valid video reference has
been supplied to the module. When present, this monitor indicates the
reference standard that is detected.
Video Delay The Video Delay monitor reports video delay through the card in ms.
CDP Parser
The CDP Parser monitor displays the status of Closed Caption reading
process and indicates if any syntax errors are encountered within inbound CDP
packets.
