7800 MultiFrame Manual
7812DCDA2Q-HD (-AA, –AES4) Dual Path HDTV Down-converter
Page 26 Revision 1.0
Video Payload ID
The Video Payload ID monitor looks for valid video payload ID packets within
the inbound video signal. If present, the video payload ID packets will be
decoded and the standard that the ANC data packets indicate will be
presented within the Video Payload ID monitor section.

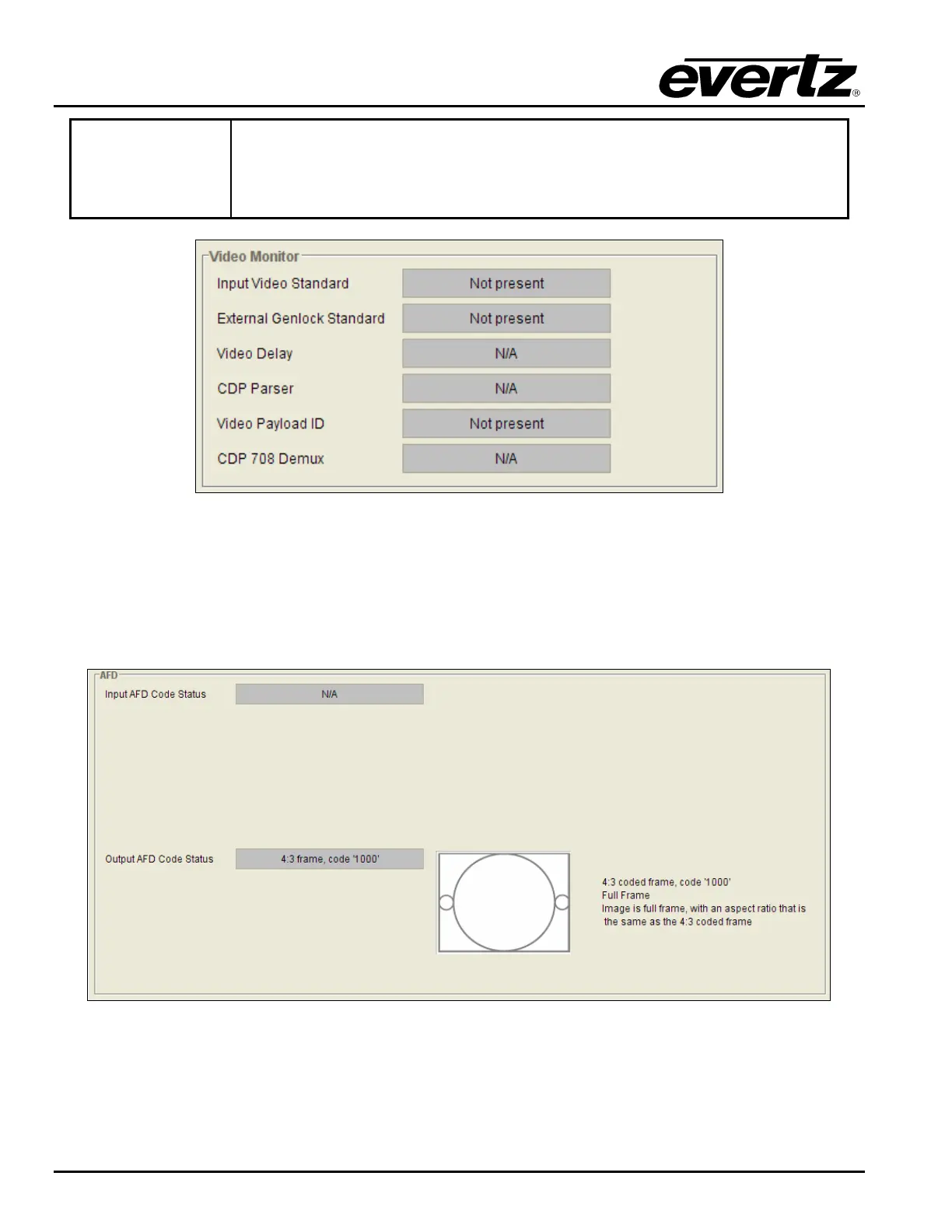

Figure 7-9: Video Monitor Features
7.1.7. Output AFD Code Status
The AFD code being stamped on the output of the card (if applicable) will be presented and a pictorial
representation of what that AFD code means will be presented beside the numerical AFD value. If no AFD
information is present on the outgoing video signal, N/A will be displayed. The VLPRO interface for the
Output AFD Code Status is shown in Figure 7-10.
Figure 7-10: AFD Controls
