7.3.4. Source Y
The Source Y control enables the user to route one of the 16 input audio channels to the Y input of the
Channel 1 mixer. The user can select the channel source by selecting the desired channel from the

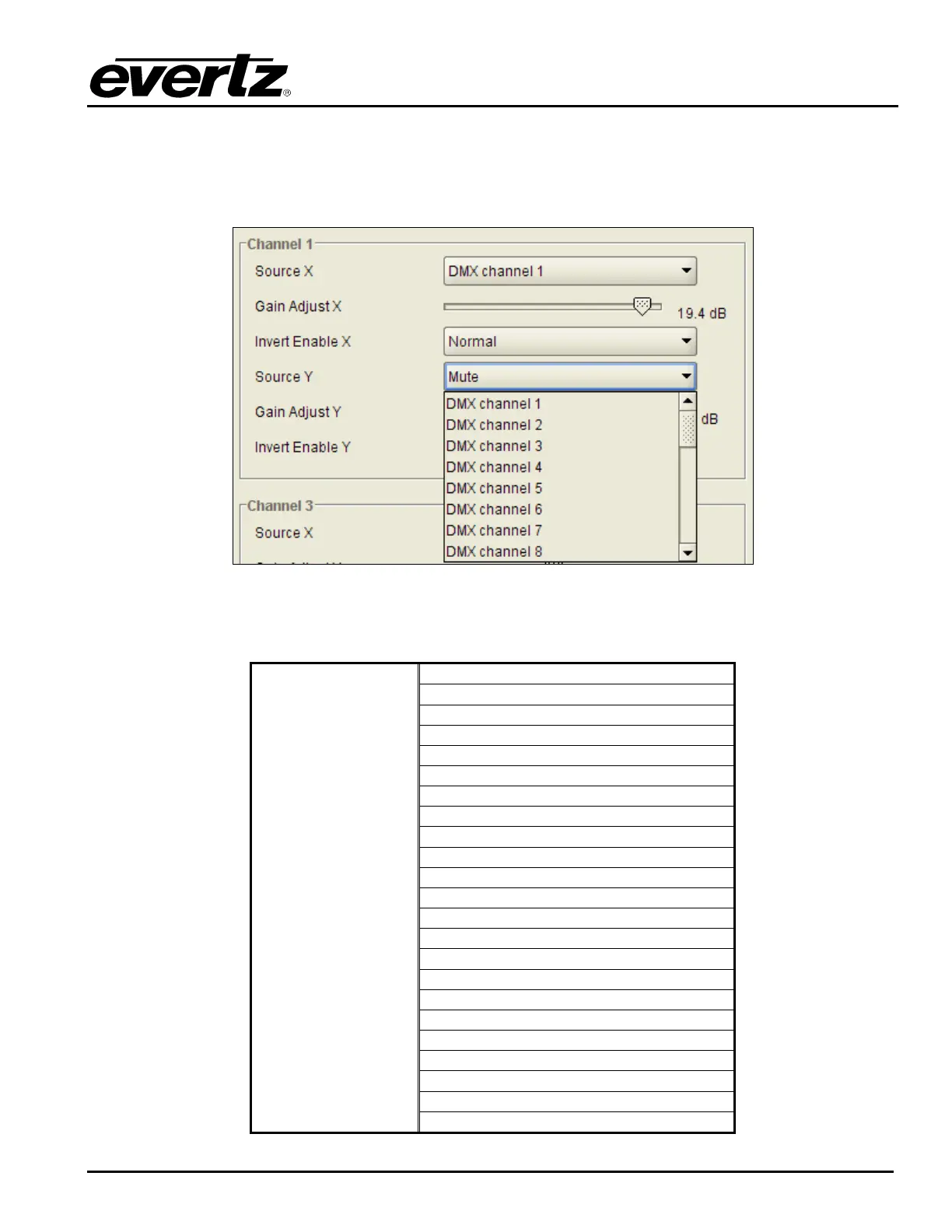

Source Y drop down menu. The VLPRO interface for the Source Y control is shown in Figure 7-22.
Figure 7-22: Source Y Drop Down Menu
The full set of available channels is listed below.
DMX Channel 1
DMX Channel 2
DMX Channel 3
DMX Channel 4
DMX Channel 5
DMX Channel 6
DMX Channel 7
DMX Channel 8
DMX Channel 9
DMX Channel 10
DMX Channel 11
DMX Channel 12
DMX Channel 13
DMX Channel 14
DMX Channel 15
DMX Channel 16
Mono mix DMX channels 1 and 2
Mono mix DMX channels 3 and 4
Mono mix DMX channels 5 and 6
Mono mix DMX channels 7 and 8
Mono mix DMX channels 9 and 10
Mono mix DMX channels 11 and 12
Source Y Input
Mono mix DMX channels 13 and 14
