7800 MultiFrame Manual
7812DCDA2Q-HD (-AA, –AES4) Dual Path HDTV Down-converter
Revision 1.0 Page 33
7.3.1. SOURCE X
The Source X control enables the user to route one of the 16 input audio channels to the X input of the
Channel 1 mixer. The user can select the channel source by selecting the desired channel from the
Source X drop down. The VLPRO interface for the Source X control is shown in Figure 7-19.

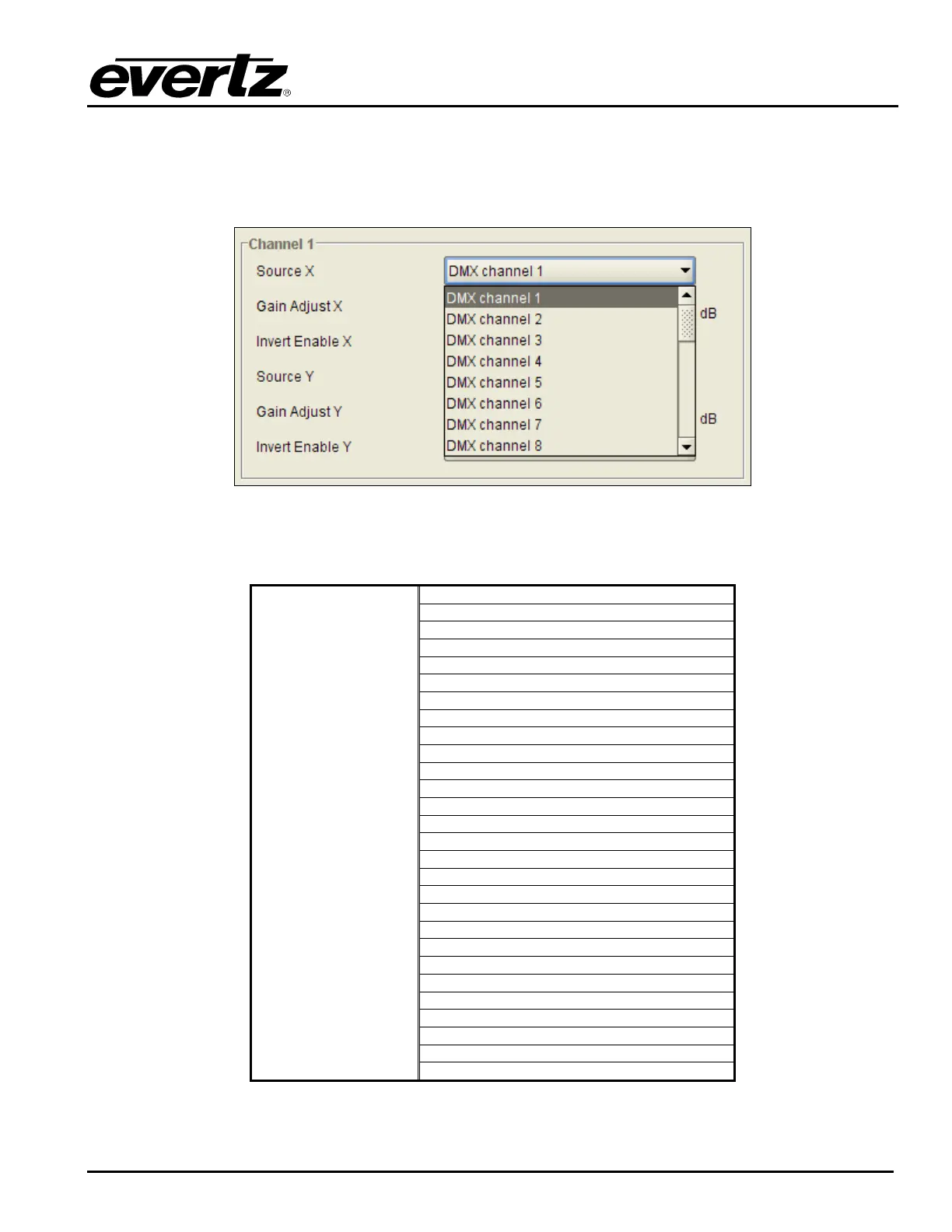

Figure 7-19: Source X Control Drop Down Menu
The full set of available channels is listed below.
DMX Channel 1
DMX Channel 2
DMX Channel 3
DMX Channel 4
DMX Channel 5
DMX Channel 6
DMX Channel 7
DMX Channel 8
DMX Channel 9
DMX Channel 10
DMX Channel 11
DMX Channel 12
DMX Channel 13
DMX Channel 14
DMX Channel 15
DMX Channel 16
Mono mix DMX channels 1 and 2
Mono mix DMX channels 3 and 4
Mono mix DMX channels 5 and 6
Mono mix DMX channels 7 and 8
Mono mix DMX channels 9 and 10
Mono mix DMX channels 11 and 12
Mono mix DMX channels 13 and 14
Mono mix DMX channels 15 and 16
Mute
Down Mix L
Down Mix R
Source X Input
Down Mix Mono
