7800 MultiFrame Manual
7812DCDA2Q-HD (-AA, –AES4) Dual Path HDTV Down-converter
Revision 1.0 Page 59
7.10.2. Setting the AFD Stamp
This control enables the user to specify the outgoing AFD code. This control is enabled only when the
AFD Stamp Source is set to User AFD Stamp. Use the AFD Stamp drop down menu to select the
appropriate out-bound AFD code. There are 16 AFD codes to choose from. As each AFD code is
selected, a pictorial representation of what that AFD code means is displayed in the right hand side of the
screen as shown in Figure 7-41 below.

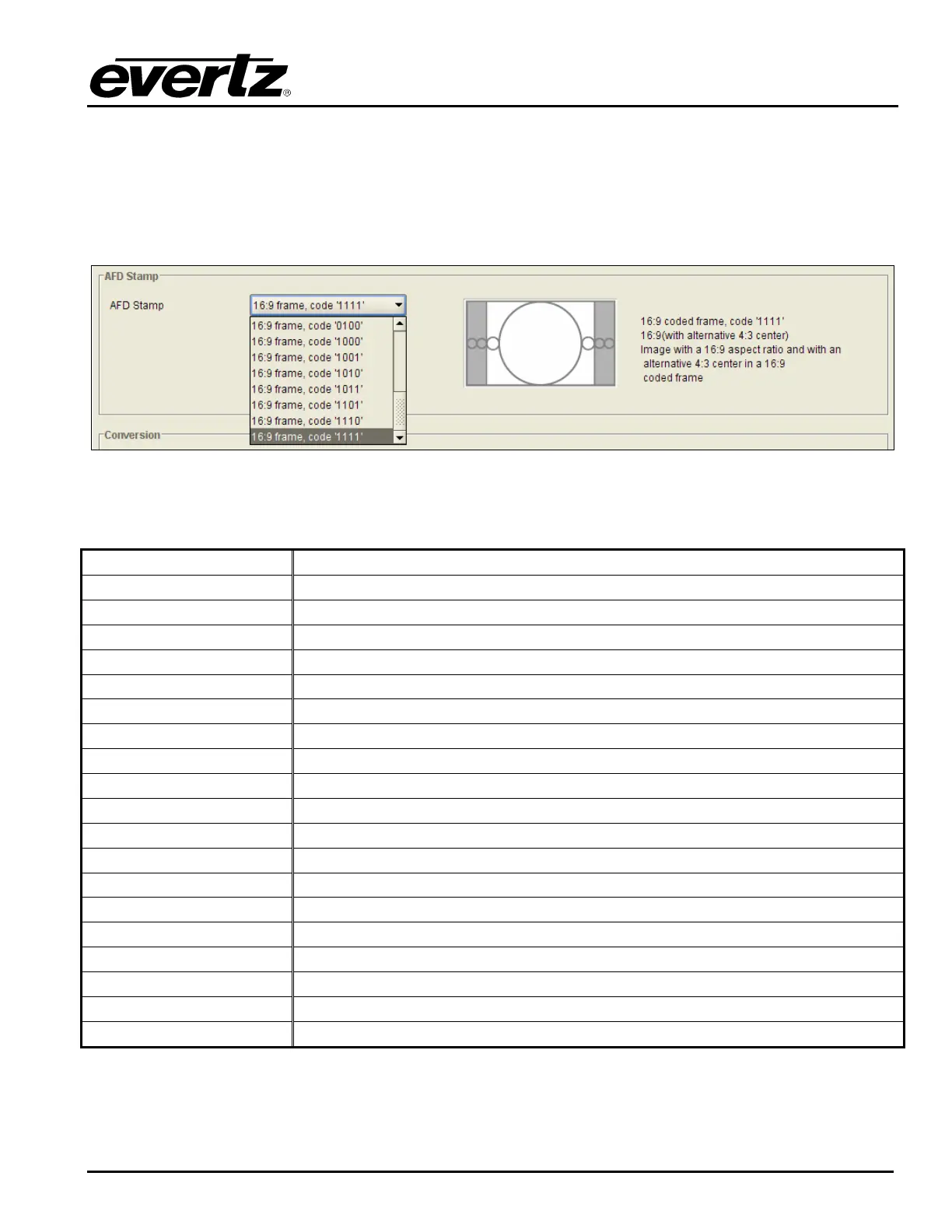

Figure 7-41: AFD Stamp Drop Down Menu
The complete set of options available for the AFD Stamp Control is listed in the table below.
16:9 frame, code ‘0010’
AFD code 16:9 frame, code ‘0010’ will be inserted into the outgoing video.
16:9 frame, code ‘0011’
AFD code 16:9 frame, code ‘0011’ will be inserted into the outgoing video.
16:9 frame, code ‘0100’
AFD code 16:9 frame, code ‘0100’ will be inserted into the outgoing video.
16:9 frame, code ‘1000’
AFD code 16:9 frame, code ‘1000’ will be inserted into the outgoing video.
16:9 frame, code ‘1001’
AFD code 16:9 frame, code ‘1001’ will be inserted into the outgoing video.
16:9 frame, code ‘1010’
AFD code 16:9 frame, code ‘1010’ will be inserted into the outgoing video.
16:9 frame, code ‘1011’
AFD code 16:9 frame, code ‘1011’ will be inserted into the outgoing video.
16:9 frame, code ‘1101’
AFD code 16:9 frame, code ‘1101’ will be inserted into the outgoing video.
16:9 frame, code ‘1110’
AFD code 16:9 frame, code ‘1110’ will be inserted into the outgoing video.
16:9 frame code ‘1111’
AFD code 16:9 frame code ‘1111’ will be inserted into the outgoing video.
4::3 frame, code ‘0010’
AFD code 4::3 frame, code ‘0010’ will be inserted into the outgoing video.
4:3 frame, code ‘0011’
AFD code 4:3 frame, code ‘0011’ will be inserted into the outgoing video.
4:3 frame, code ‘0100’
AFD code 4:3 frame, code ‘0100’ will be inserted into the outgoing video.
4:3 frame, code ‘1000’
AFD code 4:3 frame, code ‘1000’ will be inserted into the outgoing video.
4:3 frame, code ‘1001’
AFD code 4:3 frame, code ‘1001’ will be inserted into the outgoing video.
4:3 frame, code ‘1010’
AFD code 4:3 frame, code ‘1010’ will be inserted into the outgoing video.
4:3 frame, code ‘1011’
AFD code 4:3 frame, code ‘1011’ will be inserted into the outgoing video.
4:3 frame code ‘1101’
AFD code 4:3 frame code ‘1101’ will be inserted into the outgoing video.
4:3 frame code ‘1110’
AFD code 4:3 frame code ‘1110’ will be inserted into the outgoing video.
4:3 frame code ‘1111’
AFD code 4:3 frame code ‘1111’ will be inserted into the outgoing video.
