7800 MultiFrame Manual
7812DCDA2Q-HD (-AA, –AES4) Dual Path HDTV Down-converter
Revision 1.0 Page 67
LR_lev Ranges from 1.000 to –1.000 in increments of .001 increments.
C_lev Ranges from 1.000 to –1.000 in increments of .001 increments.
Ls_lev_L Ranges from 1.000 to –1.000 in increments of .001 increments.
Rs_lev_L Ranges from 1.000 to –1.000 in increments of .001 increments.
Ls_lev_R Ranges from 1.000 to –1.000 in increments of .001 increments.
Rs_lev_R Ranges from 1.000 to –1.000 in increments of .001 increments.
7.12. CONFIGURING THE ANALOG OUTPUTS
The 7812DCDA2Q-HD supports analog video out and the 7812DCDA2A-HD-AA supports analog video
and analog audio outputs. The VLPRO interface for configuring the analog video and audio outputs is
shown in Figure 7-47.

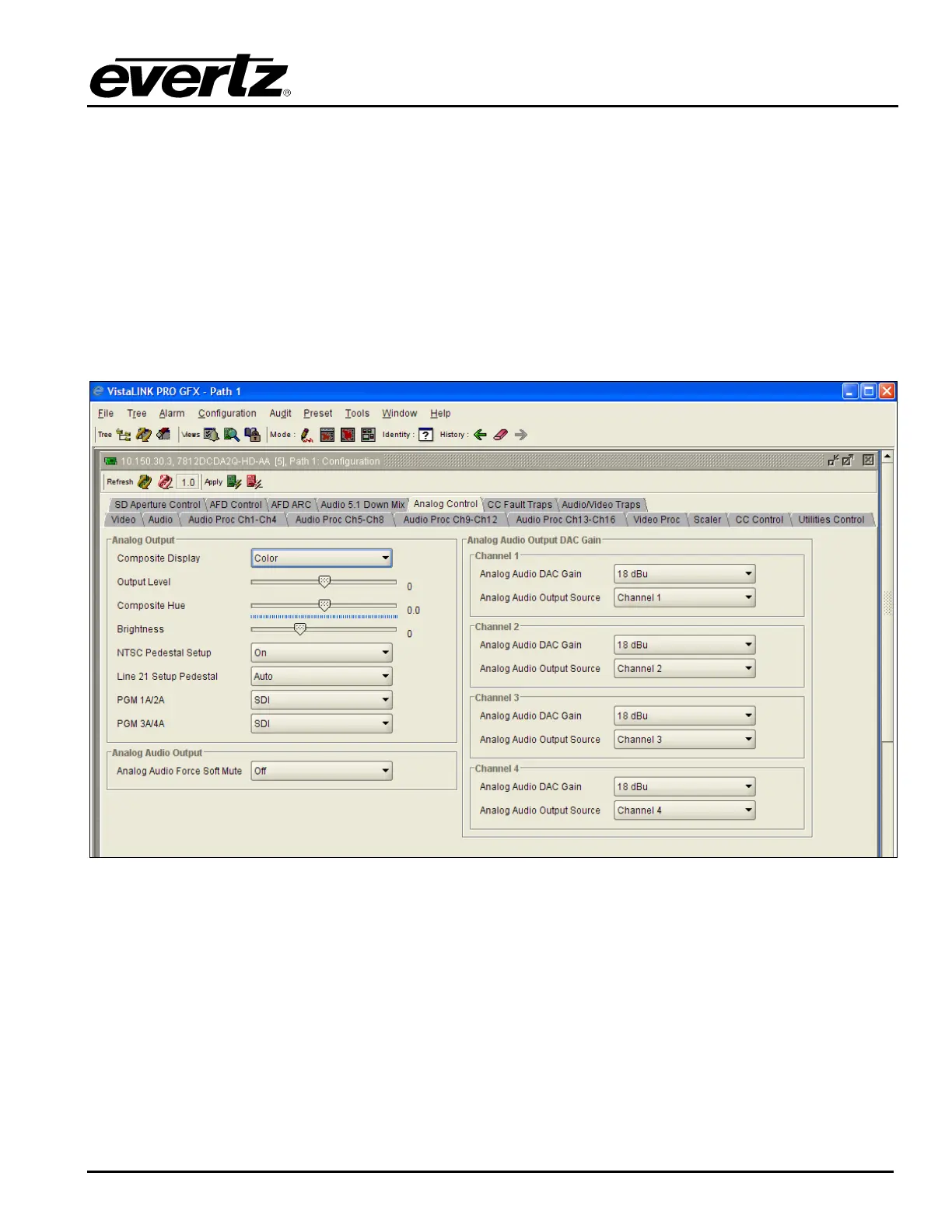

Figure 7-47: Analog Control
