Operation DEPOLOX
®
Pool
1.3
Indicating elements
System name

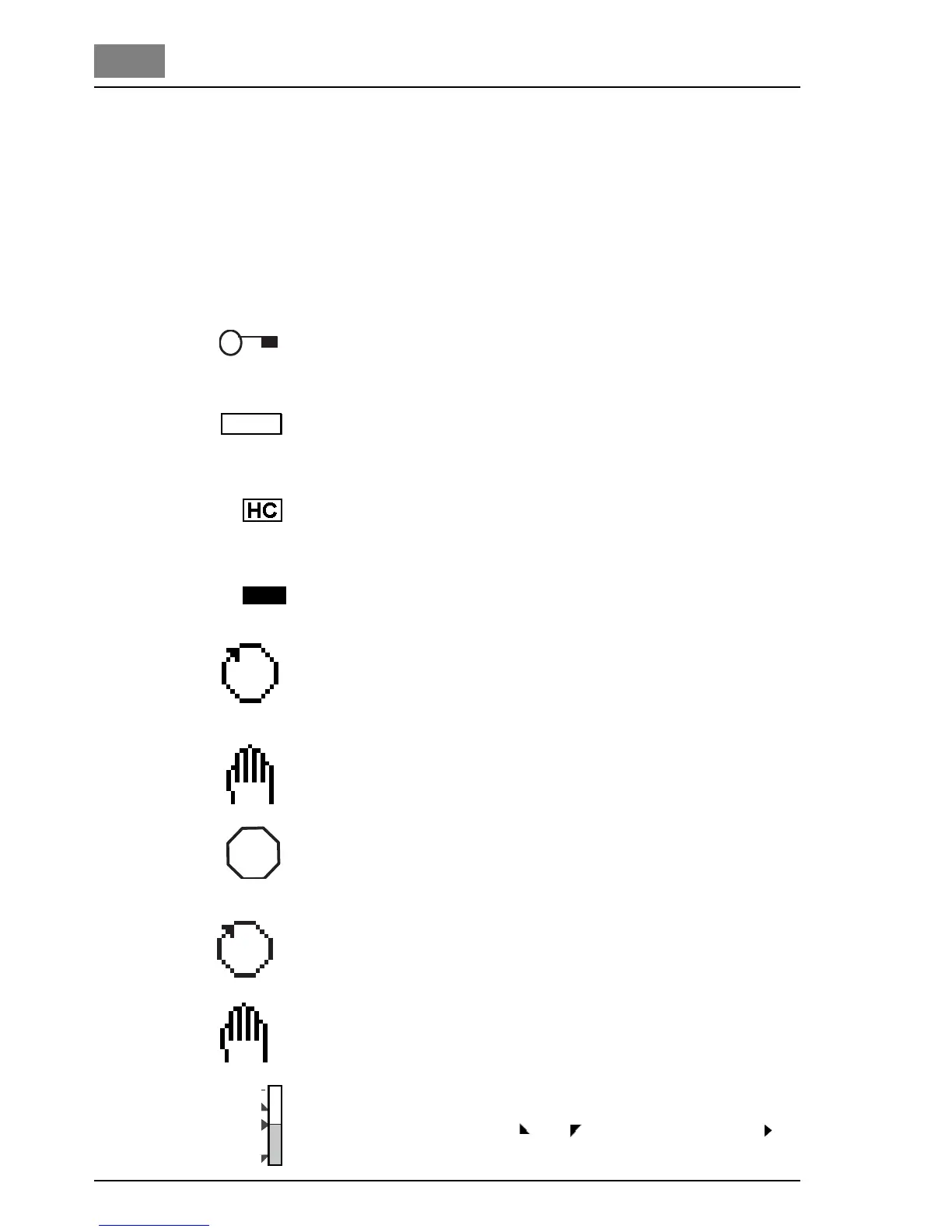

Digital inputs 1, 2, 3 active
The symbols indicate that a function has been selected for the digital
signal and that a signal is applied.
Password active
The defined password must be entered to permit modification of para-
meters and for calibrating the device.
"ECONOMIC" operating mode active
The system is running with the second set of parameters (e. g. when
circulation is reduced).
Operating mode "Peak chlorination": Setpoint peak chlorination is active.
Flashing: Dosing is stopped until the normal chlorine setpoint is reached
again.
Time
"AUTO" operating mode active
The control unit is running in automatic mode.
Dosing is performed automatically.
"MANUAL" operating mode active
Dosing can be set manually.
"System stopped" operating mode
Dosing is switched off.
"Adaption" operating mode active during "Automatic" operation
Automatic determination of the control parameters for free chlorine is
active.
"Adaption" operating mode active during "Manual" operation
Automatic determination of the control parameters for free chlorine is
active.
Bar graph
This serves to indicate a measured value, the measuring range (co-
lumn height), the limit values ( and ) a well as the setpoint ( )
