DTP CrossPoint 84 Series Matrix Switchers • Installation 19
Analog audio input connectors
See figure 11 to wire a connector for the appropriate input type. Connectors are included
with the switcher, but you must supply the audio cable. Use the supplied tie-wrap to strap
the cable to the extended tail of the connector.
Unbalanced Stereo Input
Balanced Stereo Input
Do not tin the wires!
Tip
Ring
Tip
Ring
LR
Sleeves
Tip
Sleeve
Sleeve
Tip
LR

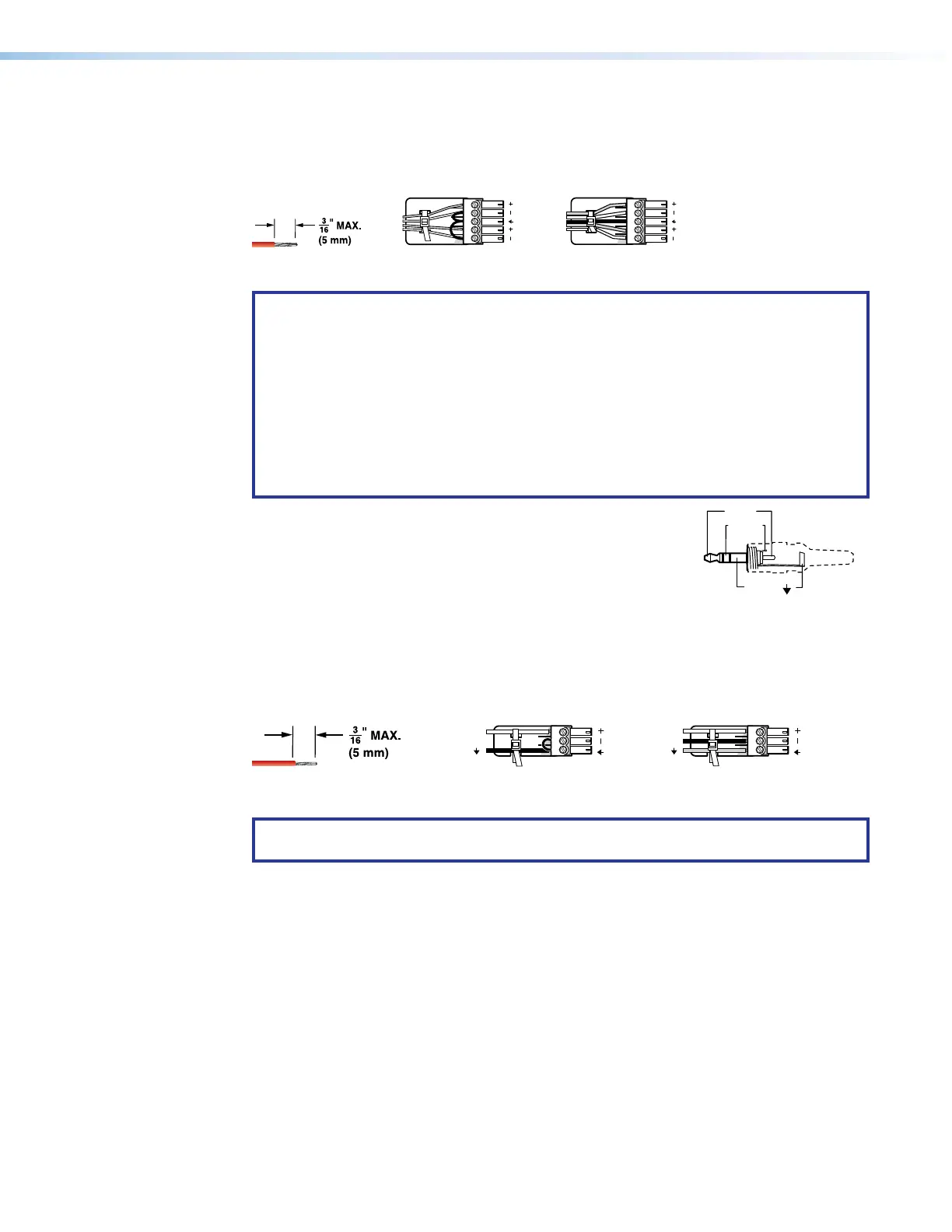

Figure 11. Captive Screw Connector Wiring for Audio Inputs
NOTES:
•
The length of exposed wir
es is important. The ideal length is 3/16 inch (5 mm).
•
If the stripped section of wir
e is longer than 3/16 inch, the exposed wires may
touch, causing a short circuit.
•
If the stripped section of wir
e is shorter than 3/16 inch, wires can be easily
pulled out even if tightly fastened by the captive screws.
• Do not tin the power supply leads before installing them in the connector. Tinned
wires are not as secure in the connector and could be pulled out.
An unbalanced stereo audio connector consists of a tip, ring,
Sleeve ( )
Ring ( - )
Tip (+)
3.5 mm Stereo Plug Connector
(balanced)
and sleeve. When you are making connections for the switcher
from existing audio cables, see the image on the right to
identify the tip, ring, and sleeve parts of the connector. The
ring, tip, and sleeve wires are also shown on the captive screw
audio connector diagrams (see figure11, figure12, and
figure13 on page20).
Mic/Line input connectors
See figure 12 to wire a connector for mono audio input. Use the supplied tie-wrap to strap
the audio cable to the extended tail of the connector.
Tip (+)
Jumper
Gnd (Sleeve, )
Tip (+)
Ring (–)
Gnd (Sleeve, )
Do not tin the wires!
Unbalanced Mono Input Balanced Mono Input
Figure 12. Captive Screw Connector Wiring for Mono Audio Inputs
NOTE: The length of exposed wires is important. The ideal length is 3/16 inch (5 mm)
(see the audio input connector NOTES above for details).
