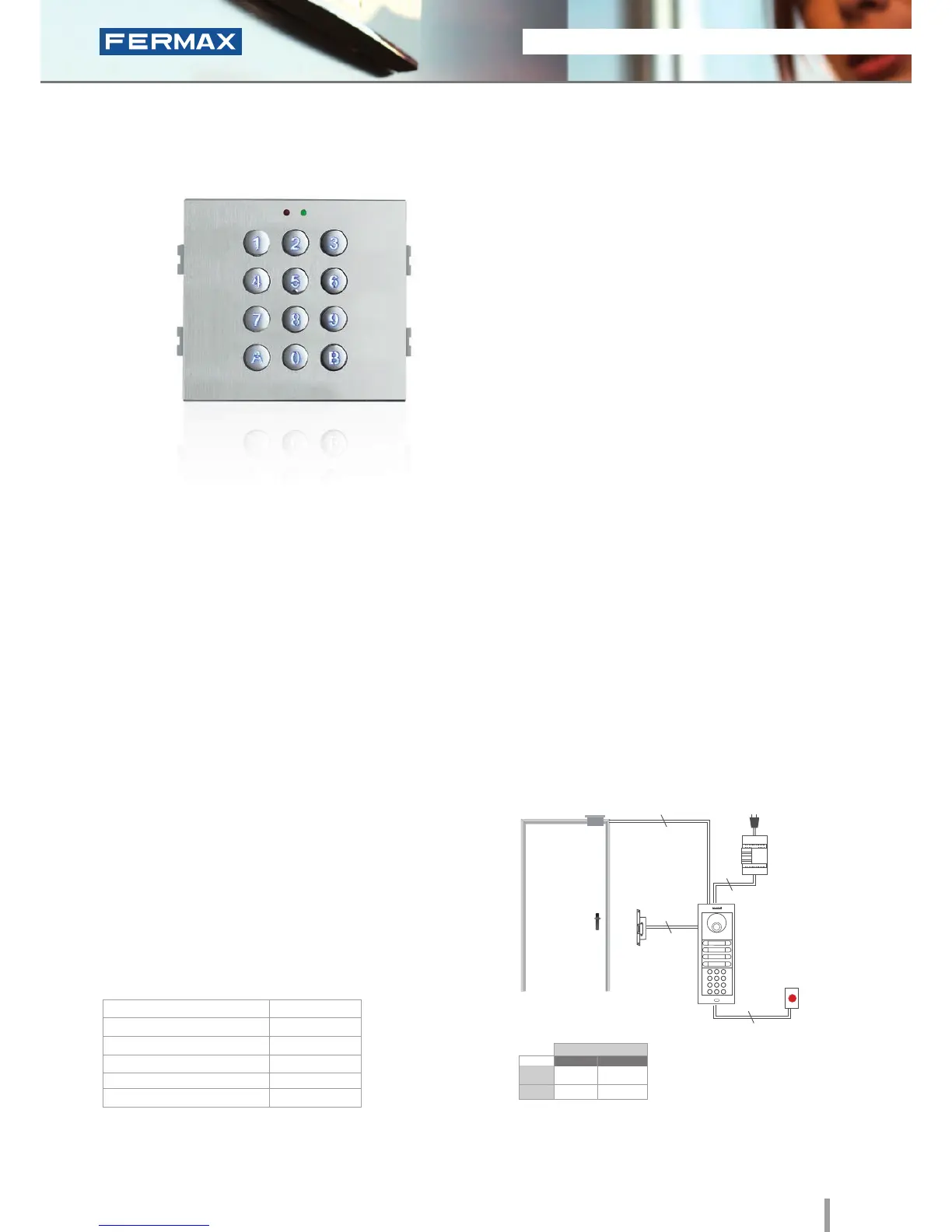

W Skyline Memokey
Ref.7438
Keypad
• Access control keypad module to be installed on
Skyline audio/video door entry system panels.
• Lock release on entering a code with up to 6 pre-
programmed digits.
• Capacity: up to 100 user codes.
• Length 4 to 6 digits.
• Blue backlit zamak keypad with status LEDs.
• Recommended for interior and exterior use.
• Reader and controller integrated within the same module.
• Acoustic confirmation tone which sounds when a
button is pressed. Acoustic and visual confirmation
with LEDs showing if a code has been accepted/
rejected.
TECHNICAL FEATURES
INSTALLATION
PROGRAMMING
• 2A relay lock-release activation (NA, NC).
Programmable from 1 and 99 seconds or bistable.
• Exit button input.
• Free access button input (trades).
• Auxiliary Open Collector Output (150mA max) to
indicate a vandalism attempt or open/forced door.
• Each code can activate 2 relays at the same time.
The electronic or video door entry system panels are located
in the building's exterior. The panel can be configured in
an intuitive manner using the memokey module for greater
ease of use and access security. The rest of the devices
are connected to this module and installed in the building's
interior: power supply and lock-release. An exit button can
be used optionally.
Programming from the same keypad using
a master code.
SPECIFICATIONS
Dimensions: (horizontal)x(vertical)x(depth) mm
• Reader Dimensions
• Environmental Protection (IP)
* Anti-Shock Protection (IK)
• Power Supply (V)
• Consumption (mA) s/lock-release
• Operating Temperature
105,2x95
54
07
12V (ac/dc)
40/110
-15º to 55º C
2
Lock-Releases
Exit Button
Power Supply
Ref. 7438
230Vac
2
2
2
Cityline Memokey
STAND-ALONE
12Vdc
12Vac
30708
3071
2888
2880
* Door lock recommended.
