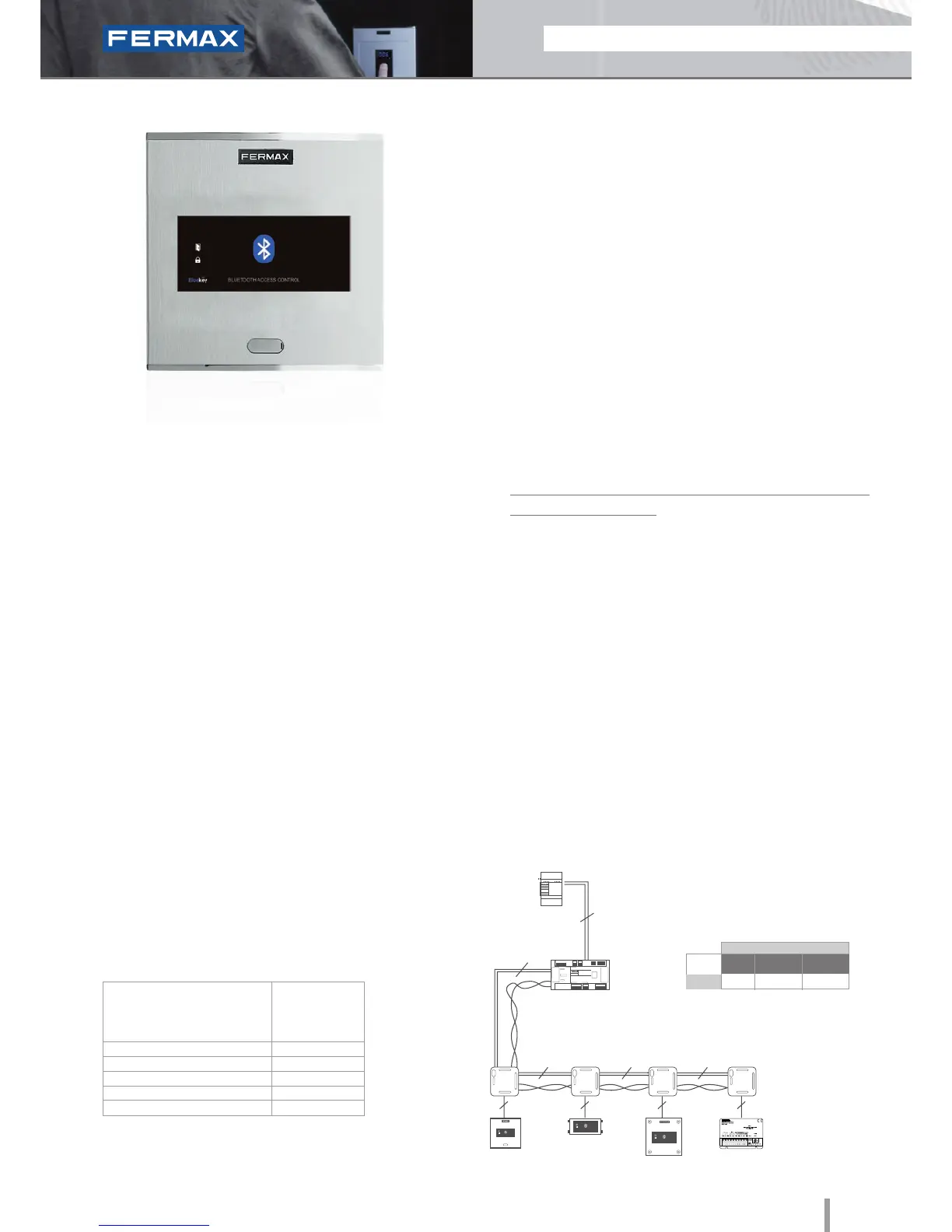

Wiegand 26-Data/Clock
Cityline Bluetooth
Ref.6993
• The access control reader uses telephones with Bluetooth
technology where the mobile phone identifies the user.
• Integrated within the Cityline aluminum panel.
• Flush mounted (ref.8948, including box) or surface
installation (ref.7061, optional).
• Recommended for interior and exterior use.
• Requires a door controller (ref.4420) for its connection
and operation.
• Can operate as a stand-alone or centralised system.
Congurable by way of dipswitches (SW1).
Configuration as a CENTRALISED system with Wiegand26
protocol or Data/Clock.
Capacity:
- 1.020 mobile telephones with the MDS C.U.(ref.2405).
- 2.048 mobile telephones with the CAC C.U. (ref.4410).
• Acoustic and visual confirmation using status LEDs
indicating if a mobile phone has been accepted or rejected.
• Congurable reading range: 2m, 9m or up to 20m.
• Congurable Repetition Time (point in time at which the reader
will re-activate the relay for the telephone detected).
Programming is by way of the «FermaxPC» software package
which can be downloaded from www.fermax.com.
The wiegand-data/clock mobile phone codes are provided
by the PC application and should be registered in the control
system (Central Unit).
PROGRAMMING
Dimensions: (horizontal)x(vertical)x(depth) mm
SPECIFICATIONS
• Dimensions:
* Reader
* Flush Mounted Box (included)
* Surface Box (optional)
• Environmental Protection (IP)
• Anti-Shock Protection (IK)
• Power Supply (V)
• Consumption (mA) S/lock-release
• Operating Temperature
130x128
115x114x45
130x128x33
54
07
12Vdc
50
-15º to 55ºC
Bluetooth
TECHNICAL FEATURES
• The system can work in various modes:
- Request PIN: When the receiver detects a telephone
it requests the PIN (4 digit code congured by the
administrator).
- Request Confirmation: When the receiver detects a
telephone, it requests a confirmation to open the door.
The user should use key 1 and accept to open the door.
- Automatic Mode (Without PIN): The door opens when
it detects an authorised phone.
• Acoustic and visual status data.
• The Wiegand readers (WG) or Data/Clock allow greater
anti-sabotage security given that all the devices are
connected to the door controller and are therefore outside
the range for interference. The door controller is installed
on the interior area (secure area) and the reader in the
exterior.
• The reader can be used with other door controllers
which use Wiegand 26 (WG) or Data/Clock protocols.
• Wiring: 7 wires to the door controller.
• For more information see the door controller's Technical
Features section.
INSTALLATION
Reader Reader module Reader Mini Bluetooth
module
2
2
2 2 2
C.U. (ref.2405 or
ref.4410)
Twisted Pair
Door controller.
(ref.4420)
Power Supply
7
7
7
7
CENTRALISED
Door lock recommended:
12Vdc 30708 2888 29580
Normal
Normal
w/sensor
References
Reinforced
