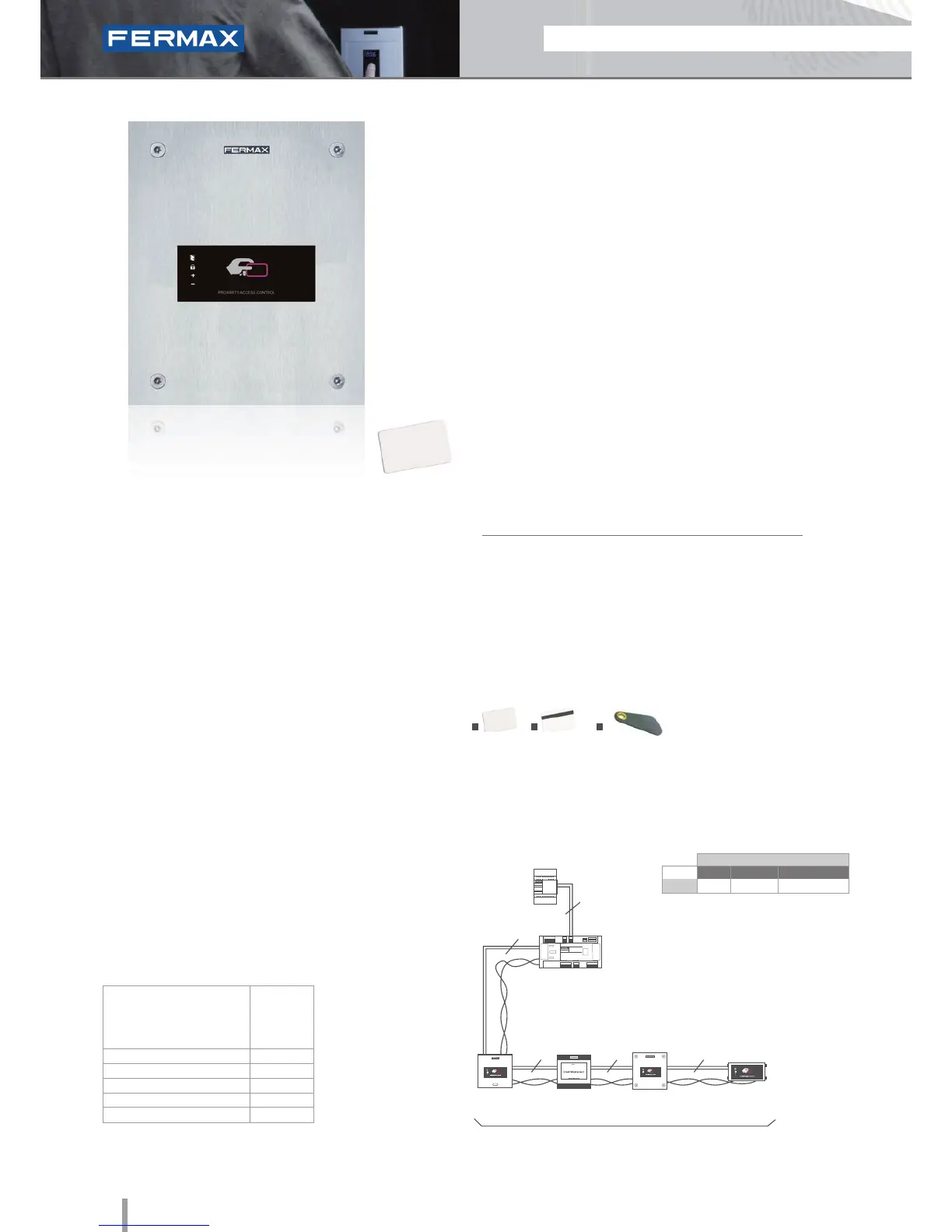

Proximity Reader
MDS/CAC
Marine Proximity
Ref.5472
• Access control reader which allows the door to be opened by
swiping the proximity card or keyring. Only authorised
cards or keyrings activate the device. Physical contact is not
necessary.
• Integrated within a 2.5mm Marine stainless steel panel.
• Flush mounted (ref.4641, including box) or surface installation
(ref.4701, optional).
• Recommended for interior and exterior use.
• Reader and controller integrated within the same module.
• Can operate as a stand-alone or centralised system.
Congurable between dipswitches (SW2).
Configuration as CENTRALISED MDS-CAC systems:
• Proximity reader with capacity for up to:
- 1.020 cards/keyrings with MDS central unit (ref.2405).
- 2.048 cards/keyrings with MDS central unit (ref.4410).
• Acoustic and visual confirmation using status LEDs which
advises if the card swiped has been accepted or rejected.
• Does not require physical reader-card contact.
4cm (card) or 1cm (keyring) reading distance.
• Acoustic and visual status data.
• Lock-release button input, door sensor input and lock-
release relay.
• Reader-Central Unit Wiring: 2 wires (power supply) +
shielded twisted pair (data). On a system with various
readers these can be connected in cascade.
• Includes a dipswitch (SW1) for conguration:
- Door Number: the access/door number (0..31).
- Lock-Release Opening: Opening Time (seconds):
* On MDS via dipswitch.
* On CAC software conguration.
• CN3 Connector: keypad connector.
• The lock-release can be connected directly to the reader
and for maximum security system it is better to use relay
decoders.
Programming is done using the PC software relevant to
the central unit installed (ref.2405 or ref.4410).
PROGRAMMING
Dimensions: (horizontal)x(vertical)x(depth) mm
150x180
130x160x55
154x184x55
54
09
12Vdc
90
-15º to 55ºC
SPECIFICATIONS
• Dimensions:
* Reader
* Flush Mounted Box
* Surface Box
• Environmental Protection (IP)
• Anti-Shock Protection (IK)
• Power Supply (V)
• Consumption (mA) S/lock-release
• Operating Temperature
TECHNICAL FEATURES
INSTALLATION
Reader
Reader
Reader Reader module
Up to 32 readers
2 2
2
2
2
C.U. (ref.2405 or ref.4410)
Twisted Pair
Power Supply
1. Card without magnetic strip (ref.23361); 2. Card with magnetic strip (ref.2336);
3. Proximity keyring (ref.44501).
1 2
3
IDENTIFIERS
CENTRALISED
Door lock recommended:
12Vdc 30708 2888 29580
Normal Normal w/sensor
References
Reinforced
