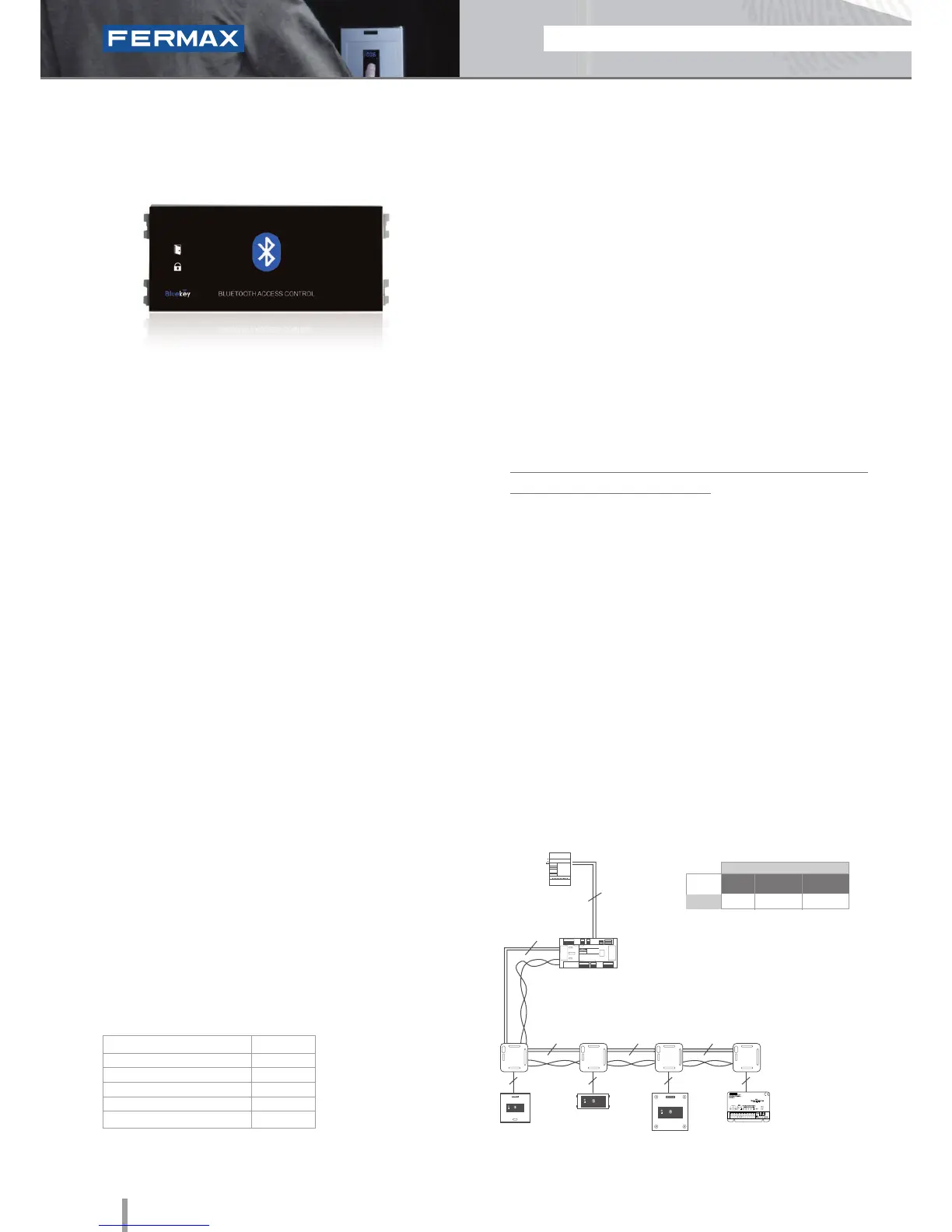

Wiegand 26-Data/Clock
V Skyline Bluetooth
Ref.7441
• The access control reader uses telephones with Bluetooth
technology where the mobile telephone identifies the user.
• Access control module to be integrated within Skyline
audio/video door entry system panels.
• Recommended for interior and exterior use.
• Requires a door controller (ref.4420) for its connection
and operation.
• Can operate as a stand-alone or centralised system.
Congurable by way of dipswitches (SW1).
Configuration as a CENTRALISED system with Wiegand26
protocol or Data/Clock. Capacity:
- 1.020 mobile telephones with MDS C.U. (ref.2405).
- 2.048 mobile telephones with the CAC C.U. (ref.4410).
• Acoustic and visual confirmation using status LEDs
indicating if a mobile phone has been accepted or rejected.
• Congurable reading range: 2m, 9m or up to 20m.
• Congurable Repetition Time (point in time at which the reader
will re-activate the relay for the telephone detected).
Programming is done thanks to the «FermaxPC» software
package which can be downloaded from www.fermax.com.
The telephone codes in wiegand and data/clock format are
provided by the PC application and must be registered in the
control system (Central Unit).
PROGRAMMING
Dimensions: (horizontal)x(vertical)x(depth) mm
SPECIFICATIONS
• Dimensions:
• Environmental Protection (IP)
• Anti-Shock Protection (IK)
• Power Supply (V)
• Consumption (mA) S/lock-release
• Operating Temperature
105.2x95
54
07
12Vdc
50
-15º to 55ºC
Bluetooth
TECHNICAL FEATURES
• The system can work in various modes:
- Request PIN: When the receiver detects a telephone
it requests the PIN (4 digit code congured by the
administrator).
- Request Confirmation: When the receiver detects
a telephone, it requests a confirmation to open the
door. The user should use key 1 and accept to open
the door.
- Automatic Mode (Without PIN): The door opens
when it detects the presence of an authorised phone.
• Acoustic and visual status data.
• The Wiegand readers (WG) or Data/Clock allow greater
anti-sabotage security given that all the devices are
connected to the door controller and are therefore
outside the range for interference. The door controller is
installed in the interior area (secure area) and the reader
in the exterior.
• The reader can be used with other door controllers which
use Wiegand26 (WG) or Data/Clock protocols.
• Wiring: 7 wires to the door controller.
• For more information see door controller's Technical
Features section.
INSTALLATION
Reader Reader module Reader
2
2
2
2
2
C.U. (ref.2405 or ref.4410)
Twisted Pair
Door controller
(ref.4420)
Power Supply
7
7 7
7
Mini Bluetooth Module
CENTRALISED
Door lock recommended:
12Vdc 30708 2888 29580
Normal
Normal
w/sensor
References
Reinforced
