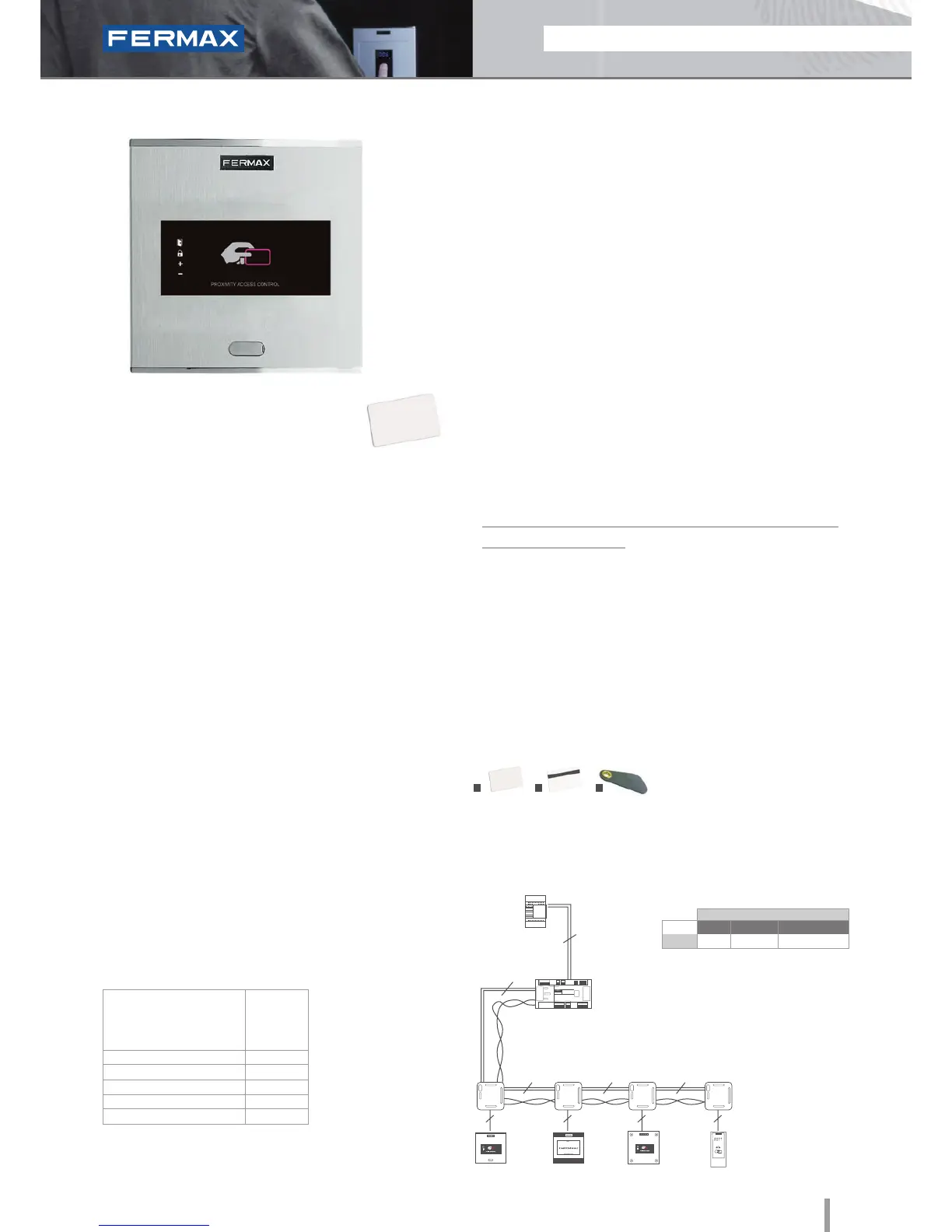

Wiegand26-Data/Clock
Cityline Proximity
Ref.6992
• Access control reader which allows the door to be opened by
swiping the proximity card or keyring. Only authorised cards or
keyrings activate the device. Physical contact is not necessary.
• Integrated within the Cityline aluminum panel.
• Flush mounted (ref.8948, including box) or surface installation
(ref.7061, optional).
• Recommended for interior and exterior use.
• Requires a door controller (ref.4420) for its connection and
operation.
• Can operate as a stand-alone or centralised system.
Congurable between dipswitches (SW2).
Configuration as a CENTRALISED system with Wiegand26
protocol or Data/Clock.
• When conguring the reader in the following mode:
- Wiegand-26, the «+» led will light up for 1 second.
- Data/Clock, the «-» led will light up for 1 second.
• Proximity reader with capacity for up to:
- 1.020 cards/keyrings with MDS central unit (ref.2405).
- 2.048 cards/keyrings with CAC central unit (ref.4410).
• Acoustic and visual confirmation using status LEDs which
advises if the card swiped has been accepted or rejected.
• Does not require physical reader-card contact.
5cm (card) or 1.5cm (keyring) reading distance.
• Acoustic and visual status data.
• The Wiegand readers (WG) or Data/Clock allow greater
anti-sabotage security given that all the devices are
connected to the door controller and are therefore
outside the range for interference. The door controller
is installed in the interior area (secure area) and the
reader in the exterior.
• The reader can be used with other door controllers
which use Wiegand 26 (WG) or Data/Clock protocols.
• Wiring: 7 wires to the door controller.
• For more information, see the door controller's
Technical Features section.
Programming is done using the relevant PC software
to the central unit installed (ref.2405 or ref.4410).
PROGRAMMING
Dimensions: (horizontal)x(vertical)x(depth) mm
SPECIFICATIONS
130x128
115x114x45
130x128x33
54
07
12Vdc
90
-15º to 55ºC
• Dimensions:
* Reader
* Flush Mounted Box
* Surface Box
• Environmental Protection (IP)
• Anti-Shock Protection (IK)
• Power Supply (V)
• Consumption (mA) S/lock-release
• Operating Temperature
TECHNICAL FEATURES
Proximity
INSTALLATION
Reader
Reader
Reader
Reader
2
2
2
2
2
C.U. (ref.2405 ref.4410)
Twisted Pair
Door controller
(ref.4420)
Power Supply
7
7
7
7
CENTRALISED
IDENTIFIERS
1. Card without magnetic strip (ref.23361); 2. Card with magnetic strip (ref.2336);
3. Proximity keyring (ref.44501).
1 2 3
Door lock recommended:
12Vdc 30708 2888 29580
Normal Normal w/sensor
References
Reinforced
