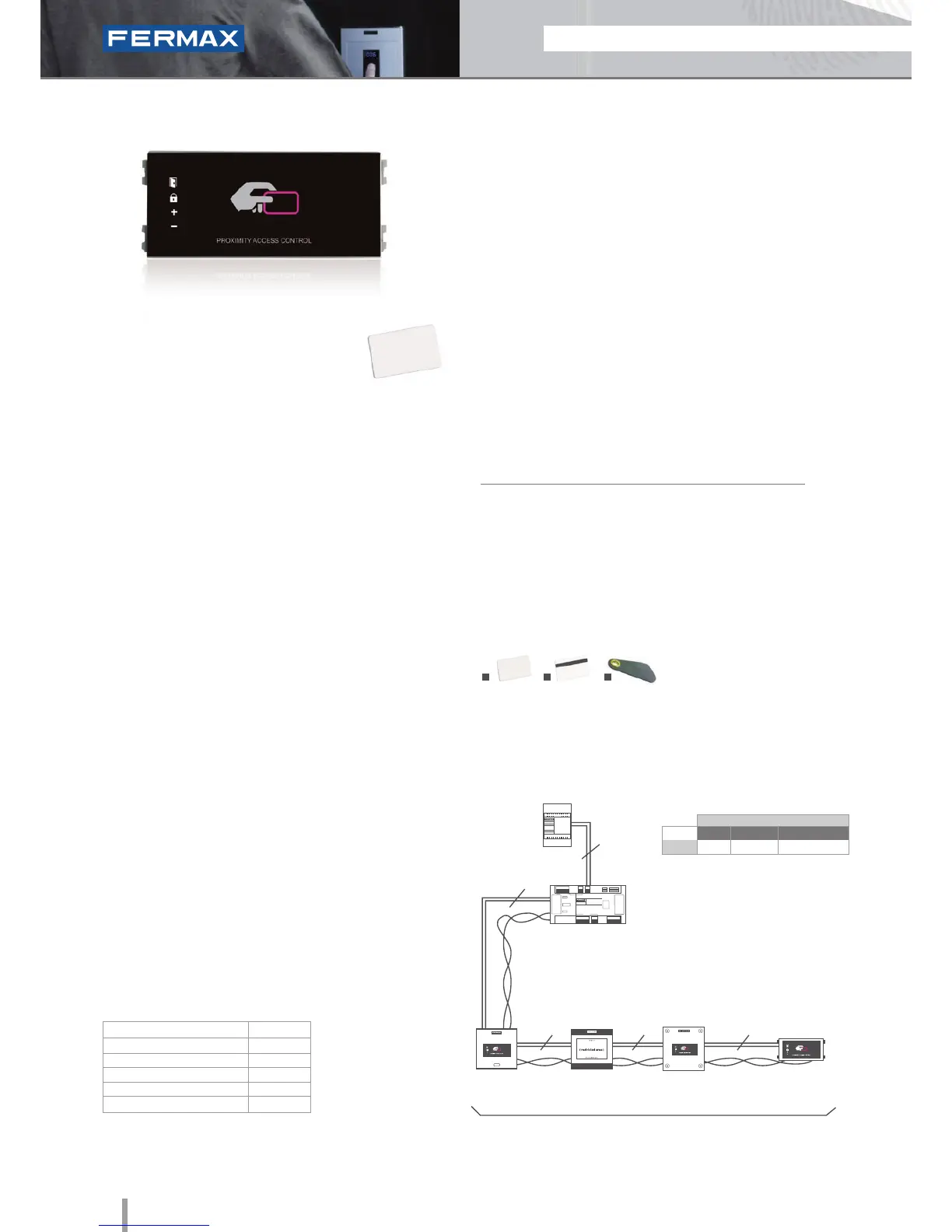

MDS/CAC
V Skyline Proximity
Ref.7440
• Access control reader which allows the door to be opened by
swiping the proximity card or keyring. Only authorised cards or
keyrings activate the device. Physical contact is not necessary.
• Access control module to be integrated within Skyline
audio/video door entry system panels.
• Recommended for interior and exterior use.
• Reader and controller integrated within the same module.
• Can operate as a stand-alone or centralised system.
Congurable between dipswitches (SW2).
Configuration as a CENTRALISED MDS-CAC system:
• Proximity reader with capacity for up to:
- 1.020 cards/keyrings with MDS central unit (ref.2405).
- 2.048 cards/keyrings with CAC central unit (ref.4410).
• Acoustic and visual confirmation using status LEDs which
advises if the card swiped has been accepted or rejected.
• Does not require physical reader-card contact.
5cm (card) or 1.5cm (keyring) reading distance.
• Acoustic and visual status data.
• Lock-release button input, door sensor input and lock-
release relay (C, NO, NC, potential free).
• Reader - Central Unit Wiring: 2 wires (power supply)
+ shielded twisted pair (data). On a system with various
readers these can be connected in cascade.
• Includes a dipswitch (SW1) for conguration:
- Door Number: the access/door number (0..31).
- Lock-release opening time (secs.):
* On MDS via dipswitch.
* On CAC software conguration.
• The lock-releases can be connected directly to the
reader and for systems with maximum security it is
better to use the relay decoder.
Programming is done using the relevant PC software
to the central unit installed (ref.2405 or ref.4410).
PROGRAMMING
Dimensions: (horizontal)x(vertical)x(depth) mm
SPECIFICATIONS
105,2x47,5
54
07
12Vdc
90
-15º to 55ºC
• Dimensions
• Environmental Protection (IP)
• Anti-Shock Protection (IK)
• Power Supply (V)
• Consumption (mA) S/lock-release
• Operating Temperature
TECHNICAL FEATURES
INSTALLATION
Proximity
Reader Reader Reader
Reader Module
Up to 32 readers
2
2
2
2
2
C.U. (ref.2405 or ref.4410)
Twisted Pair
Power Supply
CENTRALISED
Door lock recommended:
12Vdc 30708 2888 29580
Normal Normal w/sensor
References
Reinforced
IDENTIFIERS
1. Card without magnetic strip (ref.23361); 2. Card with magnetic strip (ref.2336);
3. Proximity keyring (ref.44501).
1 2 3
