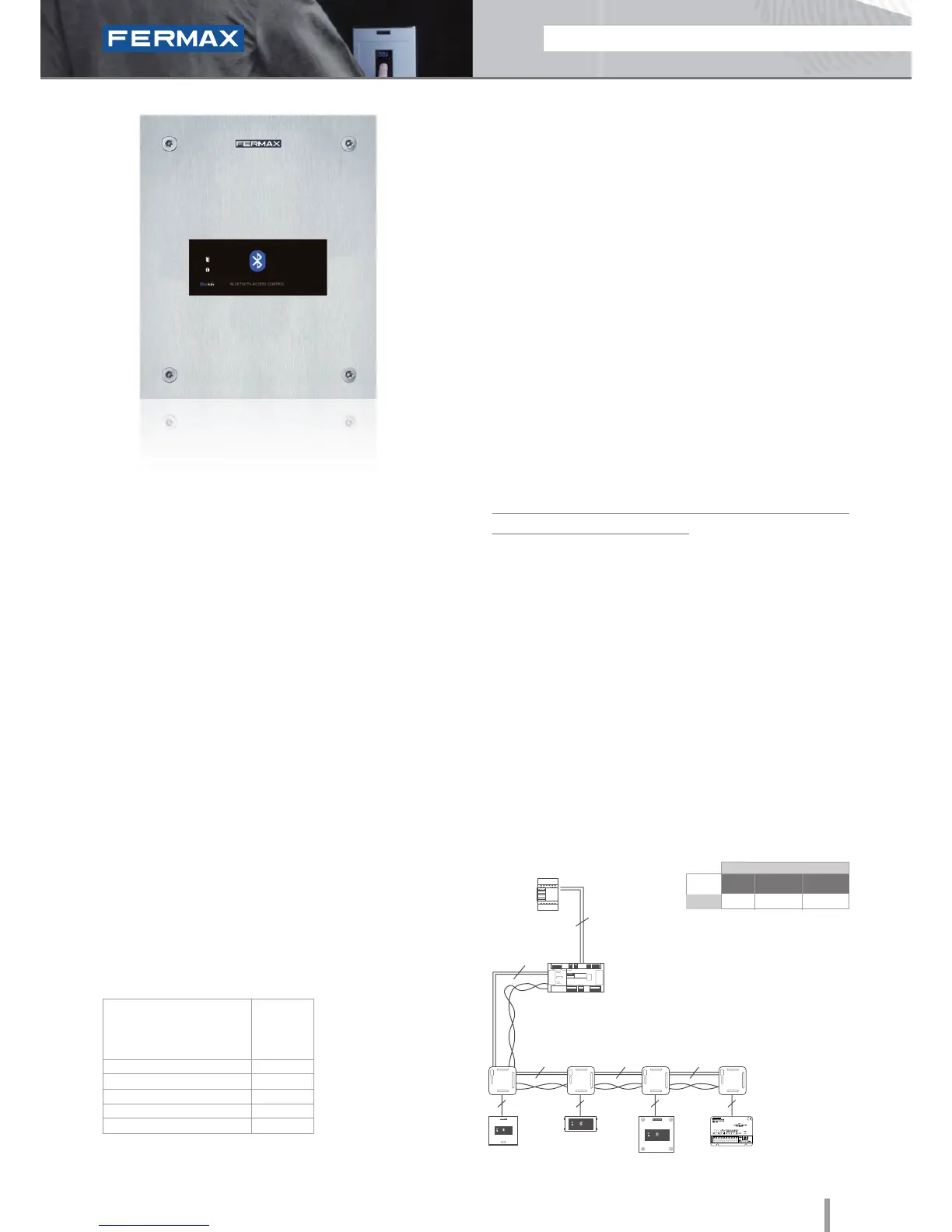

• The access control reader which uses telephones with
Bluetooth technology where the mobile telephone identifies
the user.
• Integrated within a 2.5mm stainless steel Marine panel.
• Flush mounted (ref.4641, box included) or surface
installation (ref.4701, optional).
• Recommended for interior and exterior use.
• Requires a door controller (ref.4420) for its connection
and operation.
• Can operate as an stand-alone or centralised system.
Congurable by way of dip switches (SW1).
Configuration as a CENTRALISED system with Wiegand26
protocol or Data/Clock Capacity:
- 1.020 mobile telephones MDS C.U (ref.2405).
- 2.048 mobile telephones with the CAC C.U (ref.4410).
• Acoustic and visual confirmation using status LEDs
indicating if the mobile phone has been accepted or rejected.
• Congurable reading range: 2m, 9m or up to 20m.
• Congurable Repetition Time (point in time at which the reader
will re-activate the relay for the telephone detected).
Programming is done thanks to the «FermaxPC» software
package which can be downloaded from www.fermax.com. The
telephone codes in wiegand and data/clock format are provided
by the PC application and must be registered in the control
system (Central Unit).
PROGRAMMING
TECHNICAL FEATURES
• The system can work in various modes:
- Request PIN: When the receiver detects a telephone
it requests the PIN (4 digit code congured by the
administrator).
- Request Confirmation: When the receiver detects a
telephone, it requests a confirmation to open the door.
The user should use key 1 and accept to open the
door.
- Automatic Mode (Without PIN): The door opens
when it detects an authorised phone.
• Acoustic and visual status data.
• The Wiegand readers (WG) or Data/Clock allow greater
anti-sabotage security given that all the devices are
connected to the door controller and are therefore
outside the range for interference. The door controller is
installed in the interior area (secure area) and the reader
in the exterior.
• The reader can be used with other door controllers
which use Wiegand 26 (WG) or Data/Clock protocols.
• Wiring: 7 wires to the door controller.
• For more information see the door controller's Technical
Features section.
Wiegand 26-Data/Clock
Marine Bluetooth
Ref.5473
Bluetooth
Dimensions: (horizontal)x(vertical)x(depth) mm
SPECIFICATIONS
• Dimensions:
* Reader
* Flush Mounted Box (included)
* Surface Box (optional)
• Environmental Protection (IP)
• Anti-Shock Protection (IK)
• Power Supply (V)
• Consumption (mA) S/lock-release
• Operating Temperature
150x180
130x160x55
130x184x55
54
09
12Vdc
50
-15º to 55ºC
INSTALLATION
CENTRALISED
Reader
Reader
module
Reader
2
2
2 2 2
C.U. (ref.2405 or
ref.4410)
Twisted Pair
Door controller
(ref.4420)
Power Supply
7 7 7 7
Mini Bluetooth module
Door lock recommended:
12Vdc 30708 2888 29580
Normal
Normal
w/sensor
References
Reinforced
