Proximity
MDS/CAC

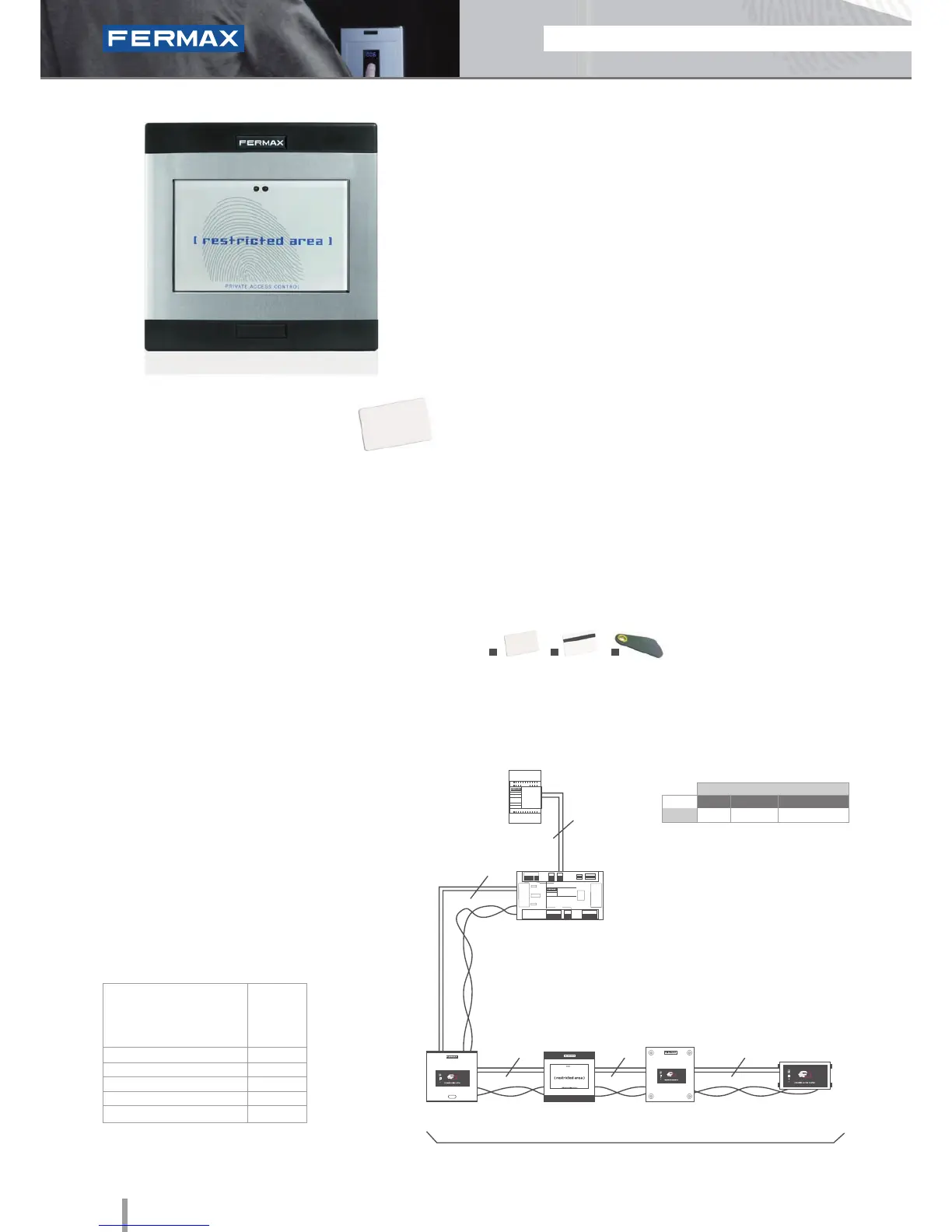

City Classic Proximity
Ref.23351
• Access control reader which allows the door to be opened by
swiping the proximity card or keyring. Only authorised
cards or keyrings activate the device. Physical contact is not
necessary.
• Integrated within the City Classic aluminum panel.
• Flush mounted (ref.8948, including box) or surface
installation (ref.8951, optional).
• Recommended for interior and exterior use.
• Reader and controller integrated within the same module.
• Proximity reader with capacity for up to:
- 1.020 cards/keyrings with MDS central unit (ref.2405).
- 2.048 cards/keyrings with MDS central unit (ref.4410).
• Acoustic and visual confirmation using status LEDs which
advises if the card swiped has been accepted or rejected.
• Does not require physical reader-card contact.
3cm (card) or 1cm (keyring) reading distance.
• Acoustic and visual status data.
• Lock-release button input, door sensor input and lock-
release relay.
• Reader - Central Unit Wiring: 2 wires (power supply) +
shielded twisted pair (data). On a system with various
readers these can be connected in cascade.
• Includes a dipswitch (SW1) for conguration:
- Door Number: the access/door number (0..31).
- Lock-Release Opening: Opening Time (seconds):
* On MDS via dipswitch
* On CAC software conguration.
• The lock-release can be connected directly to
the reader and for maximum security system it is better
to use the relay decoder.
Programming is done using the relevant PC software
to the central unit installed (ref.2405 or ref.4410).
PROGRAMMING
INSTALLATION
Dimensions: (horizontal)x(vertical)x(depth) mm
SPECIFICATIONS
130x128
115x114x45
130x128x33
43
07
12Vdc
55
0º to 60ºC
• Dimensions:
* Reader
* Flush Mounted Box
* Surface Box
• Environmental Protection (IP)
• Anti-Shock Protection (IK)
• Power Supply (V)
• Consumption (mA) S/lock-release
• Operating Temperature
TECHNICAL FEATURES
CENTRALISED
Reader
Reader
Reader
Reader Module
Up to 32 readers
2 2 2
2
2
C.U. (ref.2405 or ref.4410)
Twisted Pair
Power Supply
Door lock recommended:
12Vdc 30708 2888 29580
Normal Normal w/sensor
References
Reinforced
IDENTIFIERS
1. Card without magnetic strip (ref.23361); 2. Card with magnetic strip (ref.2336);
3. Proximity keyring (ref.44501).
1 2 3
