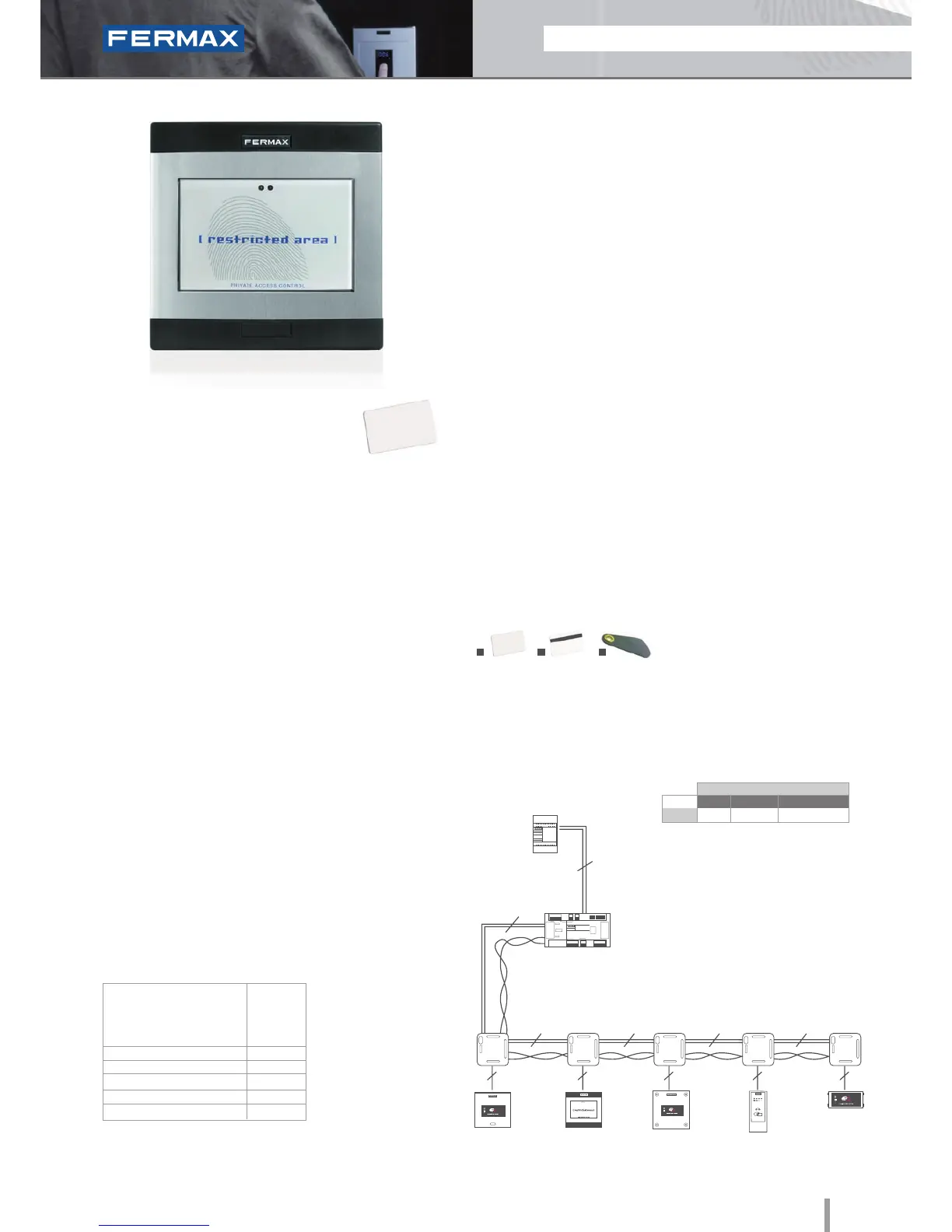

Proximity
Wiegand26-Data/Clock
City Classic Proximity
Ref.4490
• Access control reader which allows the door to be opened by
swiping the proximity card or keyring. Only authorised
cards or keyrings activate the device. Physical contact is not
necessary.
• Integrated within the City Classic aluminum panel.
• Flush mounted (ref.8948, including box) or surface
installation (ref.8951, optional).
• Recommended for interior and exterior use.
• Requires a door controller (ref.4420) for its connection and
operation.
• Proximity reader with capacity for up to:
- 1.020 cards/keyrings with MDS central unit (ref.2405).
- 2.048 cards/keyrings with MDS central unit (ref.4410).
• Acoustic and visual confirmation using status LEDs which
advises if the card swiped has been accepted or rejected.
INSTALLATION
PROGRAMMING
Programming is done using the relevant PC software
to the central unit installed (ref.2405 or ref.4410).
Dimensions: (horizontal)x(vertical)x(depth) mm
SPECIFICATIONS
130x128
115x114x45
130x128x33
43
07
12Vdc
55
0º to 60ºC
• Dimensions:
* Reader
* Flush Mounted Box
* Surface Box
• Environmental Protection (IP)
• Anti-Shock Protection (IK)
• Power Supply (V)
• Consumption (mA) S/lock-release
•Operating Temperature
TECHNICAL FEATURES
• Does not require physical reader-card contact.
3 cm (card) or 1 cm (keyring) reading distance.
• Acoustic and visual status data.
• The Wiegand readers (WG) or Data/Clock allow
greater anti-sabotage security given that all the
devices are connected to the door controller and are
therefore outside the range for interference. The door
controller is installed in the interior area (secure
area) and the reader in the exterior.
• The reader can be used with other door controllers
which use Wiegand 26 (WG) or Data/Clock protocols.
• Wiring: 7 wires to the door controller.
• For more information see the door controller's
Technical Features section.
Reader Reader Reader Reader
Reader module
2
2
2
2 2
2
C.U. (ref.2405 ref.4410)
Twisted Pair
Door controller
(ref.4420)
Power Supply
7
7 7 7 7
CENTRALISED
Door lock recommended:
12Vdc 30708 2888 29580
Normal Normal w/sensor
References
Reinforced
IDENTIFIERS
1. Card without magnetic strip (ref.23361); 2. Card with magnetic strip (ref.2336);
3. Proximity keyring (ref.44501).
1 2 3
