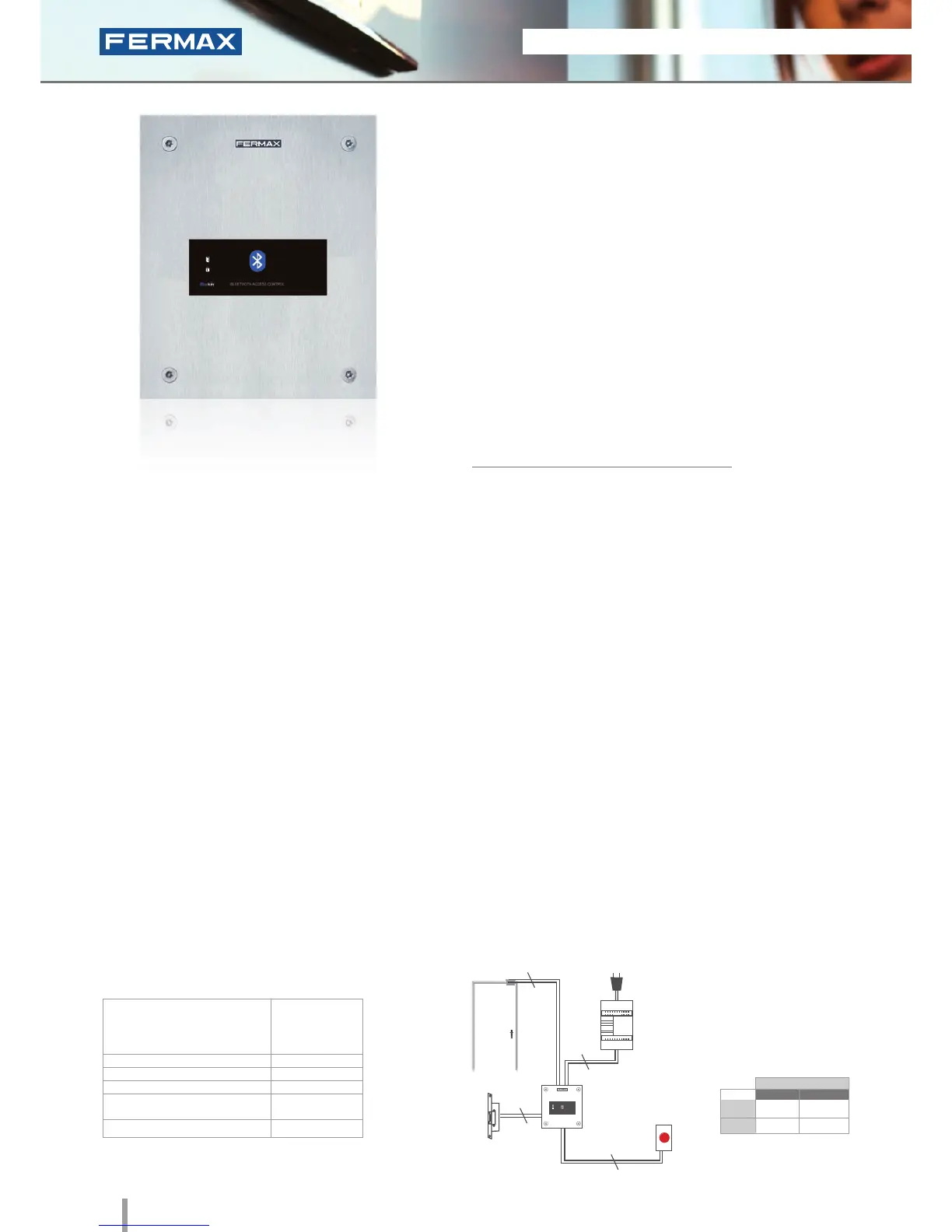

Marine Bluetooth
Ref.5473
Bluetooth
• Access control reader which operates by means of telephones
equipped with Bluetooth technology where the mobile
telephone acts as a user identifier.
• Integrated within a 2.5mm stainless steel Marine panel.
• Flush mounted (ref.4641, including box) or surface installation
(ref.4701, optional).
• Recommended for interior and exterior use.
• Reader and controller integrated within the same module.
• Can operate as a stand-alone or centralised system
(congurable using dipswitch SW1).
Configuration as a STAND-ALONE system:
• Capacity based on chosen operating mode.
Operation options:
- Authorised telephones: automatic door opening or using a PIN
request and conrmation (3 modes).
Capacity: 40 mobile phones.
- Any phone: PIN request. Capacity: Unlimited.
• Acoustic and visual confirmation using status LEDs which
confirm if a mobile phone has been accepted or rejected.
• Congurable reading range: 2m, 9m or up to 20m.
• Congurable repetition time.
The bluetooth reader is located in the exterior area. The rest of the
devices are connected to this module and they are installed in the
building's interior: power supply and lock-release. An exit button
can be used optionally.
INSTALLATION
SPECIFICATIONS
Dimensions: (horizontal)x(vertical)x(depth) mm
• Dimensions:
* Reader
* Flush Mounted Box
* Surface box
• Environmental Protection (IP)
• Anti-Shock Protection (IK)
• Power Supply (V)
• Consumption (mA) S/lock-release
• Operating Temperature
150x180
130x160x55
154x184x55
54
09
12V (ac/dc)
12VAc: 100
12Vdc 50
-15º to 55ºC
Lock-Release
Exit
Button
Power Supply
Ref.5473
230Vac
2
2
2
2
TECHNICAL FEATURES
PROGRAMMING
This can be done in 2 ways: via a mobile phone with bluetooth
connectivity (master mobile) using a list of commands or alternatively
via a PC/PDA (with a bluetooth connection).
The «FermaxPC» programming software can be downloaded from
www.fermax.com
• Relay lock-release activation. Programmable from
01 to 99 seconds.
• Exit button input.
• Operation options:
1. Working with a list of authorised phones.
This is a list recorded on the receiver and determines
which telephones can open the door. List Capacity:
up to 40 different mobile telephones.
This working mode has three possible options:
- Automatic Mode (Without PIN): The door opens
when it detects the presence of an authorised phone.
- Request Confirmation: When the receiver detects
a phone on the list, it requests confirmation to open
the door. The user must press the 1 key and Accept to
open the door.
- Request PIN : When the receiver detects a phone
in the list it requests the PIN (4-digit code congurable
by the administrator).
2. Working without an authorised telephone list
(default conguration). The PIN will be requested for
any mobile phone with activated bluetooth within
range, and only if entered correctly the lock release will
be activated. Unlimited number of mobile phones.
STAND-ALONE
12Vdc
12Vac
30708
3071
2888
2880
* Door lock recommended.
Normal
References
Reinforced
