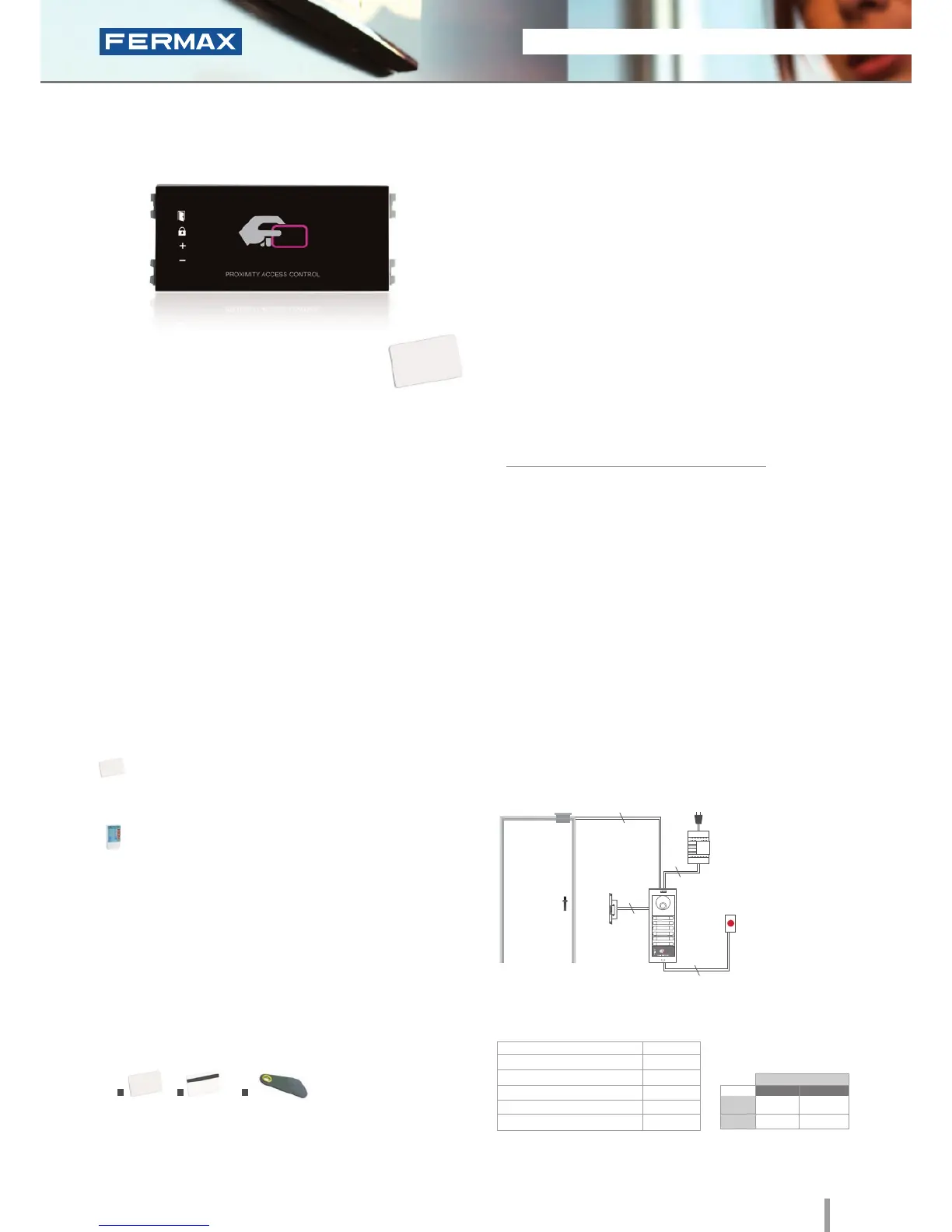

• Access control reader which allows the door to be opened
by swiping the proximity card or keyring. Only authorised
cards or keyrings activate the device. Physical contact is
not necessary.
• Access control module to be integrated within Skyline
audio/video door entry system panels.
• Recommended for interior and exterior use.
• Reader and controller integrated within the same module.
• Can operate as a stand-alone or centralised system.
Congurable between dipswitches (SW2).
Configuration as a STAND-ALONE system:
• Capacity: up to 400 user cards or keyrings.
• Acoustic and visual confirmation using LEDs which
advise if the card swiped has been accepted/ rejected.
INSTALLATION
The electronic or video door entry system panels are located
in the building's exterior. The panel can be configured in an
intuitive manner using the private module for greater ease of
use and access security. The rest of the devices are connected
to this module and they are installed in the building's interior:
power supply and lock-release. An exit button can be used
optionally.
V Skyline Private
Ref.7440
Proximity
TECHNICAL FEATURES
• Does not require physical contact.
5cm (card) or 1.5cm (keyring) reading distance.
• Acoustic and visual status data.
• Status LEDs (help in programming and determining
status).
• Manual programming (using master card or keyring)
or via PC software (card activation/deactivation).
• Door sensor and exit button control.
• Relay output.
• Relay lock-release activation with programmable
time. Programmable at 1 to 99 secs.
Lock-Releases
Exit Button
Power Supply
Ref.7440
230Vac
2
2
2
2
SPECIFICATIONS
• Reader Dimensions:
• Environmental Protection (IP)
• Anti-Shock Protection (IK)
• Power Supply (V)
• Consumption (mA) S/lock-release
• Operating Temperature
105.2X47.5
54
07
12V (ac/dc)
90
-15º to 55ºC
PROGRAMMING
This can be done in 3 ways:
Master card: The first time the power supply is
connected, the system waits for a proximity card to be
swiped. This is then considered the "master card".
Keypad: Recommended if we want to deactivate
faulty cards.
PC Software: For managing user activation/
deactivations.
The WINPROX software can be downloaded from
www.fermax.com
IDENTIFIERS
1. Card without magnetic strip (ref.23361); 2. Card with magnetic strip
(ref.2336); 3. Proximity keyring (ref.44501).
Dimensions: (horizontal)x(vertical)x(depth) mm
1 2
3
STAND-ALONE
12Vdc
12Vac
30708
3071
2888
2880
* Door lock recommended.
Normal
References
Reinforced
