60x130x23
Not required
Not required
66
06
12Vdc
40
0º to 60ºC
SPECIFICATIONS
• Dimensions:
* Reader
* Flush Mounted Box
* Surface Box
• Environmental Protection (IP)
• Anti-Shock Protection (IK)
• Power Supply (V)
• Consumption (mA) S/lock-release
• Operating Temperature

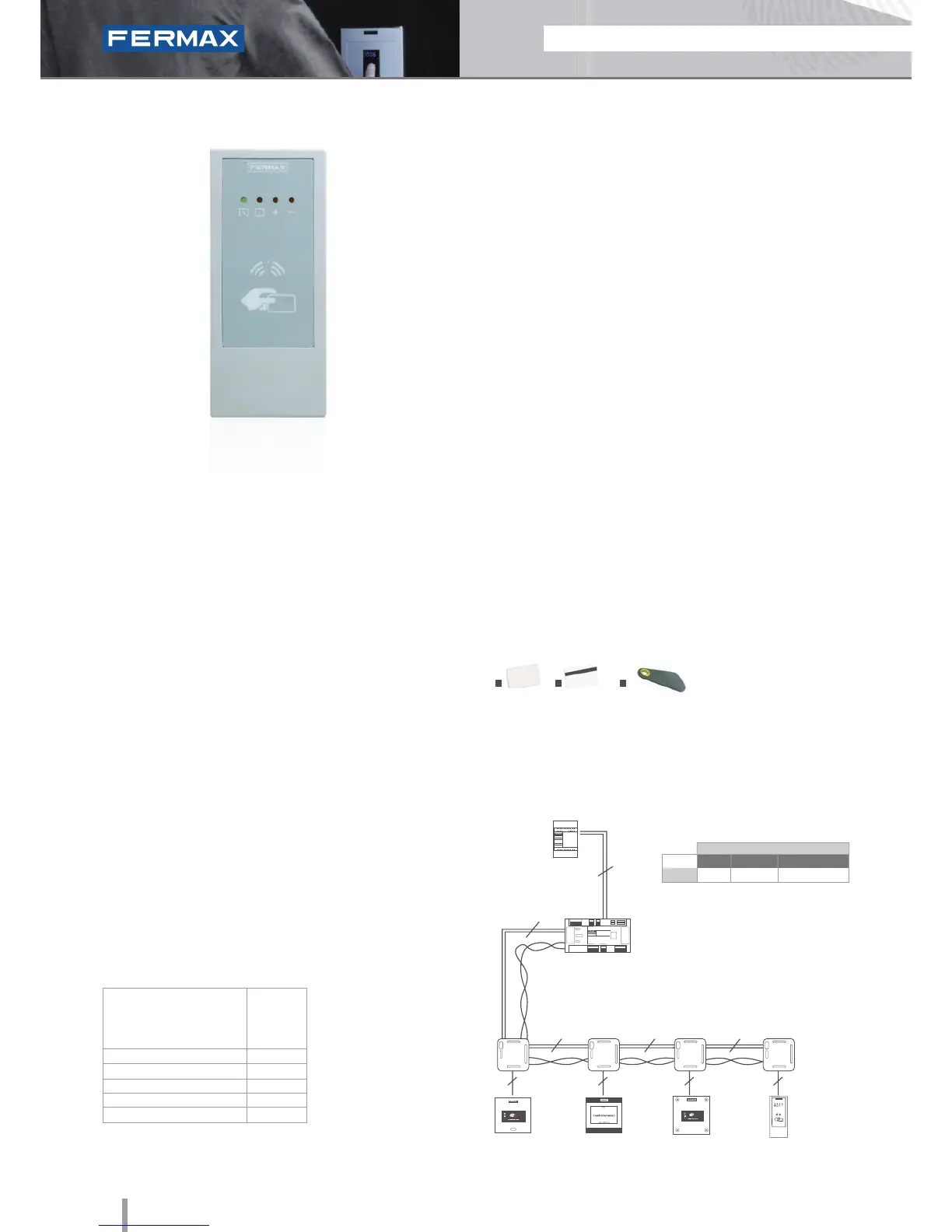

Proximity Reader
Wiegand26-Data/Clock
Loft Proximity
Ref. 4560
• Access control reader which allows the door to be opened
by swiping the proximity card or keyring. Only authorised
cards or keyrings activate the device. Physical contact is not
necessary.
• Surface installation.
• Recommended for interior use.
• Module nished in textured ABS plastic.
• Includes 50cm of wiring.
• Requires a door controller (ref.4420) for its connection
and operation.
• Proximity reader with capacity for up to:
- 1.020 cards/keyrings with MDS central unit (ref.2405).
- 2.048 cards/keyrings with MDS central unit (ref.4410).
• Acoustic and visual confirmation using status LEDs
which advises if the card swiped has been accepted or
rejected.
• Does not require physical reader-card contact.
2cm (card) or 0.5cm (keyring) reading distance.
• Acoustic and visual status data.
• The Wiegand readers (WG) or Data/Clock allow greater
anti-sabotage security given that all the devices are
connected to the door controller and are therefore
outside the range for interference. The door controller
is installed in the interior area (secure area) and the
reader in the exterior.
• The reader can be used with other door controllers
which use Wiegand 26 (WG) or Data/Clock protocols.
• Wiring: 7 wires to the door controller.
• For more information see the door controller's
Technical Features section.
Programming is done using the relevant PC software
to the central unit installed (ref.2405 or ref.4410).
PROGRAMMING
INSTALLATION
Dimensions: (horizontal)x(vertical)x(depth) mm
TECHNICAL FEATURES
Reader Reader Reader Reader
2
2
2
2
2
C.U. (ref.2405 ref.4410)
Twisted Pair
Door controller
(ref.4420)
Power Supply
7
7
7
7
CENTRALISED
1. Card without magnetic strip (ref.23361); 2. Card with magnetic strip (ref.2336);
3. Proximity keyring (ref.44501).
1 2
3
IDENTIFIERS
Door lock recommended:
12Vdc 30708 2888 29580
Normal Normal w/sensor
References
Reinforced
