Fermax Cityline - Mini Bluetooth

26 2011 ACCESS CONTROL
2011 ACCESS CONTROL 27
26 2011 ACCESS CONTROL
2011 ACCESS CONTROL 27
Marine Bluetooth
STAND-ALONE
12Vdc
12Vac
30708
3071
2888
2880
* Door lock recommended.
Normal
References
Reinforced

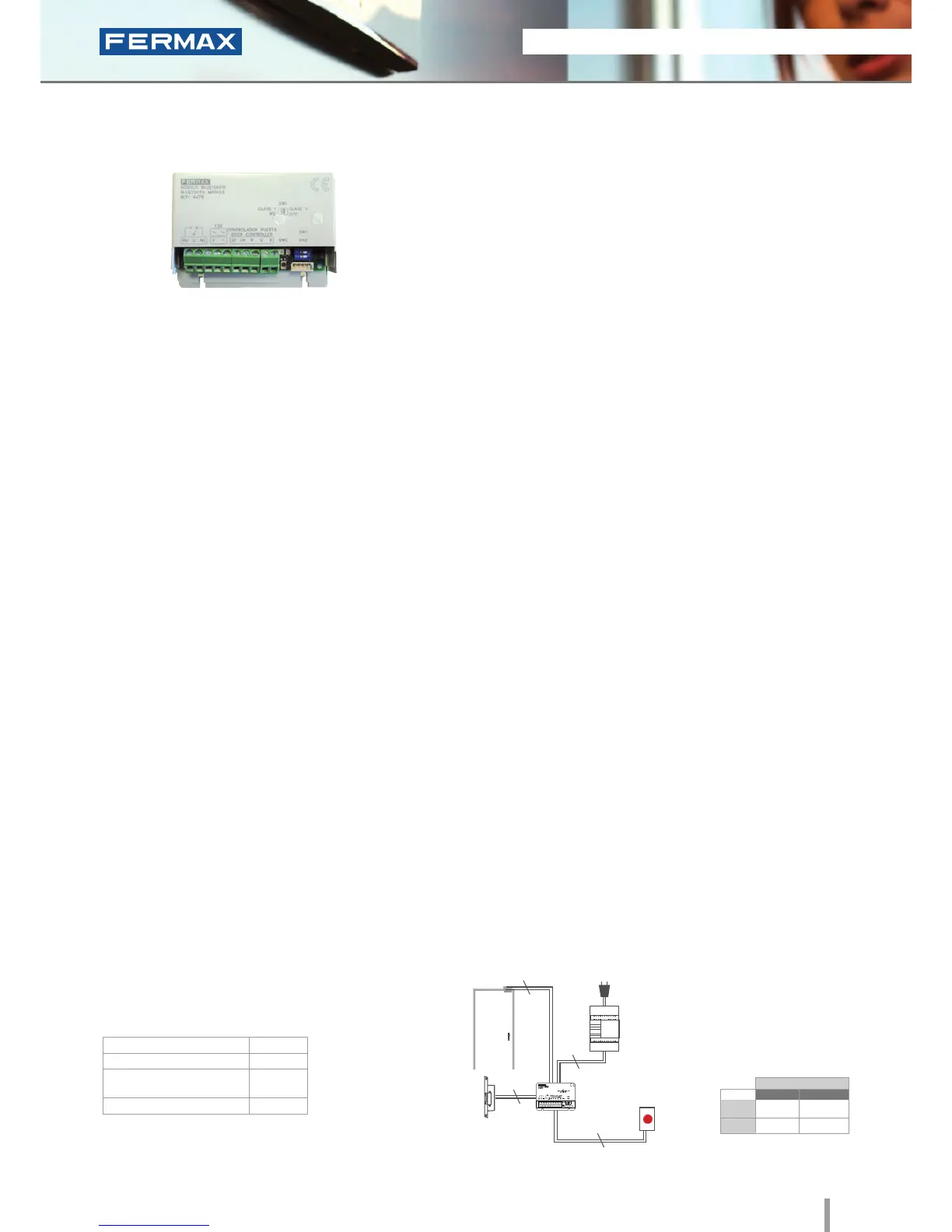

Mini Bluetooth
Ref.4479
Bluetooth
• Access control reader which operates by means of telephones
equipped with Bluetooth technology where the mobile
telephone acts as a user identifier.
• Reduced size module to be setup in the circuit box or in the
FERMAX audio/video door entry panel's flush mounted box.
• Reader and controller integrated within the same module.
• Can operate as a stand-alone or centralised system
(congurable using dipswitch SW1).
Configuration as a STAND-ALONE system:
• Capacity based on chosen operating mode.
Operation options:
- Authorised telephones: automatic door opening or
using a PIN request and conrmation (3 modes).
Capacity: 40 mobile phones.
- Any phone: PIN request. Capacity: Unlimited.
• Congurable reading range: 2m, 9m or up to 20m.
• Congurable repetition time.
PROGRAMMING
TECHNICAL FEATURES
The electronic or video door entry system panels are located
in the building's exterior. The mini-bluetooth module can be
installed internally within the flush mounted box on the panel
for greater ease of use and access security. Another option
would be to set it up internally in the circuit box. The rest of the
devices are connected to this module and they are installed in
the building's interior: power supply and lock-release. An exit
button can be used optionally.
INSTALLATION
Dimensions: (horizontal)x(vertical)x(depth) mm
SPECIFICATIONS
• Dimensions:
• Power Supply (V)
• Consumption (mA) S/lock-release
• Operating Temperature
86x60
12V (ac/dc)
12VAc: 100
12Vdc 50
-10º a 55ºC
This can be done in 2 ways: via a mobile phone with bluetooth
connectivity (master mobile) using a list of commands or
alternatively via a PC/PDA (with a bluetooth connection).
The «FermaxPC» programming software can be downloaded
from www.fermax.com
• Relay lock-release activation.
Programmable from 01 to 99 seconds.
• Exit button input.
• Operation options:
1. Working with a list of authorised phones.
This is a list recorded on the receiver and
determines which telephones can open the door.
List Capacity: up to 40 different mobile telephones.
This working mode has three possible options:
- Automatic Mode (Without PIN): The door opens
when it detects the presence of an authorised
phone.
- Request Confirmation: When the receiver detects
a phone on the list, it requests confirmation to
open the door. The user must press the 1 key and
Accept to open the door.
- Request PIN : When the receiver detects a
phone on the list it requests the PIN (4-digit code
configurable by the administrator).
2. Working without an authorised telephones list
(default conguration). The PIN will be requested for
any mobile phone with activated bluetooth within
range, and only if entered correctly the lock release
will be activated. Unlimited number of mobile phones.
Lock-Release
Power Supply
Ref.4479
230Vac
2
Exit
Button
2
2
2
