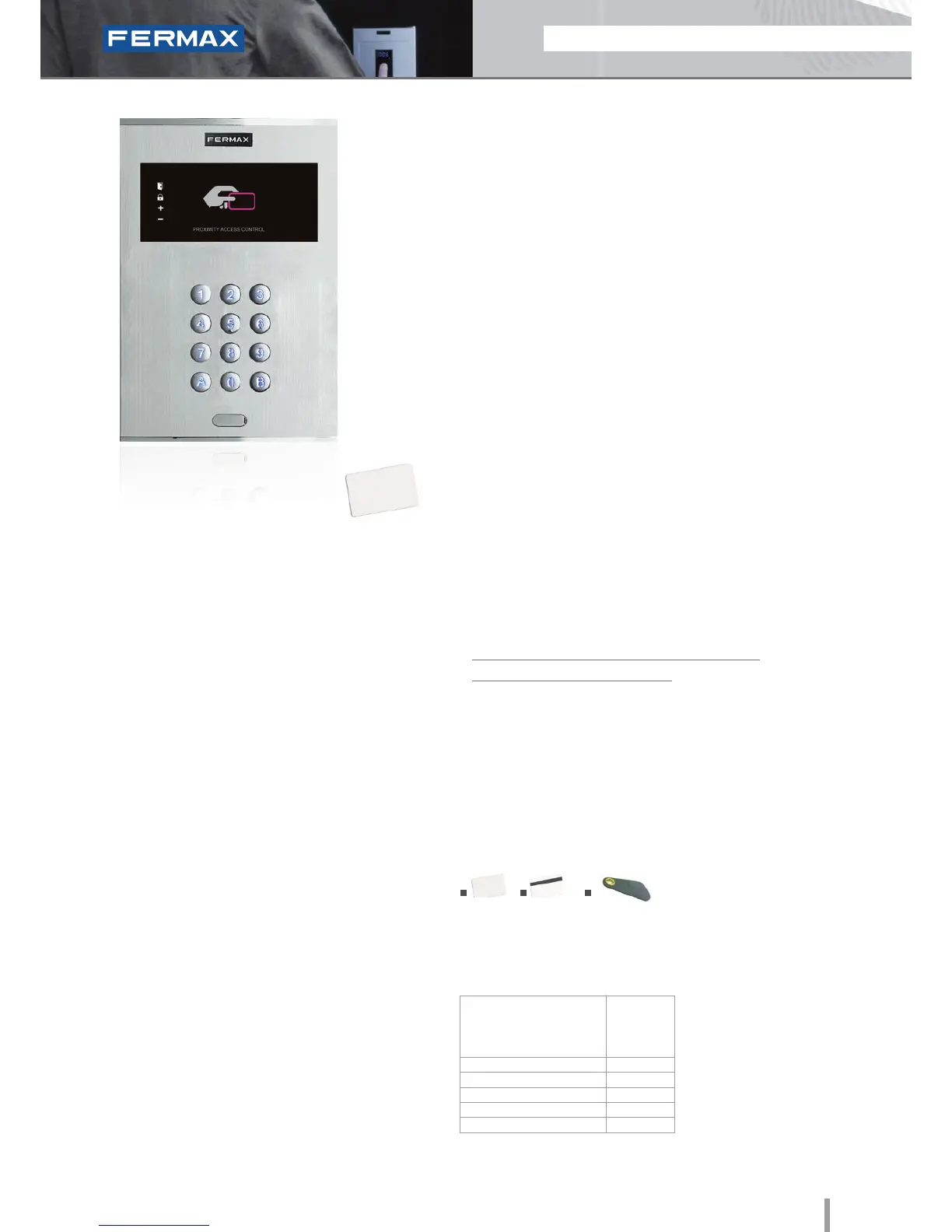

MDS/CAC Cityline
Proximity+Keypad
See “Installation
Diagram for readers
with door controller
(Wiegand 26-Data
Clock).
Proximity and Keypad
Wiegand26-Data/Clock
Proximity + MDS/CAC
Keypad Cityline
Ref. 6995
Programming is done using the relevant PC software
to the central unit installed (ref.2405 or ref.4410).
PROGRAMMING
SPECIFICATIONS
130x199
115x185x45
130x199x33
54
07
12Vdc
90
-15º to 55ºC
• Dimensions:
* Reader
* Flush Mounted Box (included)
* Surface Box (optional)
• Environmental Protection (IP)
• Anti-Shock Protection (IK)
• Power Supply (V)
• Consumption (mA) S/lock-release
• Operating Temperature
Dimensions: (horizontal)x(vertical)x(depth) mm
• Independent Operation:
- Proximity: swipe the proximity card or keyring.
- Keypad: user code (up to 6 digits): «CODE+B»
• System operation for greater security:
- Card+PIN code: swipe the proximity card
or keyring+4 digit PIN code:
«CARD+CODE (4 digits)+B».
• Does not require physical reader-card contact.
5cm (card) or 1.5cm (keyring) reading distance.
• Acoustic and visual status data.
• The Wiegand Readers (WG-Data/Clock) allow
greater anti-sabotage security given that all the
devices are connected to the door controller and
are therefore outside the range for interference.
The door controller is installed in the interior area
(secure area) and the reader in the exterior.
• The reader can be used with other door controllers
which use Wiegand 26 (WG-Data/Clock)
protocols.
• Wiring: 7 wires to the door controller.
• For more information see the door controller's
Technical Features section.
TECHNICAL FEATURES
INSTALLATION
• Double technology access control reader: proximity and keypad.
• Integrated within the Cityline aluminum panel.
• Flush mounted (ref.8854, including box) or surface installation
(ref.7064, optional).
• Recommended for interior and exterior use.
• Requires a door controller (ref.4420) for its connection and
operation.
• Operates independently or as a system for greater security.
• Independent Operation:
- Proximity: allows the door to be opened when a card is swiped
or keyring is used.
- Keypad: allows the door to be opened when a pre-programmed
4 to 6 digit code is entered.
• System operation for greater security: card + PIN code (4 digits only).
• Proximity reader which uses its incorporated dipswitch conguration
(SW2) to allow it to function as a stand-alone or centralised system.
Configuration as a CENTRALISED system with
Wiegand26-Data Clock protocol:
• Capacity of up to (based on chosen operating mode):
- 1.020 cards/keyrings/codes/card+PIN codes with the
MDS central unit (ref.2405).
- 2.048 cards/keyrings/codes/card+PIN codes with the
CAC central unit (ref.4410).
• Acoustic and visual confirmation using status LEDs which
advises if the card swiped has been accepted or rejected.
CENTRALISED
1. Card without magnetic strip (ref.23361); 2. Card with magnetic strip (ref.2336);
3. Proximity keyring (ref.44501).
1 2
3
IDENTIFIERS
