• Lock-release button input, door sensor and
lock-release relay (C, NO, NC, potential
free).
• Reader - Central Unit Wiring: 2 wires (power
supply) + shielded twisted pair (data). On a
system with various readers these can be
connected in cascade.
• Includes a dipswitch for conguration:
- Door Number: the access/door number
(0..31).
- Lock-Release Time (secs.):
* On MDS via dipswitch.
* On CAC software conguration.
• The lock-releases can be connected directly
to the reader and for systems with maximum
security use the relay decoder.
• To enter a user code press: «0+CODE».
Dimensions: (horizontal)x(vertical)x(depth) mm
SPECIFICATIONS
• Reader Dimensions
• Environmental Protection (IP)
• Anti-Shock Protection (IK)
• Power Supply (V)
• Consumption (mA) S/lock-release
• Operating Temperature
105.2x95
54
07
12Vdc
70
-15º to 55ºC
TECHNICAL FEATURES
MDS/CAC

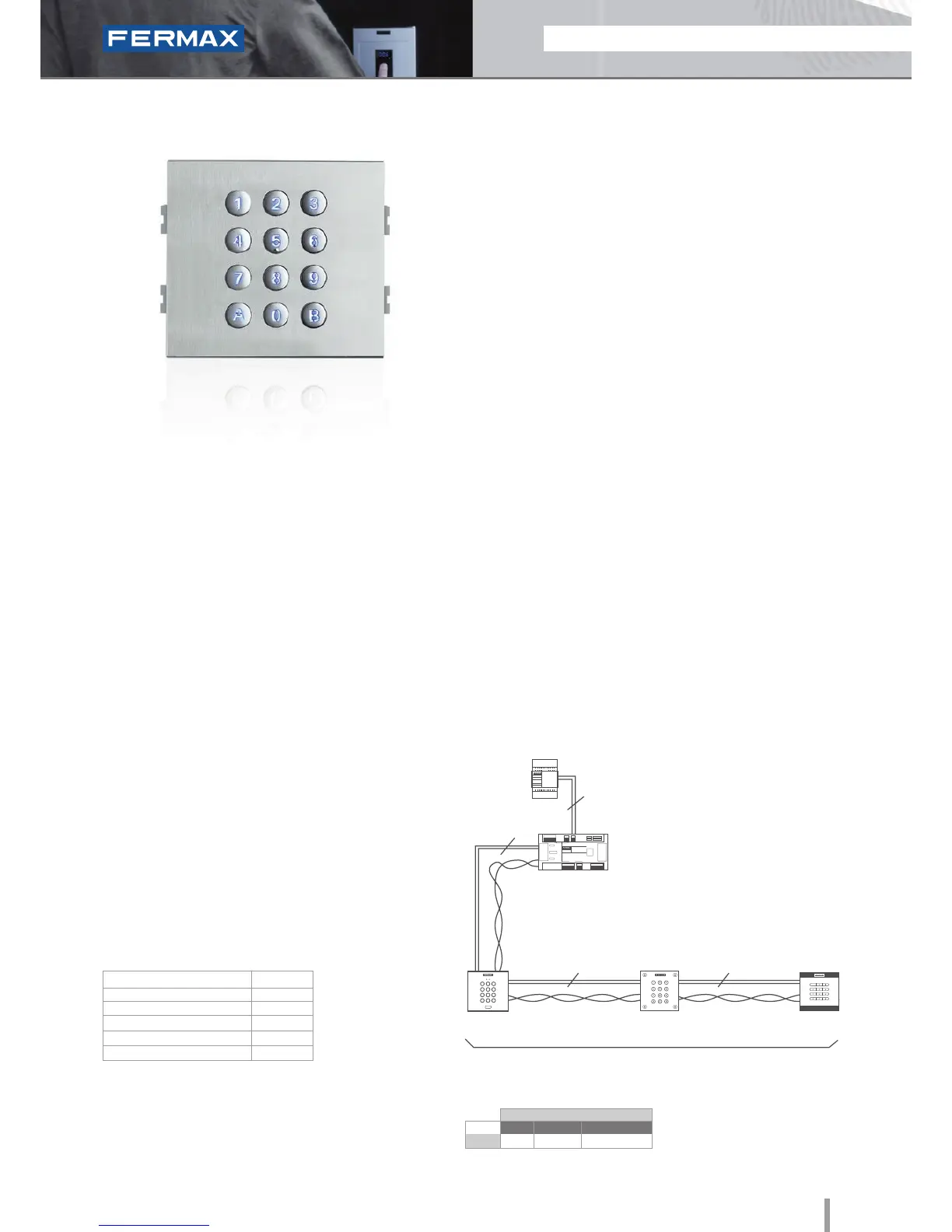

W Skyline Keypad
Ref.7453
• Access control keypad which allows the door to be opened
when a pre-programmed code of up to 6 digits is entered.
• Access control module to be integrated within Skyline
audio/video door entry system panels.
• Blue backlit zamak keypad.
• Recommended for interior and exterior use.
• Reader and controller integrated within the same module.
• Keypad reader with capacity for up to:
- 1.020 user codes with MDS central unit (ref.2405).
- 2.048 user codes with CAC central unit (ref.4410).
• Length 4 to 6 digits.
• Acoustic confirmation on pressing a button or to indicate
if the code entered has been accepted/rejected.
Programming is done using the PC software relevant to the
central unit installed (ref.2405 or ref.4410).
PROGRAMMING
INSTALLATION
Keypad
Reader
Reader Reader
Up to 32 readers
2
2
2
2
Twisted Pair
C.U. (ref.2405 or ref.4410)
Twisted Pair
Power Supply
Twisted Pair
CENTRALISED
Door lock recommended:
12Vdc 30708 2888 29580
Normal Normal w/sensor
References
Reinforced
