• Lock-release button input, door sensor and lock-
release relay (C, NO, NC, potential free).
• Reader - Central Unit Wiring: 2 wires (power supply)
+ shielded twisted pair (data). On a system with
various readers these can be connected in cascade.
• Includes a dipswitch for conguration:
- Door Number: the access/door number (0..31).
- Lock-Release Opening Time (secs.):
* On MDS via dipswitch.
* On CAC software conguration.
• The lock-releases can be connected directly to the
reader and for systems with maximum security use
the relay decoder.
• To enter a user code press: «0+CODE»
Dimensions: (horizontal)x(vertical)x(depth) mm
SPECIFICATIONS
• Dimensions:
* Reader
* Flush Mounted Box
* Surface Box
• Environmental Protection (IP)
• Anti-Shock Protection (IK)
• Power Supply (V)
• Consumption (mA) S/lock-release
• Operating Temperature
150x180
130x160x55
154x184x55
54
09
12Vdc
70
-15º to 55ºC

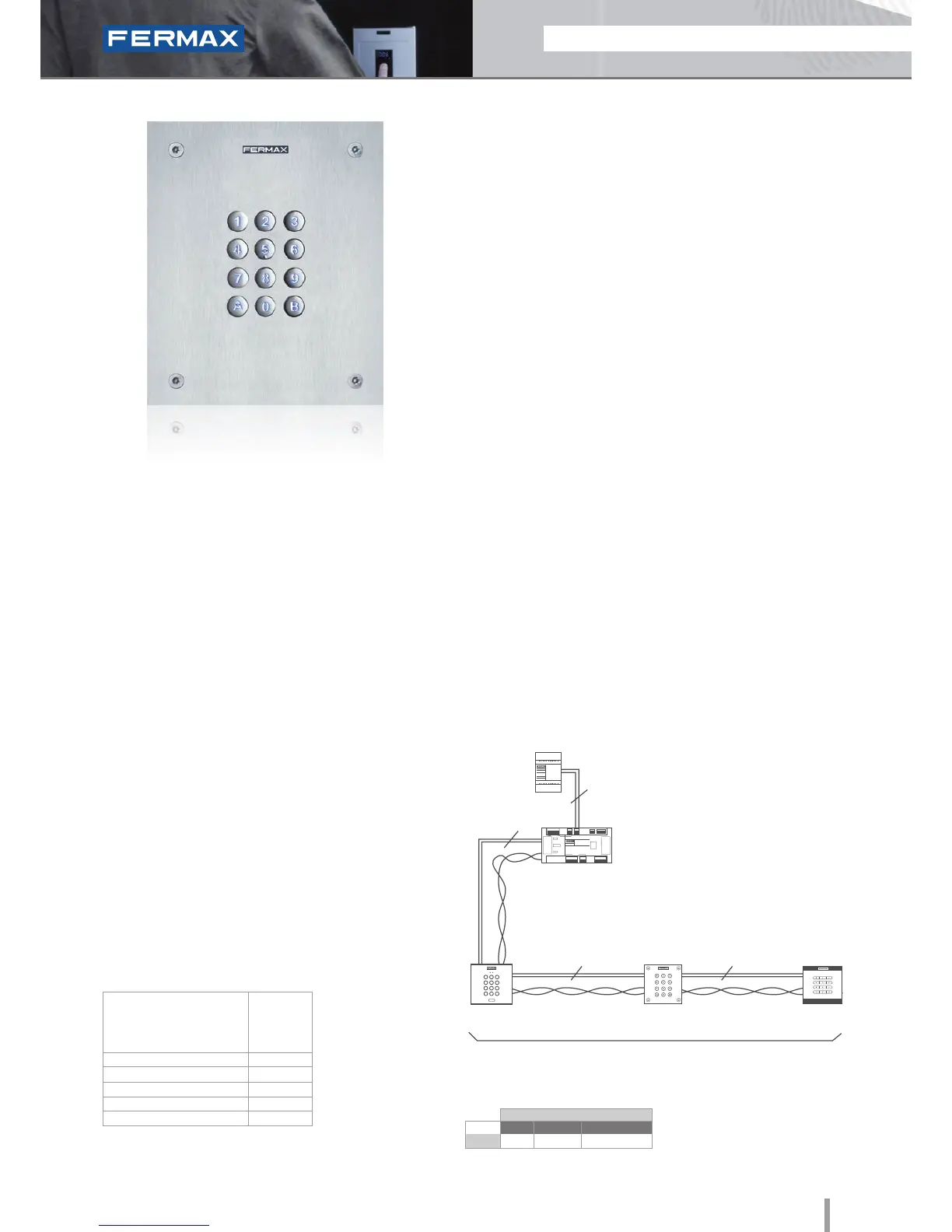

TECHNICAL FEATURES
MDS/CAC
Marine Keypad
Ref.4696
• Access control keypad which allows the door to be opened
when a pre-programmed code of up to 6 digits is entered.
• Integrated within a 2.5mm Marine stainless steel panel.
• Blue zamak backlit keypad.
• Flush mounted (ref.4641, including box) or surface
installation (ref.4701, optional).
• Recommended for interior and exterior use.
• Reader and controller integrated within the same module.
• Keypad reader with capacity for up to:
- 1.020 user codes with MDS central unit (ref.2405).
- 2.048 user codes with CAC central unit (ref.4410).
• Length 4 to 6 digits.
• Acoustic confirmation on pressing a button or indicating
that the code entered has been accepted/rejected.
Programming is done using the PC software relevant to the
central unit installed (ref.2405 or ref.4410).
PROGRAMMING
Keypad
INSTALLATION
Reader
Reader Reader
Up to 32 readers
2
2
2
2
Twisted Pair
C.U. (ref.2405 or ref.4410)
Twisted Pair
Power Supply
Twisted Pair
CENTRALISED
Door lock recommended:
12Vdc 30708 2888 29580
Normal Normal w/sensor
References
Reinforced
To Next Page
