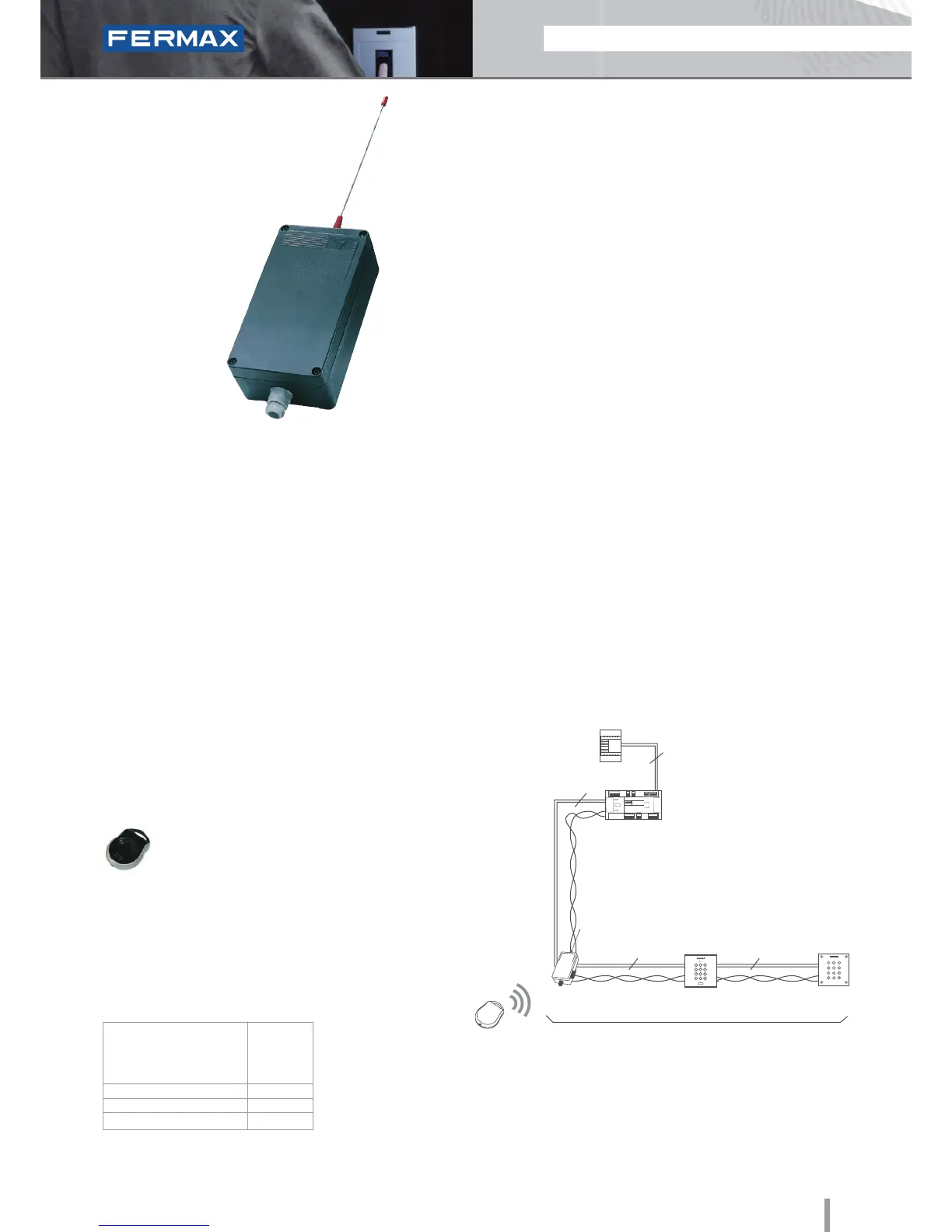

MDS/CAC RF Receiver
Ref.1065
Radio Frequency
• 433.92 MHz mono channel receiver.
• Digital technology.
• RF receiver with capacity for up to:
- 1.020 codes with MDS central unit (ref.2405).
- 2.048 codes with CAC central unit (ref.4410).
• Allows the door to be opened when a code is received
from the digital emitter (ref.24651) or dual emitter
(ref.25511), pre-programmed.
• Assembled in an ABS air tight box (IP65).
• Recommended for interior and exterior use.
• Reader and controller integrated within the same module.
Their location will be dependent on their range:
• To be installed in a vertical position so that the rigid
antenna remains on top of the receptor.
Includes a 25cm rigid receiver.
• Don't install it close to electrical wires or metallic objects
which will effect their range and make it more difficult for
them to operate.
Programming is done using the relevant PC software
to the central unit installed (ref.2405 or ref.4410).
INSTALLATION
PROGRAMMING
TECHNICAL FEATURES
• Lock-release button input, door sensor input and lock-
release relay.
• Reader-Central Unit Wiring: 2 wires (power supply) +
shielded twisted pair (data). On a system with various
readers these can be connected in cascade.
• Includes a dipswitch for conguration:
- Door Number: the access/door number (0..31).
- Remote Control Button (button 1 or button 2).
• Lock-Release Opening: opening time (seconds)
- On MDS via dip switch.
- On CAC software conguration.
• The lock-release can be connected directly to the
reader and for maximum security systems use relay
decoders.
Dimensions: (horizontal)x(vertical)x(depth) mm
SPECIFICATIONS
• Dimensions:
• Environmental Protection (IP)
• Receiving frequency:
• Sensitivity:
• Power Supply ( V ).
• Consumption (mA) S/lock-release
• Operating Temperature
90x165x55.
65
433.92Mhz
3 mV.
12Vdc
200
-10ºC to 60ºC
See “Installation Diagram for readers with integrated controller
(MDS/CAC)”.
Receiver
ref.1065
RF emitter ref.24651
or ref.25511
Reader Reader
Up to 32 readers
2
2
2
2
Twisted Pair
C.U. (ref.2440 or ref.2405)
Twisted Pair
Power Supply
Twisted Pair
CENTRALISED
COMPATIBLE WITH:
Digital emitters (ref.24651) or duals (ref.25511).
