7 Speed mode and force/torque mode
7.1 Speed mode
7.1.1 Function: Speed adjustment
In the speed mode, the motor controller receives the speed setpoint value via the control interfac e
(fieldbus/analogue input/Festo Configuration Tool (FCT)). The regulator cascade (speed and current
regulator) processes the deviation between the “speed setpoint value” and the “actual speed value”
and thus controls the output stage and the connected motor. The speed setpoint value ramp can op-
tionally be activated.
Current controlSpeed regu-
lator
Output stage
M
Motor
Motor encoder
Actual speed value
Actual current value
––
++
Speed setpoint value
Current setpoint
value
CMMS/CMMD
Control section Power section
Control interface
Speed setpoint value ramp

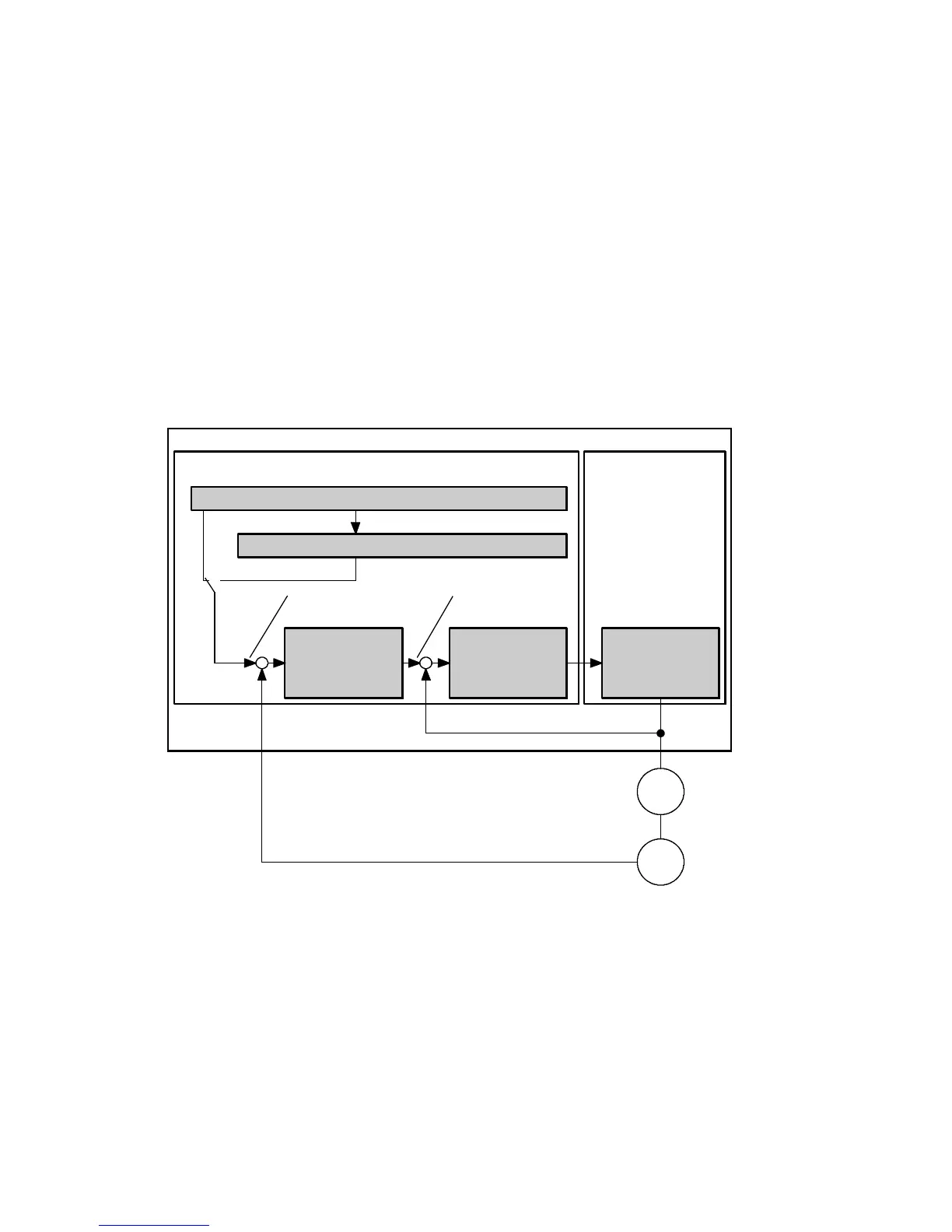

Fig. 7.1 Overview: S peed adjustment
