5.1.5 Configuring fieldbus/firmware functions via DIL switch
The f ollowing fieldbus/firmware functions can be co nfigured via the DIL switches.
Overview: DIL switc hes [S1.1…12]
1 S1.1…7
2 S1.8
4 S1.11
3 S1.9…10
5 S1.12
On
Off
Switch position
1 Fieldbus address/MAC-ID configuration
2 Firmware download activation from the
memory card
3 Data rate configuration (CAN bus/DeviceNet)
4 CAN bus activation
5 Terminating resistor a ctivation (CAN bus)

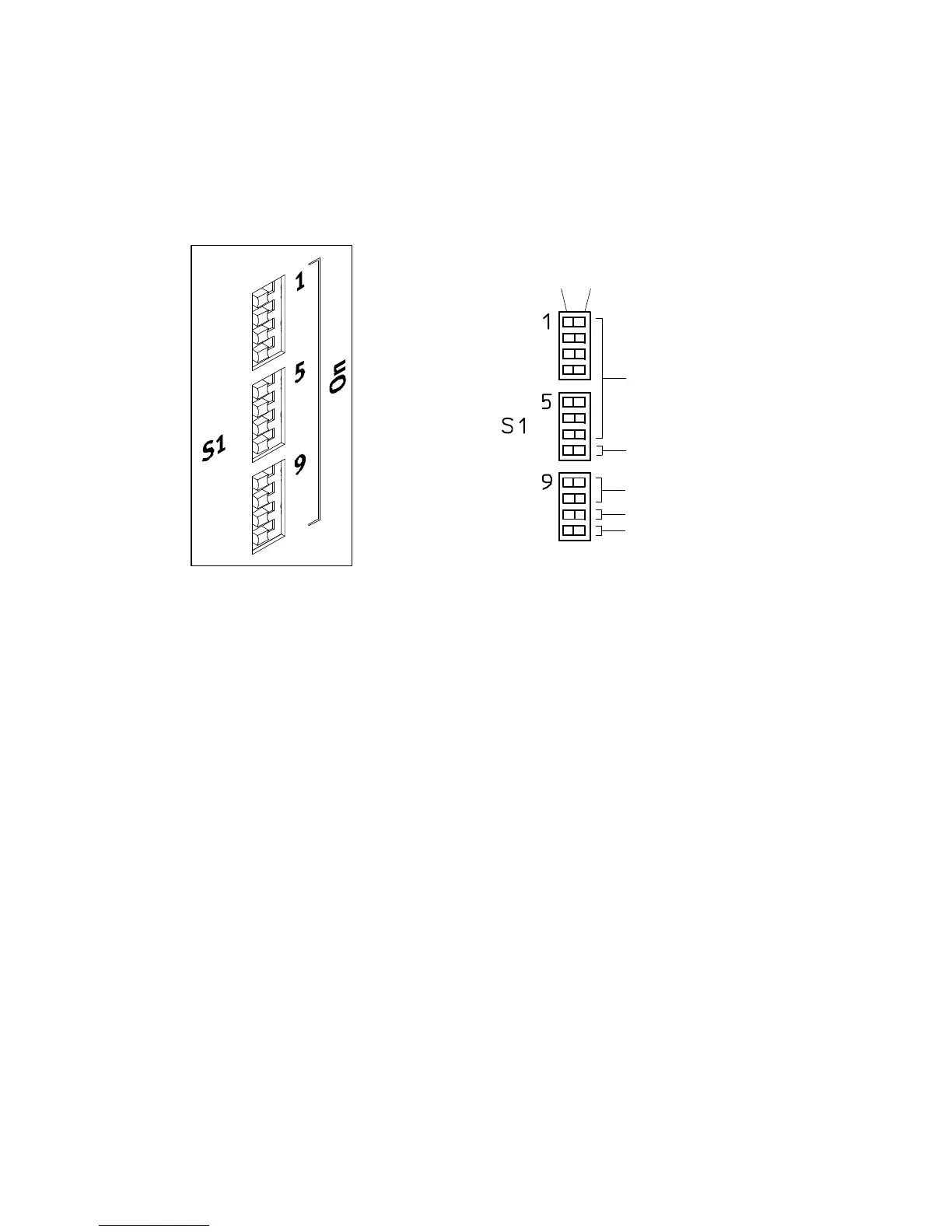

Fig. 5.2 Overview: DIL switches [S1.1…12]
