5 Commissioning
Festo – GDCP-CMMS/D-FW-EN – 1404NH – Engli sh 111
5.5.2 FCT master control over the motor controller
The timing diagram shows the transfer of master control from the “digital inputs” control interface to
the Festo Configuration Tool ( FCT).

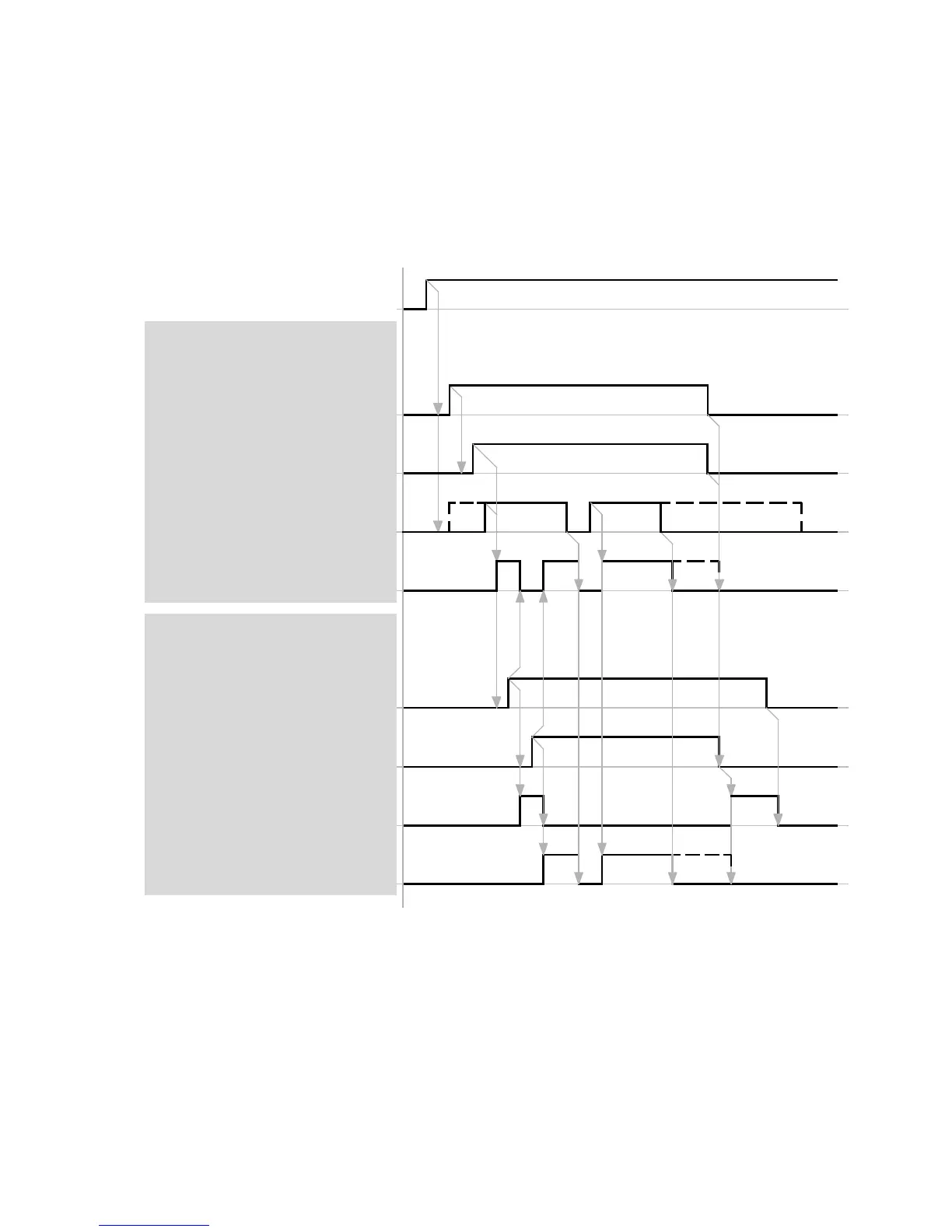

Timing diagram: FCT master control over the motor c ontroller
“Enable” active
Control
Parameterise
“FCT” active
Output stage enable
(DIN4)[X1.21]
Festo Configuration Tool (FCT),
Device control
Digital inputs (DIN)
Power ON
Controller enable
(DIN5)[X1.9]
Stop
(DIN13)[X1.15]
Control via DIN
Fig. 5.17 Timing diagram: FCT master c ontrol over the motor controller
