Festo CMMS-AS-C4-3A-G2 Description

9 Opera tional functions
200 Festo – GDCP-CMMS/D-FW-EN – 1404NH – English
9.2 Flying measurement (sampling)
9.2.1 Function: Flying measurement
In flying measurement, the “ac tual position” measured value c an be stored in the motor controller
through the fast sample input (DIN9)[X1.11] [X1.1.11/X1.2.11]. With the configured edge of the sample
input, the current actual position of the drive is written to the sa mple memory. A higher-order controller
can read the last stored actual position via the active fieldbus (CANopen/PROFIBUS DP/DeviceNet/
RS485). The last stored actual position is displayed in the “Project output” FCT window in the online
tab “Operation” in the dynamic data.
Activate flying meas urement via digital input
The sample input (DIN9) is only active and configurable for the control interface
“CANopen/PROFIBUS DP/DeviceNet/RS485”.
X4
CMMS/CMMD
CANOpen
PROFIBUS DP
Flying measurement
Fieldbus
Control section
X5
EXT
EXT1
DeviceNet
FCT
Sample memory
“Actual position”
X5RS485
X1
X1.1
X1.2
Inputs
Sample input
X2
Motor encoder
Actual position

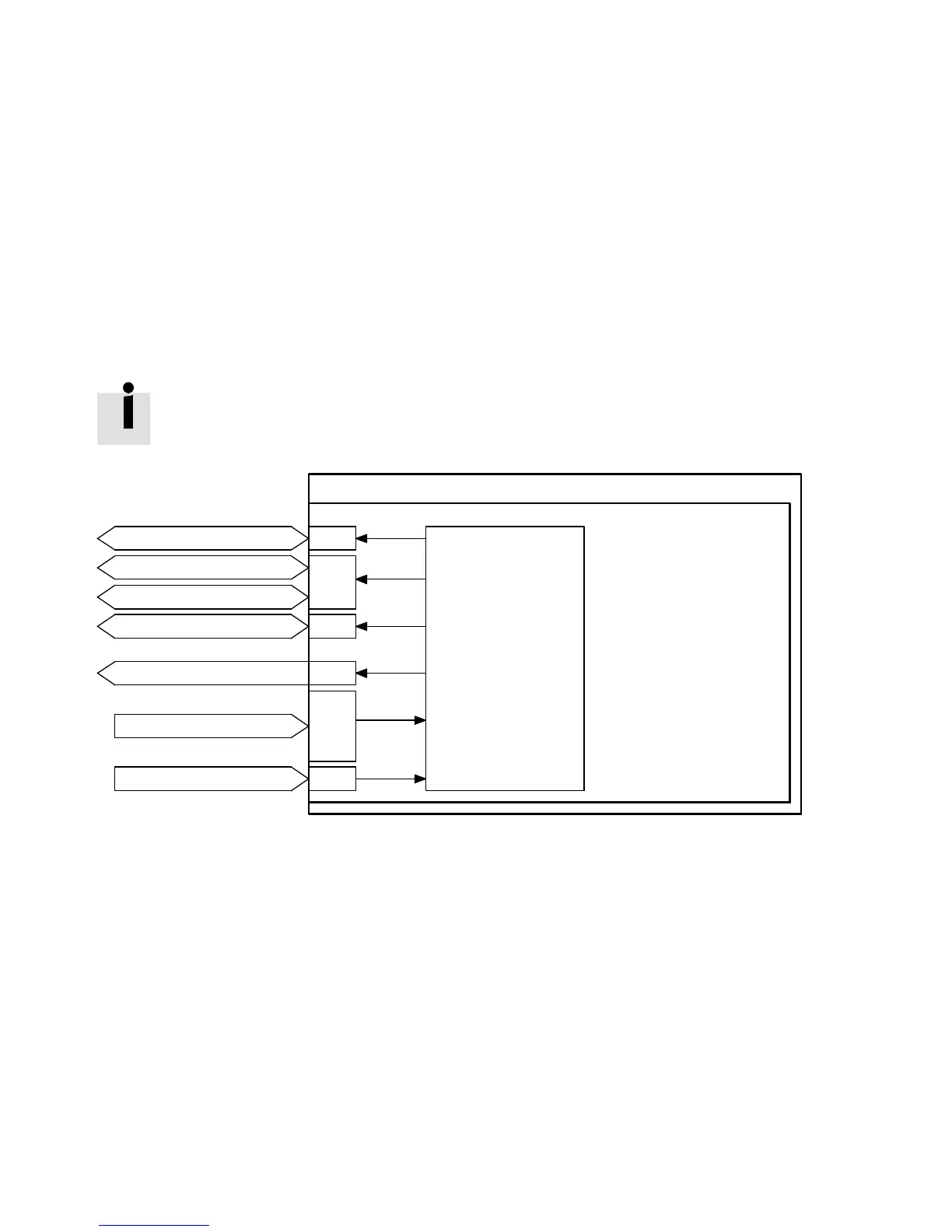

Fig. 9.3 Control flying measurement via digital input

Festo CMMS-AS-C4-3A-G2 Specifications

General

Brand	Festo
Model	CMMS-AS-C4-3A-G2
Category	Controller
Language	English
