3 Control interfaces
64 Fe sto – GDCP-CMMS/D-FW-EN – 1404NH – English
3.2.9 Message “Remaining distance”
The course of the digital output signal “Remaining distance message” is determined via the message
“Rema ining distance”.

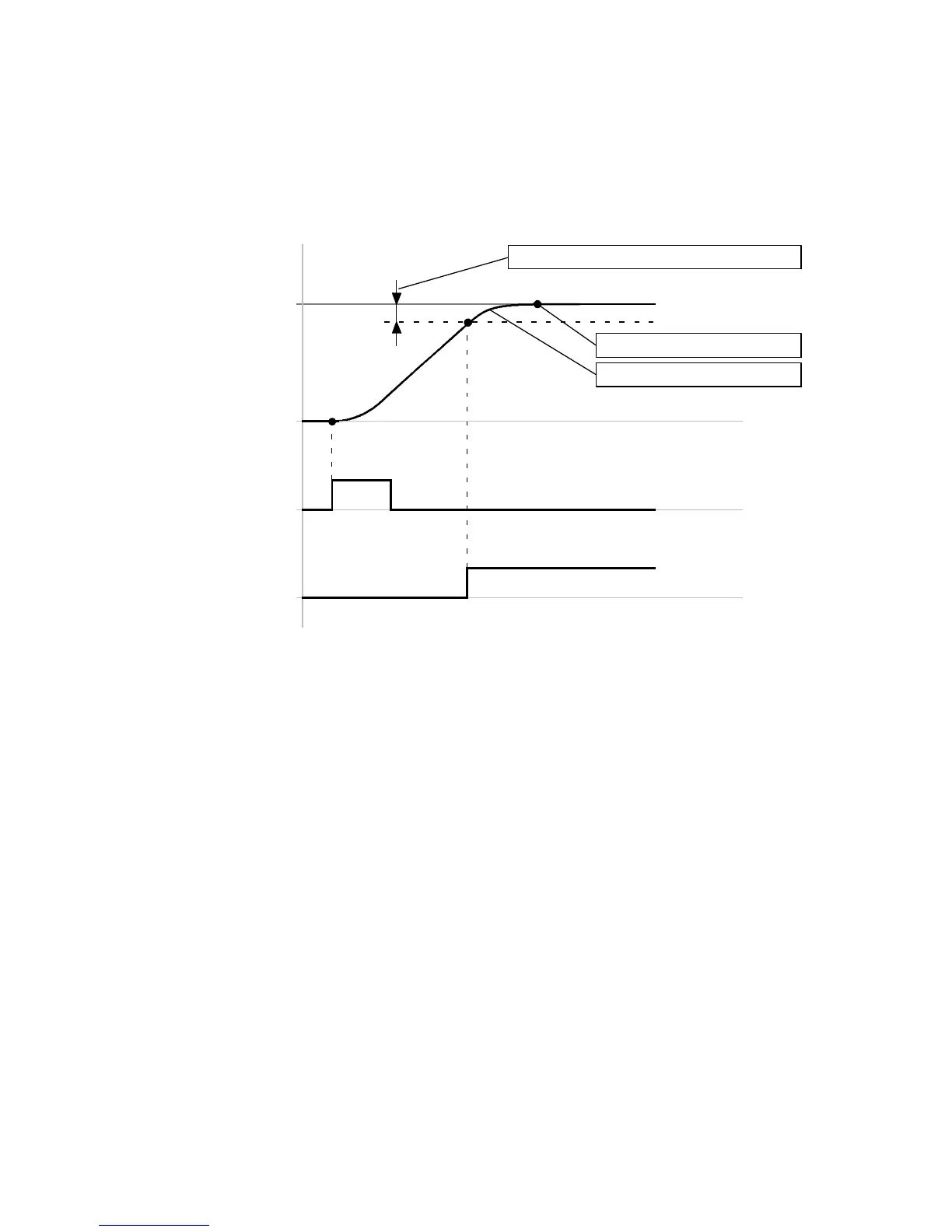

Timing diagra m: Message “Remaining distance”
Remaining distance mes-
sage
(DOUT1/2/3)[X1.12/25/13]
Parameter “position”
Δs
Message window “Remaining distance”
Start
(DIN8)[X1.23]
Actual position
Target position
Δs = +/– … mm (linear axis) or
= +/– … R (rotative axis)
(FCT: Dependent on the parameter “Message window” in the message “Remaining distance“)
Fig. 3.10 Timing diagram: Message “Rema ining distance”
