9 Opera tional functions
204 Festo GDCP-CMMS/D-FW-EN 1404NH English

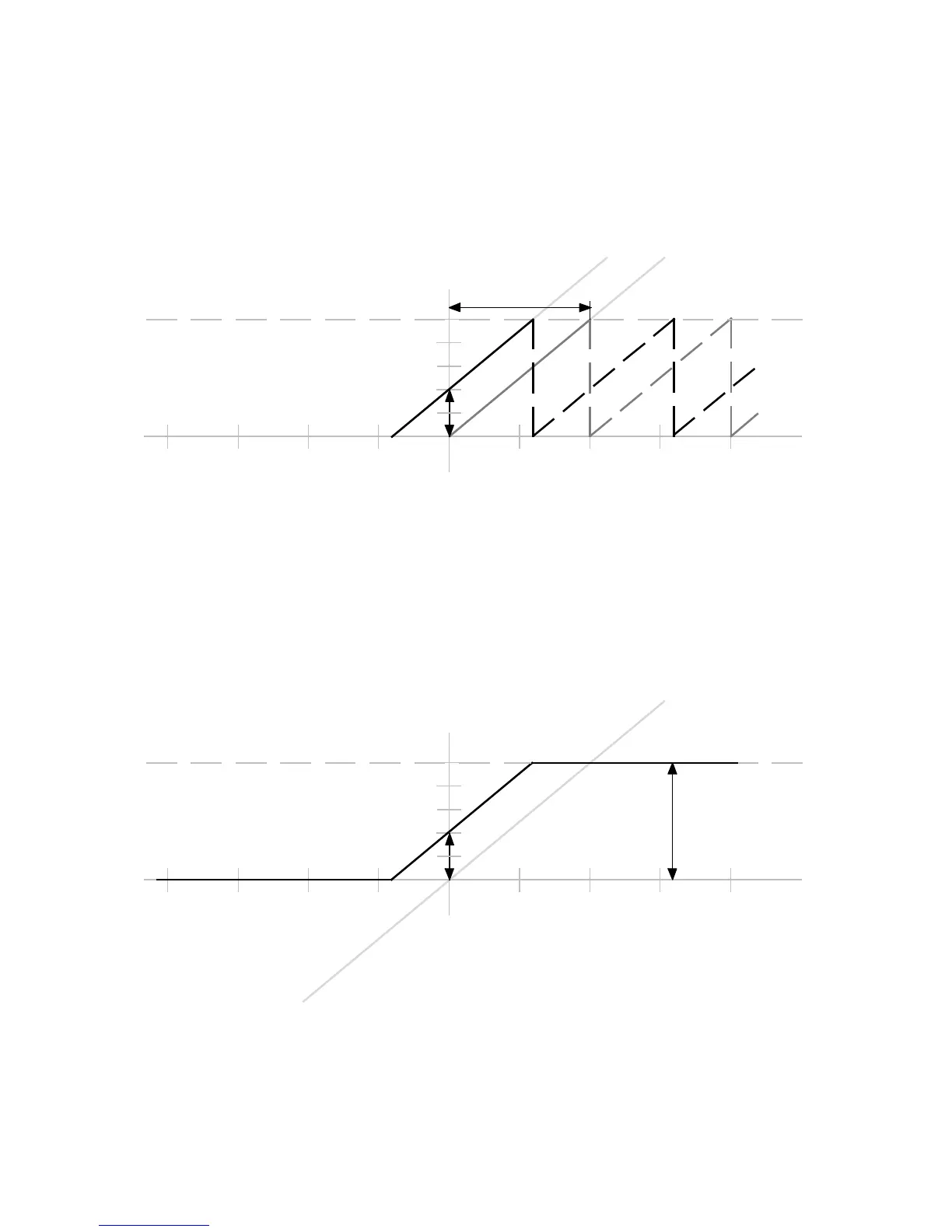

Analogue monitor with offset adjustment
The diagram shows the course of the analogue monitor signal as a function of the parameters scaling/
offset”.
The analogue monitor signal “speed setpoint value” is illustrated here as an example.
2
2
–200–300
–400
10
8
6
4
[V]
–100 200 300 400100
[mm/S]
1
1 Offset = 4 V DC
2 Scaling: Speed setpoint value = 200 mm/s
Fig. 9.7 Analogue monitor with offset adjustment
Analogue monitor with offset adjustment and numeric overflow limitation
The diagram shows the course of the analogue monitor signal with offset adjustment and ac tive numer-
ic overflow limitation.
2
–200–300
–400
10
8
6
4
[V]
–100 200 300 400100
[mm/S]
1
2
1 Offset = 4 V DC
2 Numeric overflow limitation active
Fig. 9.8 Analogue monitor with offset adjustment and numeric overflow limitation
