10 Service
Festo – GDCP-CMMS/D-FW-EN – 1404NH – Engli sh 213
Display
1)
Function
Operating modes
Pxxx Positioning mode, record number x x x
000 – No positioning record active
001...063 – Positioning record 001 ... 063 active
064 – Manual travel via FCT or FHPP direct record (direct operation)
070/071 –Jog+/jog–
PHx Homing phase x
0 – Searching travel to the primary destination (limit switch or stop)
1 – Crawl to the reference point
2 – Travel to the axis zero point
Rotating
outside
segments
Speed mode (speed adjustment):
Display changes corresponding to rotor position and speed.
Middle
segment
Controller enable active (motor is energised).
I Force/torque mode (c urrent control)
Safety function
H Two-channel safety function requested ( DIN4 [ X1.21] and Rel [X3.2] )
Error/warning messages
Exxy Error (E = error)
Number: Two-position main index (x x), single-position sub-index (y)
Example: E 0 1 0  appendix A.
–xxy– Warning
Number: Two-position main index (x x), single-position subindex (y).
Example:-170- appendix A.
1) Several characters are displayed one after the other.

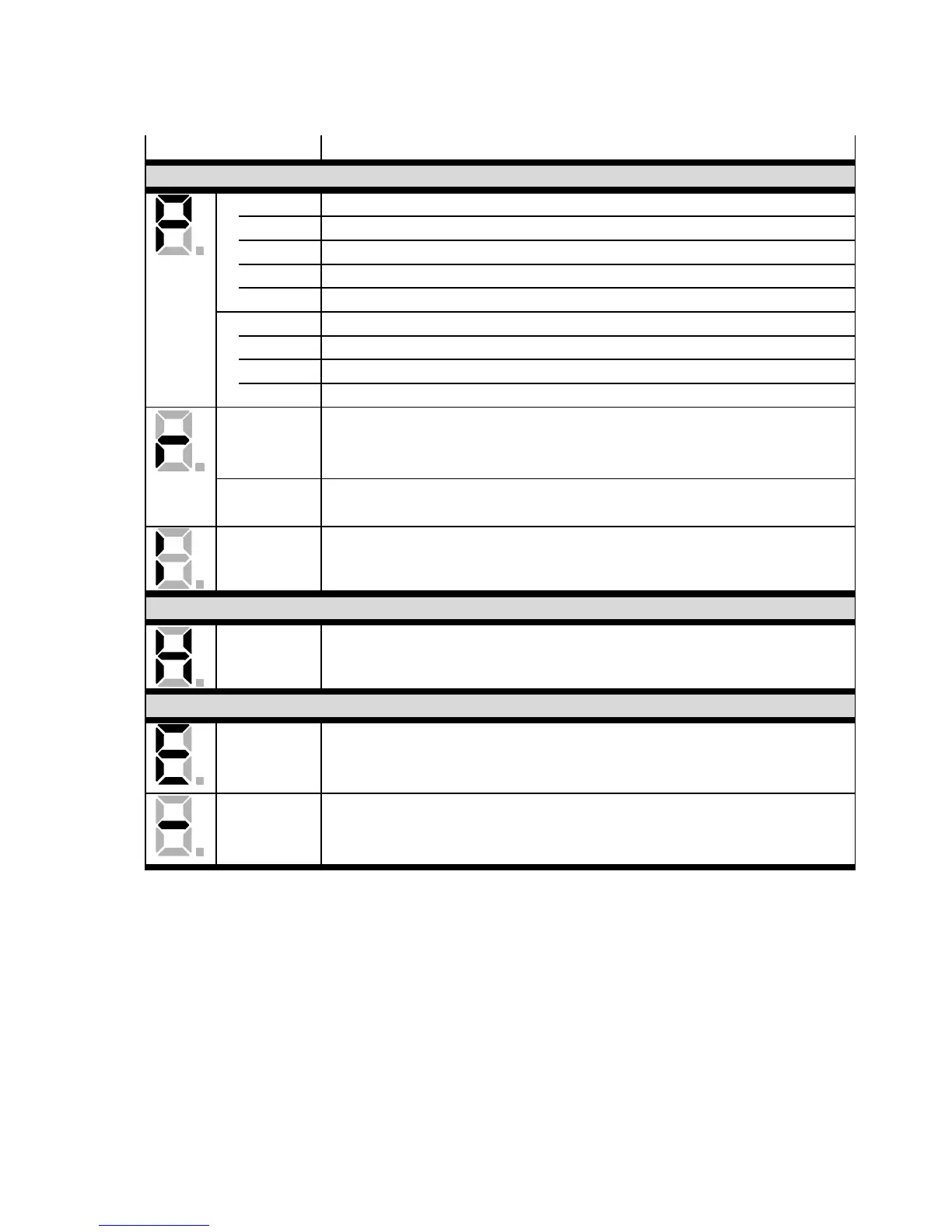

Tab. 10.3 Operating mode and error display of the seven-se g ments display
