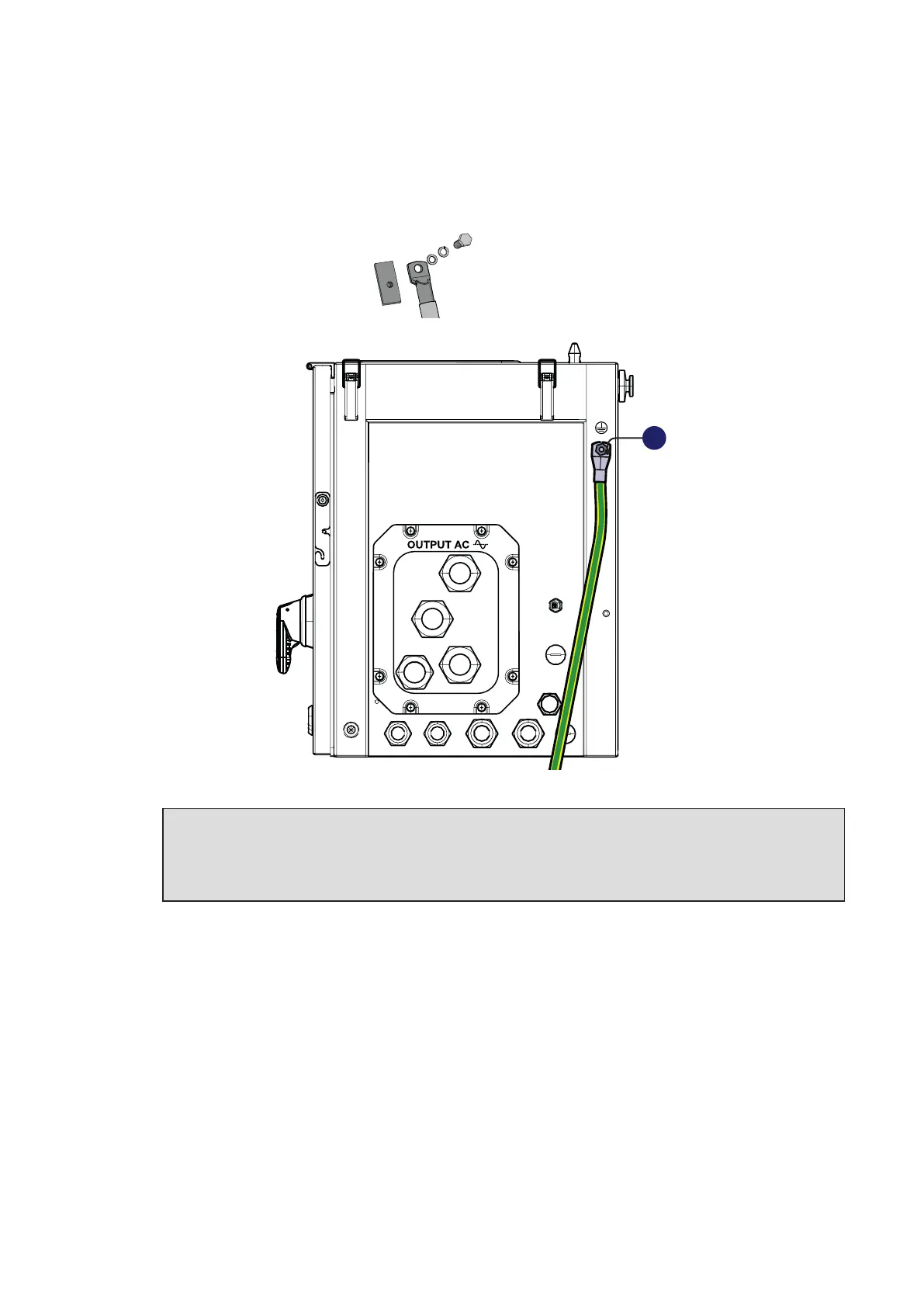

External ground connection
• Fix the protective earth cable lug to the protection earth connection point (ext.) (10) (this is the same
thread for handles (04)) using the washers and M8 bolt provided in the wiring box installation kit, as
shown in the following diagram:
1 = cable lug
2 = flat washer
3 = spring washer
4 = M8 bolt
1
2
3
4
10
ATTENTION – A The cable lug must be installed with a tightening torque of 15.2 Nm.
ATTENTION – A Before connecting the inverter to AC or DC sources use a multimeter to
test the conductivity of the earth connections between the protection earth connection point
(ext.) (10) and a handles thread (04) on the housing of power module.
