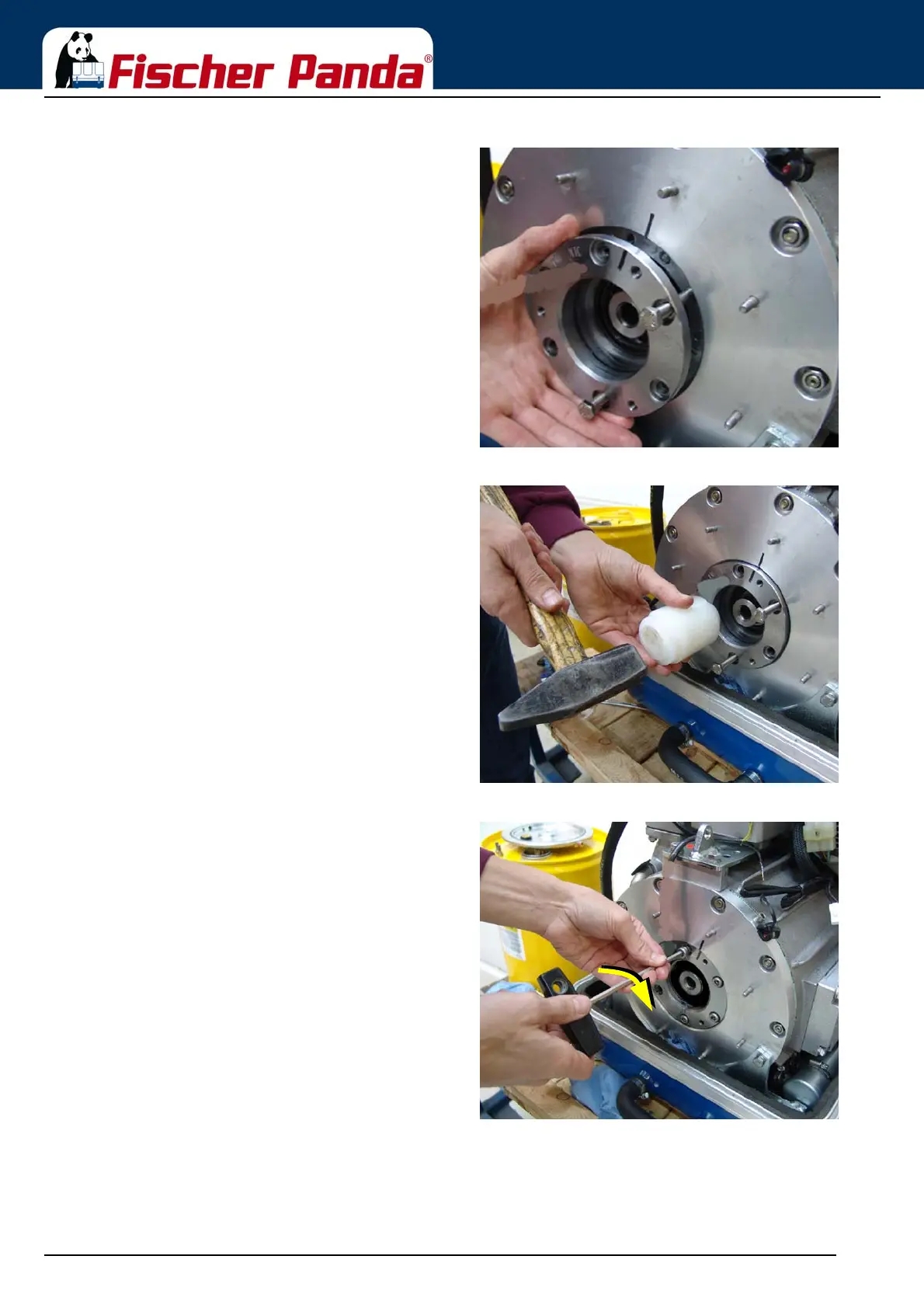

Fig. 7.10.1.3-2: Bearing case moutingWith the other hand, loosely screw in the ejector screws
as guide line.
Sample Picture
Fig. 7.10.1.3-3: Press fit bearing caseCarefully press the bearing case with a soft-head
hammer (or a hammer plus mandrel) in its hub.
Thereby relocated mandrel rotatory after each hit to
avoid canting.
Otherwise there is a risk that the case is slightly canted
because of the material which is brought up by the
ejector screws.
A canted bearing case causes a canted ball bearing,
which will
wear out quite fast!
Sample Picture
Fig. 7.10.1.3-4: ’Attach bearing caseTighten fixing bolts M8 with 22 to 25 Nm (Allen key SW6).
Now carefully press the bearing case with a soft-head
hammer (or a hammer plus mandrel) in its hub.
Thereby relocate mandrel rotatory after each hit to avoid
canting.
Otherwise there is a risk that the case is slightly canted
because of the material which is brought up by the
ejector screws.
A canted bearing case causes a canted ball bearing,
which will
wear out quite fast!
