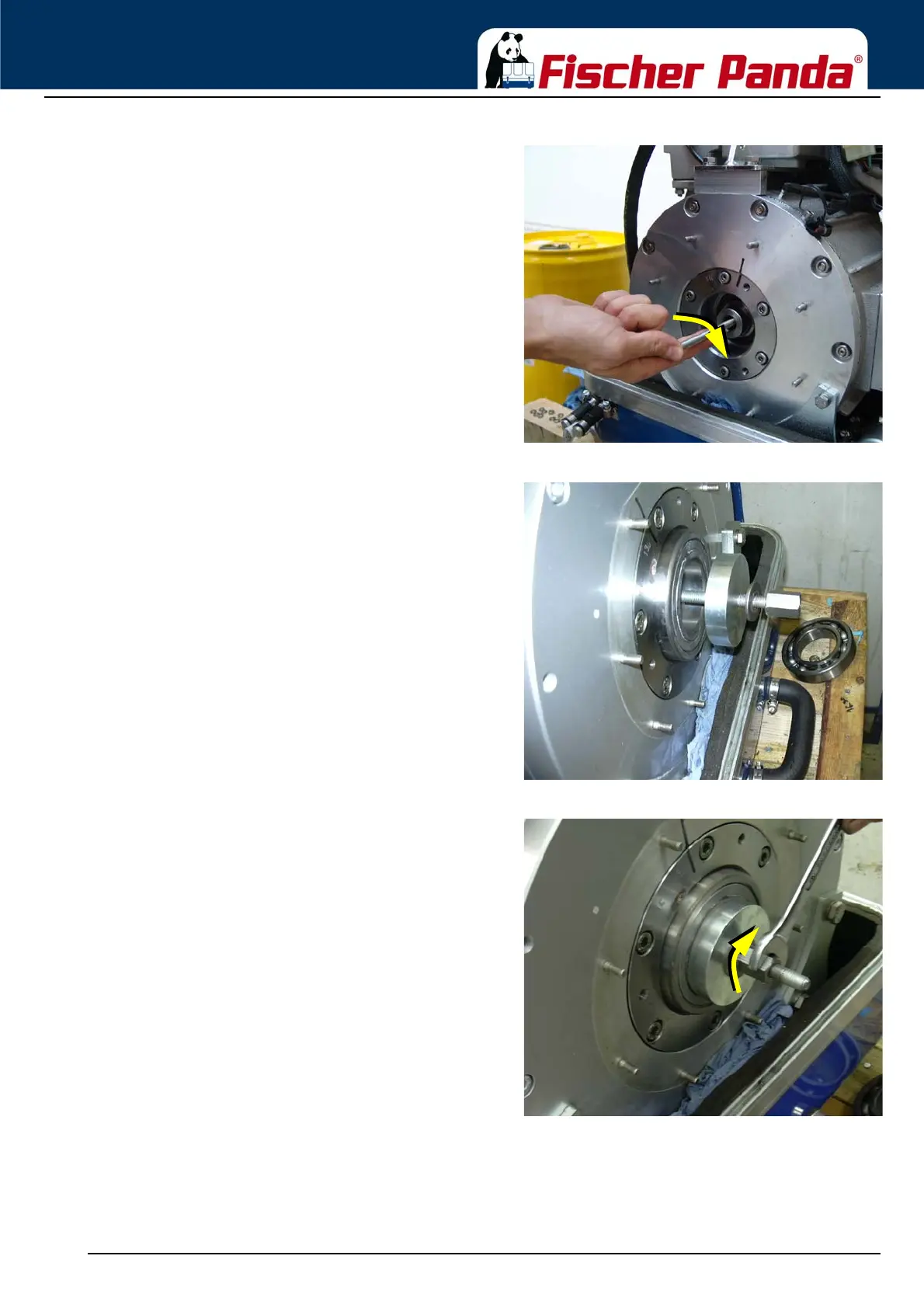

Fig. 7.10.1.3-5: Screw in thread rodScrew in thread rod into the thread hole of the generator
shaft as far as possible.
Sample Picture
Fig. 7.10.1.3-6: Put on ball bearingSlide on ball bearing, pressure ladle, grommet up to the
shaft, screw on long hexagon nut. Grease/Oil thread rod.
Guide ball bearing with one hand to avoid canting on the
shaft.
Sample Picture
Fig. 7.10.1.3-7: Press in ball bearingWith the other hand, put a screw wrench on the long nut,
fasten slowly.
Thus the ball bearing is pressed onto the shaft.
If necessary hold driving shaft with suitable wrench, to
prevent diesel engine from rotation simultaneously.
Press on ball bearing as far as possible.
(Tool Wrench SW13 and SW 22)
