Maintenance Instructions
Seite/Page 134 - Kaptitel/Chapter 7: Maintenance Instructions 18.12.15

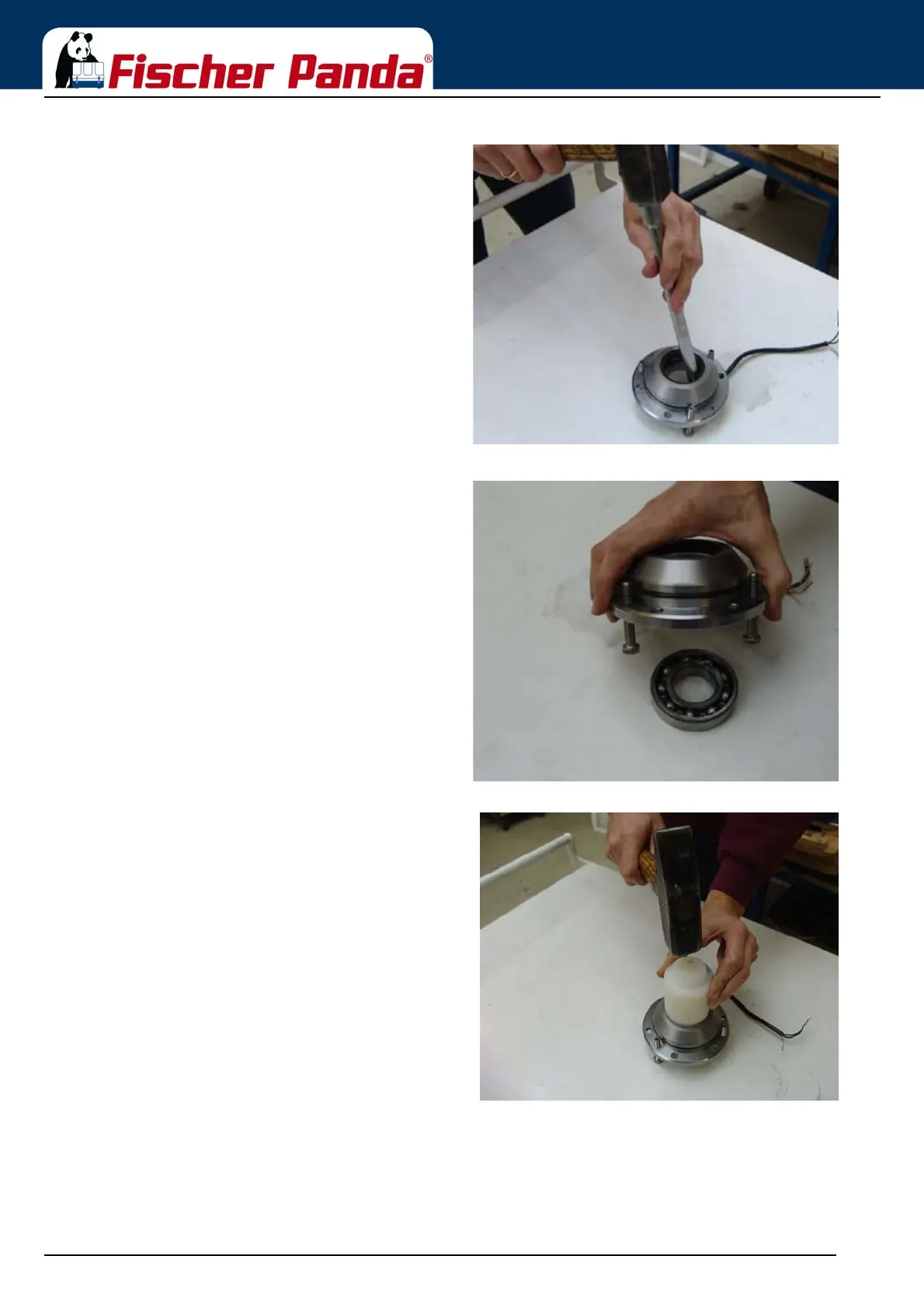

Fig. 7.12.2-8: Knocking out the ball bearingKnocking out the ball bearing
Put the bearing housing horizontally on e.g. 2 wood ledges,
the ball bearing pointing downwards. Alternatively, the
bearing housing can rest on the lifting screws.
Place an appropriate bolt (e.g. extension of a ratch) on the
inner bearing ring.
Knock the bearing out of the seat with several careful
hammer scales.
Thereby move the bolt after each scale to keep the bearing
from canting.
Fig. 7.12.2-9: Dismounted ball bearingDismounted ball bearing
Fig. 7.12.2-10: Dismount the shaft sealing ringDismount the shaft sealing ring:
We recommend our mandrel.
Put it in the sealing ring with the small end downwards.
Knock the sealing ring out of the seat with careful
hammer scales.
