Maintenance Instructions
18.12.15 Kapitel/Chapter 7: Maintenance Instructions - Seite/Page 135

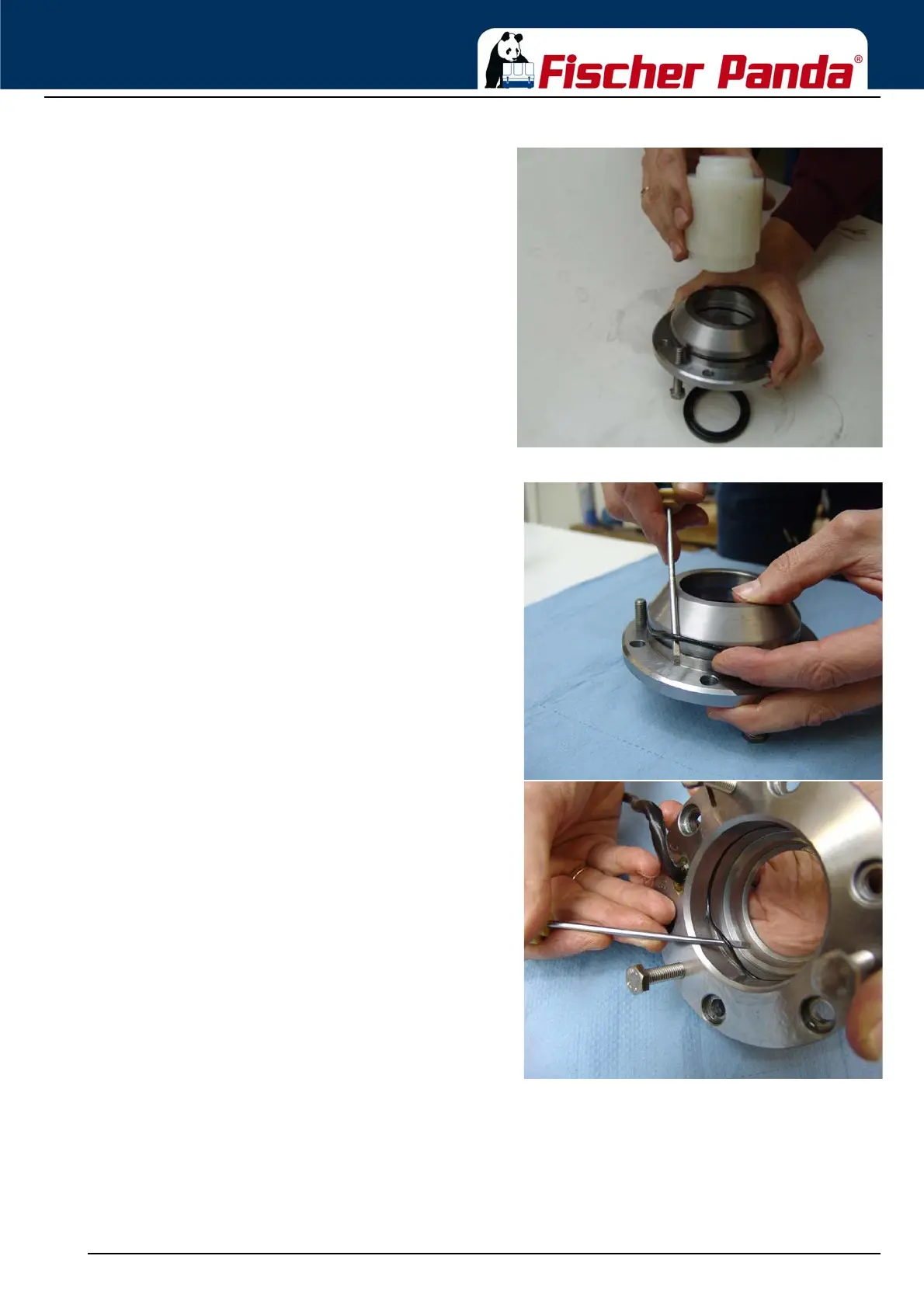

Fig. 7.12.2-11: Dismounted shaft sealing ringDismounted shaft sealing ring
Fig. 7.12.2-12: Remove o-ringsRemove O-rings from the bearing seat:
Take both O-rings out of the bearing seat.
