Maintenance Instructions
Seite/Page 136 - Kaptitel/Chapter 7: Maintenance Instructions 18.12.15

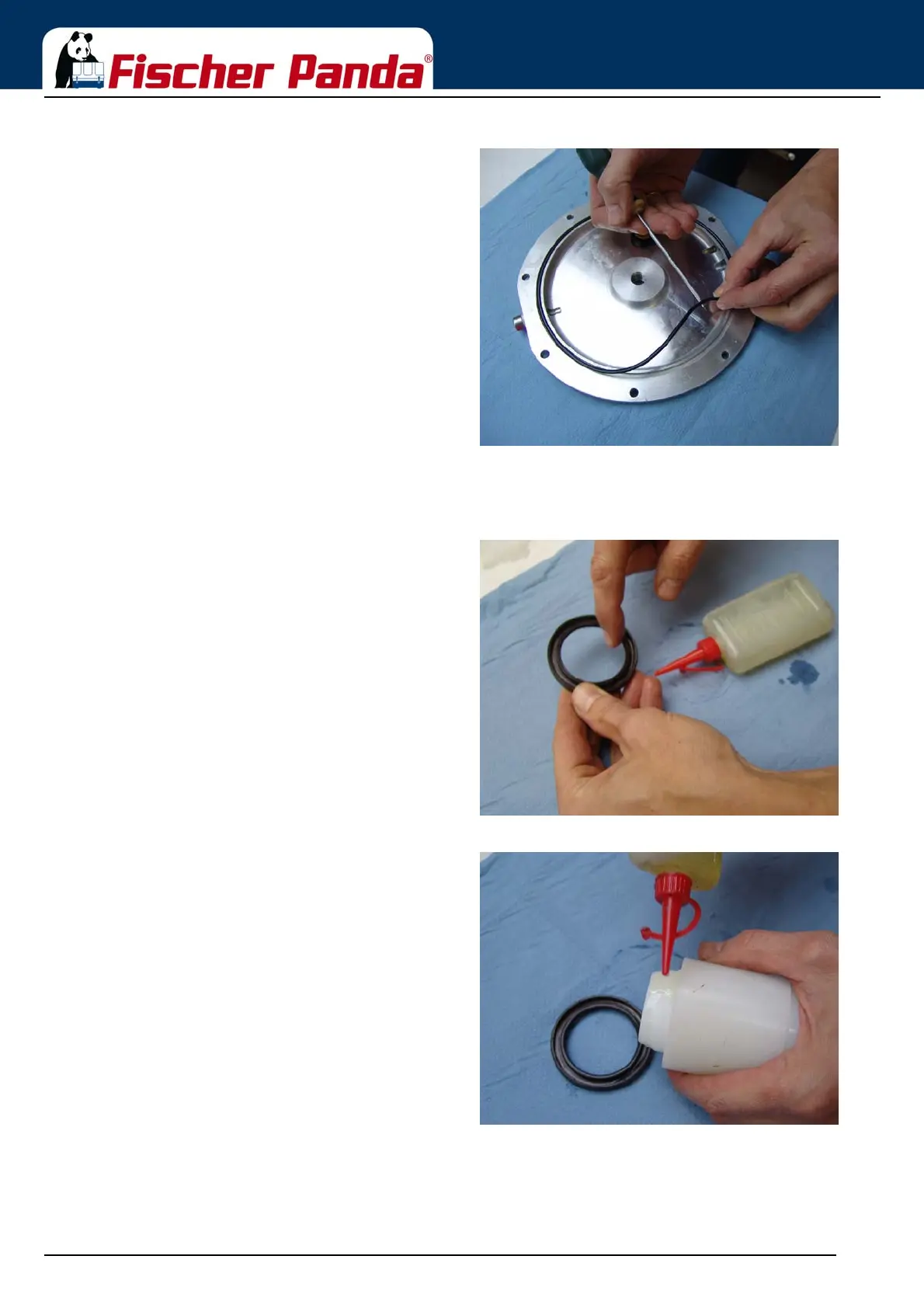

Fig. 7.12.2-13: Remove O-ringRemove O-ring from the oil cap.
Clean the bearing seat and the oil cap.
Slightly lubricate the new O-rings and mount them.
Fig. 7.12.2-14: Mounting the shaft sealing ringMounting the NEW shaft sealing ring:
Lubricate/grease the shaft sealing rings’ lip seal.
Fig. 7.12.2-15: Clean the mandrel, slightly grease/lubricate the
connecting surface and the chamber-bevel.
