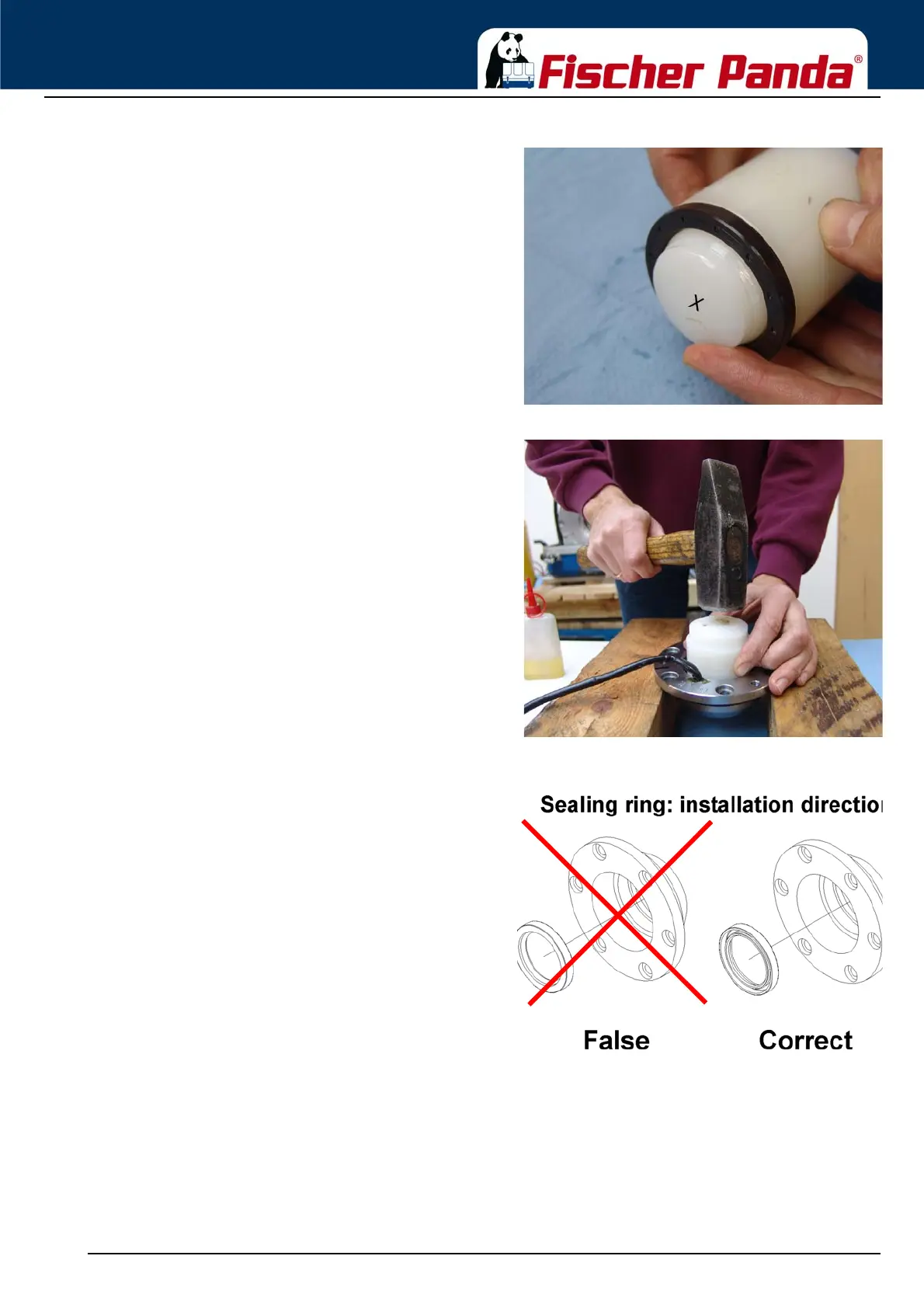

Fig. 7.12.2-16: Push the sealing ring on the mandrel, the open side
should point towards the handle. The side marked with
„X“ is to be used.
Fig. 7.12.2-17: Fitting the shaft sealing ringMounting of the shaft sealing ring
Fig. 7.12.2-18: shaft sealing ringCorrectly mounted sealing ring
