Maintenance Instructions
18.12.15 Kapitel/Chapter 7: Maintenance Instructions - Seite/Page 163

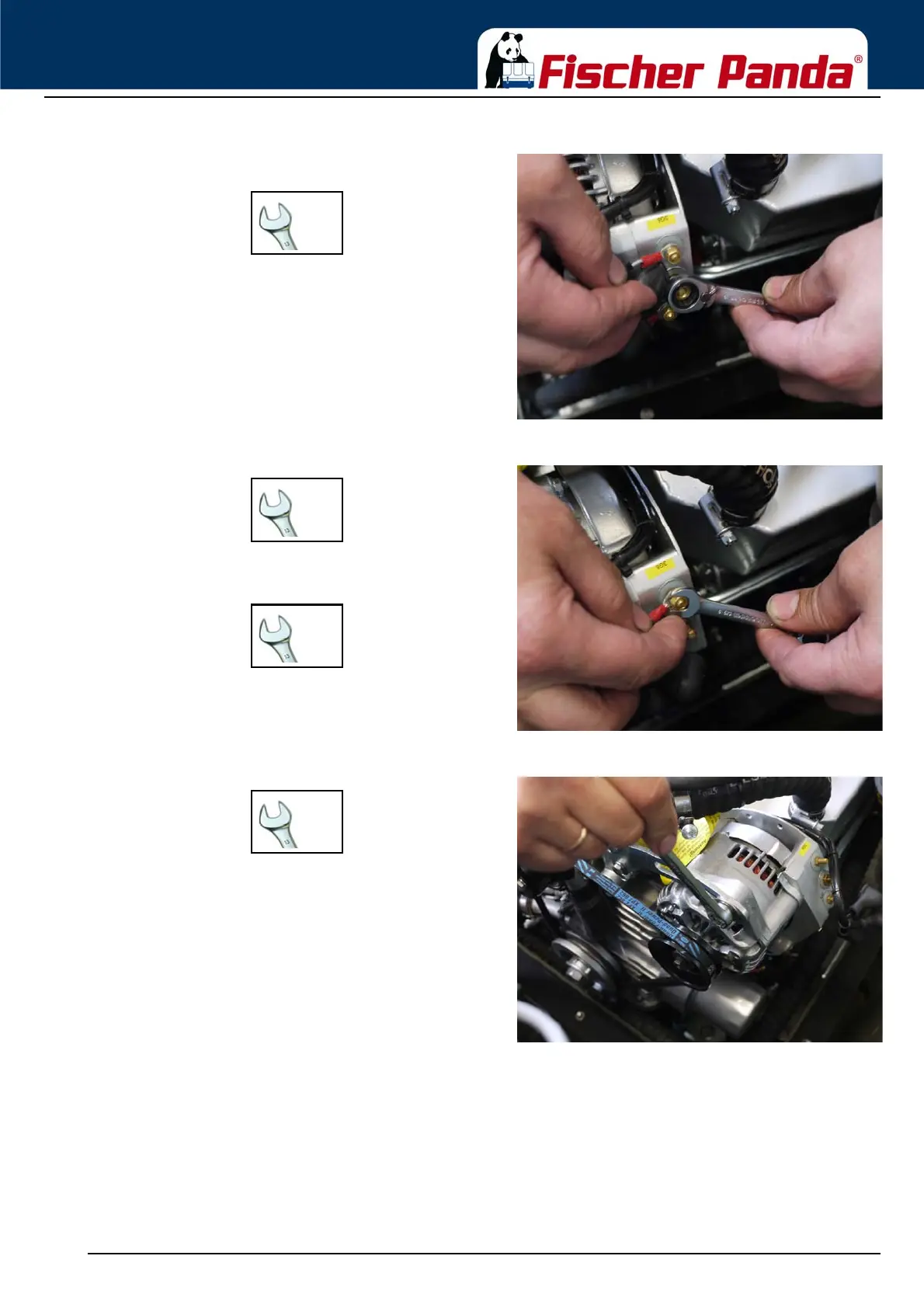

Fig. 7.18-3: DC alternator3. Pull off rubber caps on the electrical terminals.
4. Remove nut and washer of the 24 V DP+ terminal (red
cable) using a wrench with W.A.F. 10 mm.
Fig. 7.18-4: DC alternator5. Remove nut and washer of the exciter terminal (grey
cable) with a wrench with W.A.F. 8 mm.
6. Remove nut and washer of the charging voltage fault
terminal (green cable, bottom terminal) with a wrench with
W.A.F. 8 mm.
Fig. 7.18-5: DC alternator7. Loosen upper fixing screw of the DC alternator with a
wrench with W.A.F. 13 mm.
10
8
8
13
