Maintenance Instructions
Seite/Page 164 - Kaptitel/Chapter 7: Maintenance Instructions 18.12.15

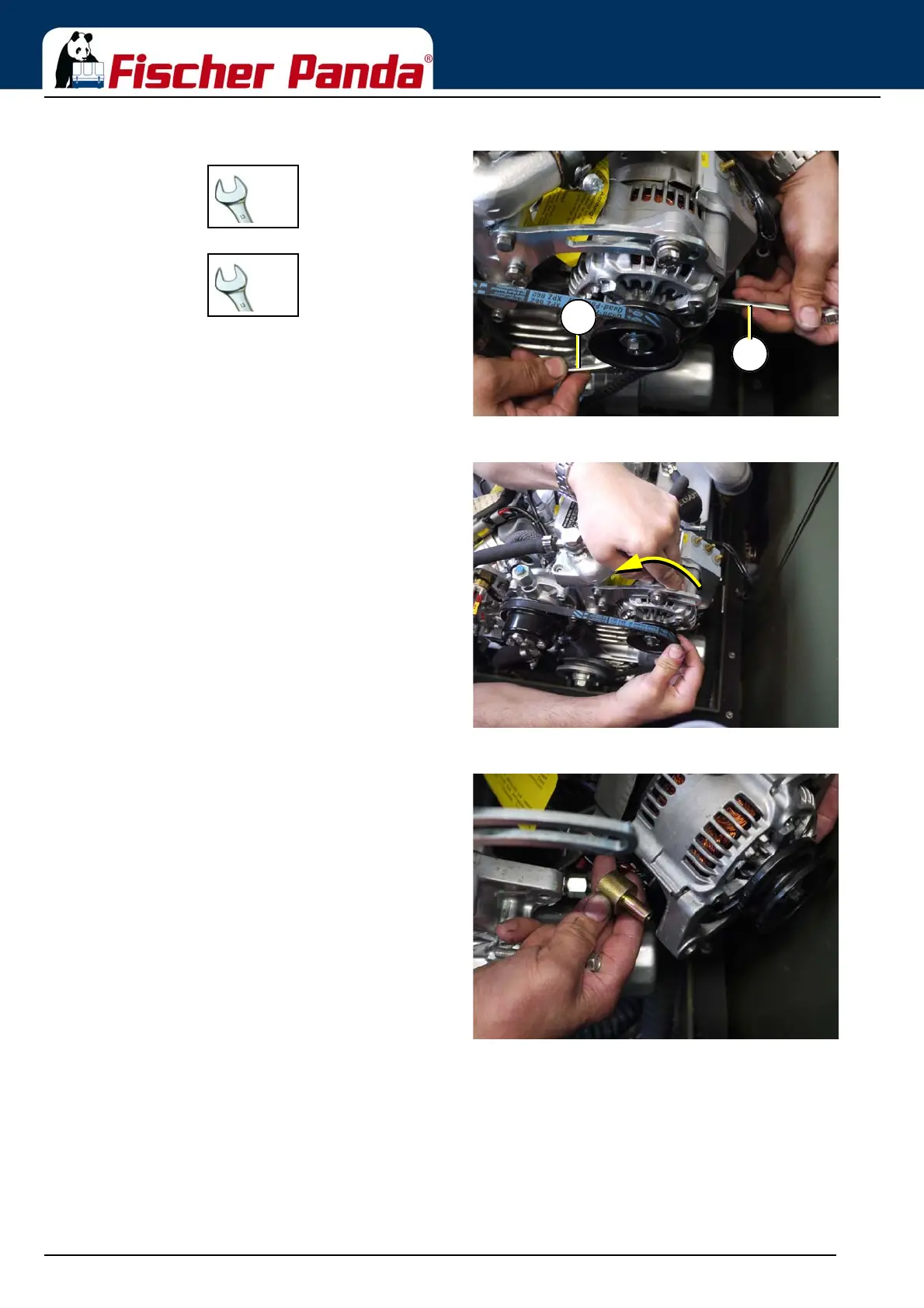

Fig. 7.18-6: DC alternator8. Loosen bottom fixing screw of the DC alternator with a
wrench with W.A.F. 12 mm (01).
9. Use a wrench with W.A.F. 12 mm (02) for the counter nut.
Fig. 7.18-7: DC alternator10.Push the DC alternator toward the thermostat housing.
11.Remove the V-belt.
12.Remove both fixing screws.
Fig. 7.18-8: DC alternator13.Remove spacer.
