19 PF7/PF7+ Peristaltic Filler with QC14 Pumphead User Manual
9 Pumphead mounting and removal
Isolate from power supply to secure the motor against accidental
start-up. Only qualified personnel can lift, transport, install,
operate, maintain and repair the pump.
The pumphead is held in position with two hex bolts located as shown below. To
remove the pumphead, use a 5 mm hex key to remove the bolts.
The hex bolts are tightened to the pump using 3.6-4 Nm of torque.

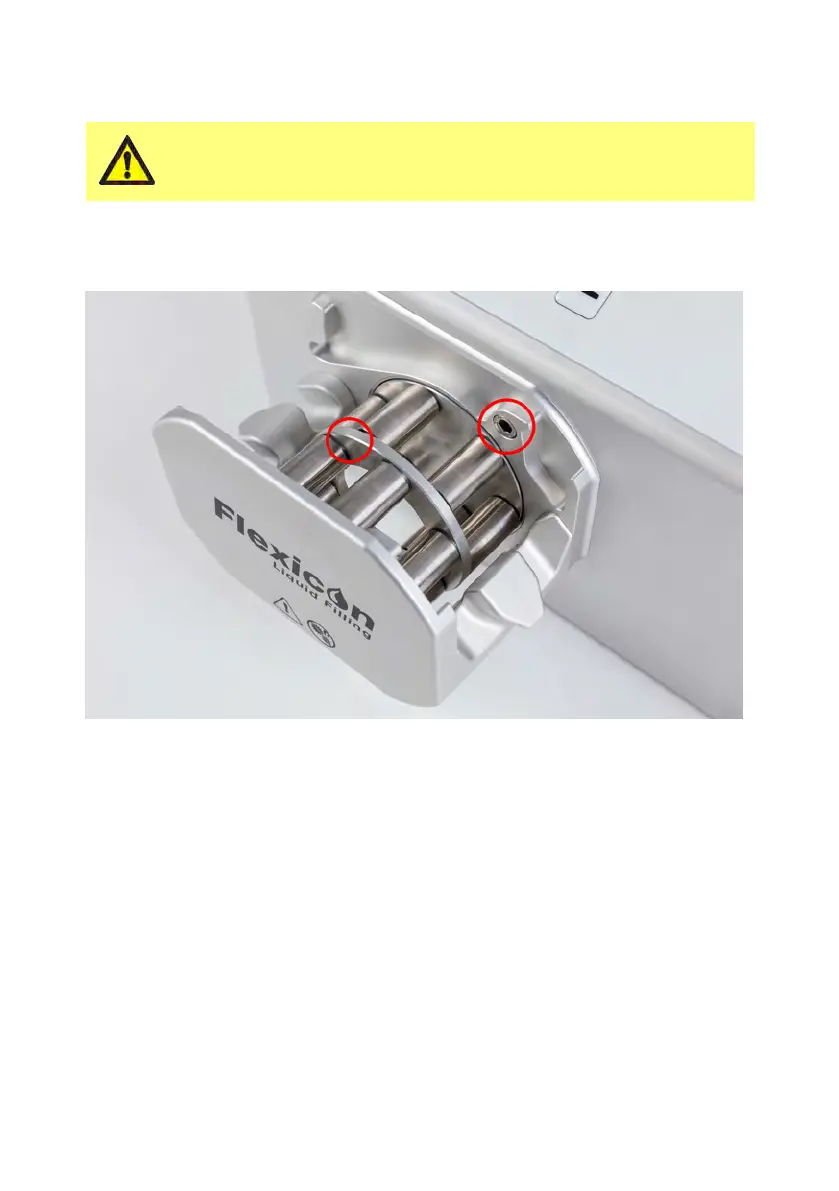

Figure 3 - Pumphead mounting and removal
