20.17 Fill tolerance
During calibration or weigh checking Fill tolerance defines an upper and lower limit
in relation to the target fill weight "Volume" on page 58
Configure the upper and lower tolerance limits independently to define an
acceptable fill.

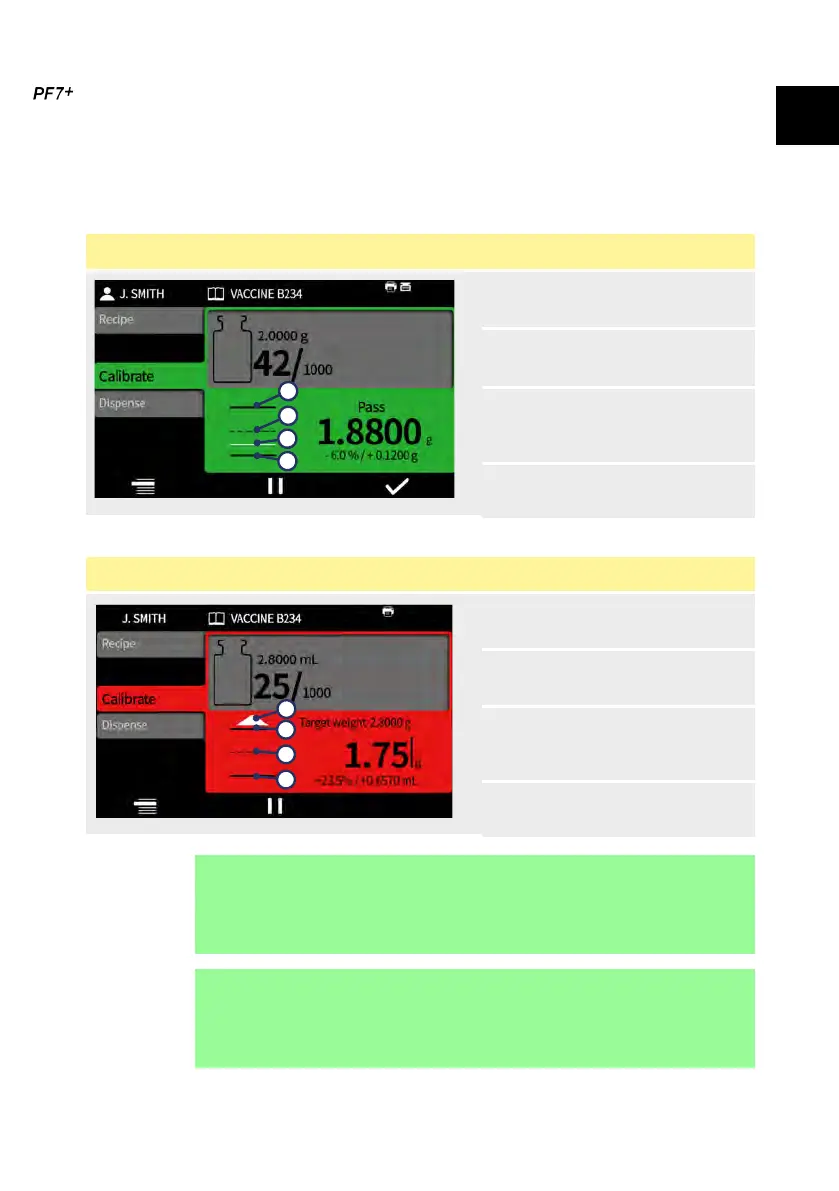

Screen colour indicates an acceptable fill.
Figure 21 - Acceptable fill—Green
1
4
3
2
1 - Upper fill tolerance
2 - Target (nominal) fill weight
3 - Acceptable measured fill
weight
4 - Lower fill tolerance
Displayed arrow above or below the diagram indicates the limit is exceeded.
Figure 22 - Unacceptable fill—Red
3
4
2
1
1 - Upper fill tolerance
2 - Target (nominal) fill weight
3 - Measured fill weight exceeds
upper limit arrow
4 - Lower fill tolerance
i
Denoted in batch report with:
• Within limits: True/False
i
An unacceptable fill can be removed from the batch if
"Remove from batch option" on page 113 is turned on and
selected.
