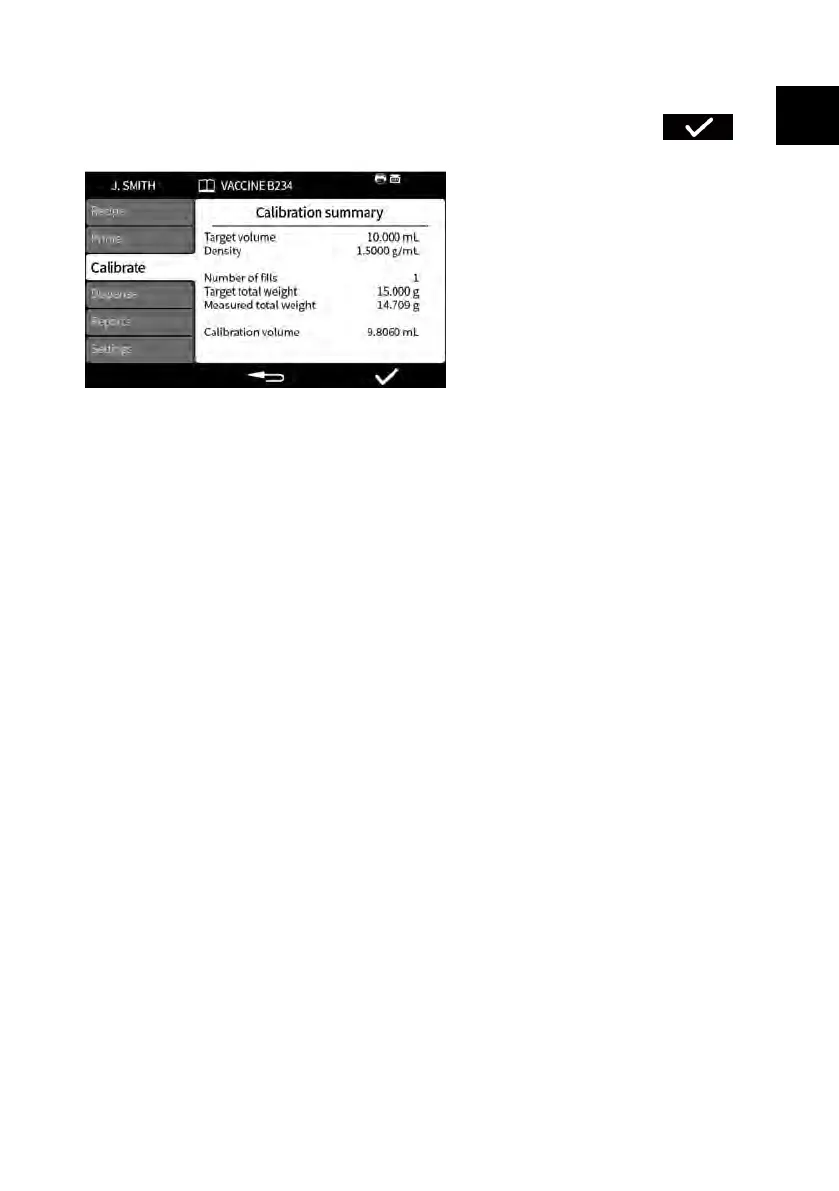

22.3.1 Calibration summary
A calibration summary will be displayed. If the values are correct, press to
complete the calibration process.
The following are added to the report, for each calibration since the last recipe
change or since the pump was powered on:
• Data/time of calibration
• Calibration volume
• Active username when calibration was done
PF7/PF7+ Peristaltic Filler with QC14 Pumphead User Manual 77
